TXH 120 Series
Manufacturer: Traco Power
Beta
⌘K

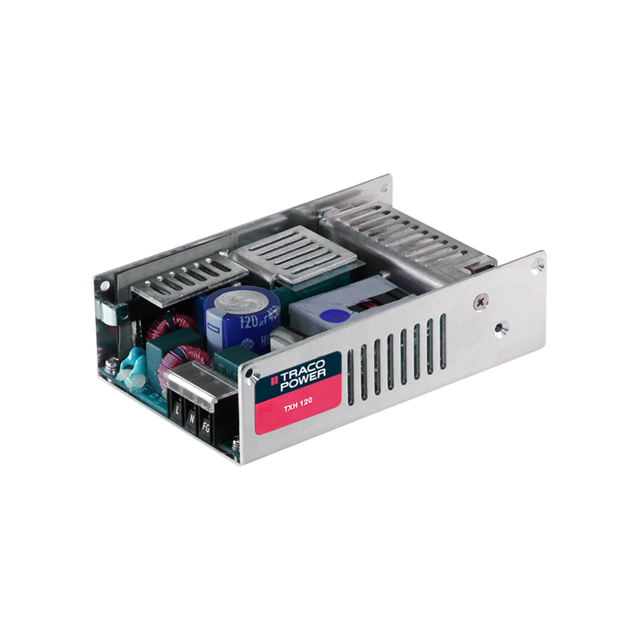

AC/DC CONVERTER 48V 120W
| Part | Minimum Load Required | Voltage - Output 1 | Type | Approval Agency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Voltage - Input [Min] | Voltage - Input [Max] | Applications | Features | Power (Watts) | Mounting Type | Number of Outputs | Current - Output 1 | Efficiency | Accessory Type | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 48 V | Enclosed | CB CE cURus | 82 mm | 136.9 mm | 3.23 in | 5.39 " | 1.5 in | 38.1 mm | 70 °C | -25 °C | 4000 V | 90 VAC 120 VDC | 264 VAC 370 VDC | ITE (Commercial) | Adjustable Output PFC Universal Input | 120 W | Chassis Mount | 1 | 2.5 A | 92 % | |||

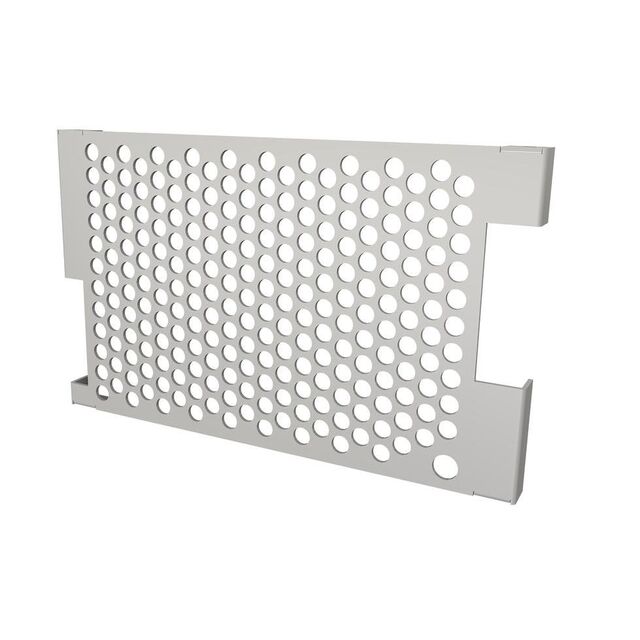

 Traco Power | Cover | TXH 120W Power Supply |
