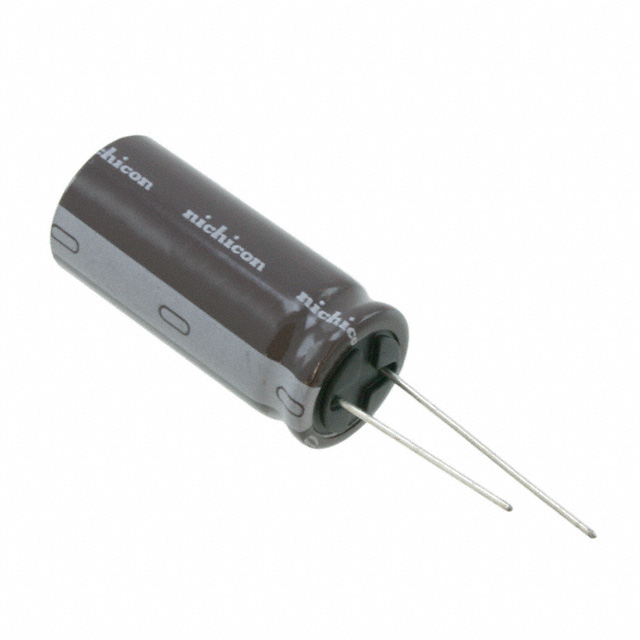

UPZ Series

Manufacturer: Nichicon

Catalog

ELECTROLYTIC CAPACITOR, MINIATURE, 39 ΜF, 450 V, ± 20%, PC PIN, 1000 HOURS @ 85°C, POLAR

Part	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Ripple Current @ Low Frequency	Tolerance	Capacitance	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Polarization	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Nichicon UPZ2W390MHD	0.197 "	5 mm	0.492 in	12.5 mm	450 V	320 mA	20 %	39 µF	Through Hole	General Purpose	105 ░C	-25 °C	Can Radial	2000 Hrs	1.476 in	37.5 mm
Nichicon UPZW6151MHD	0.295 in	7.5 mm	0.709 in	18 mm	420 V	710 mA	20 %	150 µF	Through Hole	General Purpose	105 ░C	-25 °C	Can Radial	2000 Hrs	1.654 in	42 mm	1.065 A
Nichicon UPZ2W680MHD	0.295 in	7.5 mm	0.63 in	16 mm	450 V	490 mA	20 %	68 µF	Through Hole	General Purpose	105 ░C	-25 °C	Can Radial	2000 Hrs	1.476 in	37.5 mm
Nichicon UPZ2W101MHD	0.295 in	7.5 mm	0.709 in	18 mm	450 V	650 mA	20 %	100 µF	Through Hole	General Purpose	105 ░C	-25 °C	Can Radial	2000 Hrs	1.476 in	37.5 mm	975 mA
Nichicon UPZ2E221MNY9	0.197 "	5 mm	0.492 in	12.5 mm	250 V	1.14 A	20 %	220 µF	Through Hole	General Purpose	105 ░C	-25 °C	Can Radial	2000 Hrs			1.596 A	Polar	2.047 in	52 mm
Nichicon UPZ2D271MHD	0.295 in	7.5 mm	0.63 in	16 mm	200 VDC	870 mA	20 %	270 µF	Through Hole	General Purpose	105 ░C	-25 °C	Can Radial	2000 Hrs	1.319 in		1.218 A	Polar			33.5 mm
Nichicon UPZ2D151MND9	0.197 "	5 mm	0.394 in	10 mm	200 VDC	830 mA	20 %	150 µF	Through Hole	General Purpose	105 ░C	-25 °C	Can Radial	2000 Hrs			1.162 A	Polar	2.047 in	52 mm
