HR34B Series

Catalog

STANDARD CIRCULAR CONNECTOR 10P R/A SOLDER PLUG FEMALE CONT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Fastening Type	Features	Orientation	Ingress Protection	Shell Material	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Number of Positions	Insert Material	Primary Material	Material Flammability Rating	Voltage Rating	Contact Finish - Mating	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Applications	Shell Size - Insert [custom]	Shielding	Connector Type	Color	Backshell Material, Plating	Mounting Type	Contact Type	Type	Contact Shape	Housing Color	Note	Orientation [x]

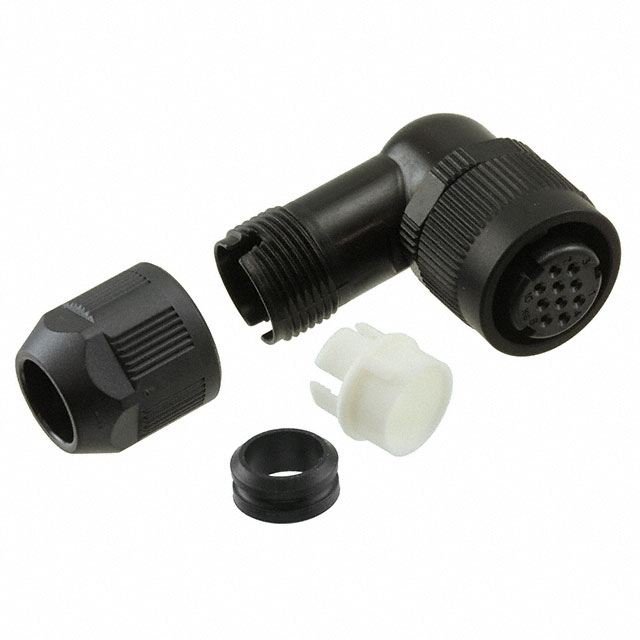

Hirose Electric Co Ltd HR34B-12WLPK-10S	-25 °C	125 °C	3 A	Bayonet Lock	Backshell Coupling Nut Rotatable Strain Relief	N (Normal)	IP67F IP68F	Zinc Alloy	Phosphor Bronze	8 µin	0.203 µm	Chrome	10	Polyphenylene Sulfide (PPS)	Metal	UL94 V-0	200 VAC 250 V	Gold	0.315 "	9 mm	0.354 in	8 mm	Telecommunications	12	Unshielded	Plug Female Sockets	Black	Aluminum Alloy Black Chromate	Free Hanging (In-Line) Right Angle

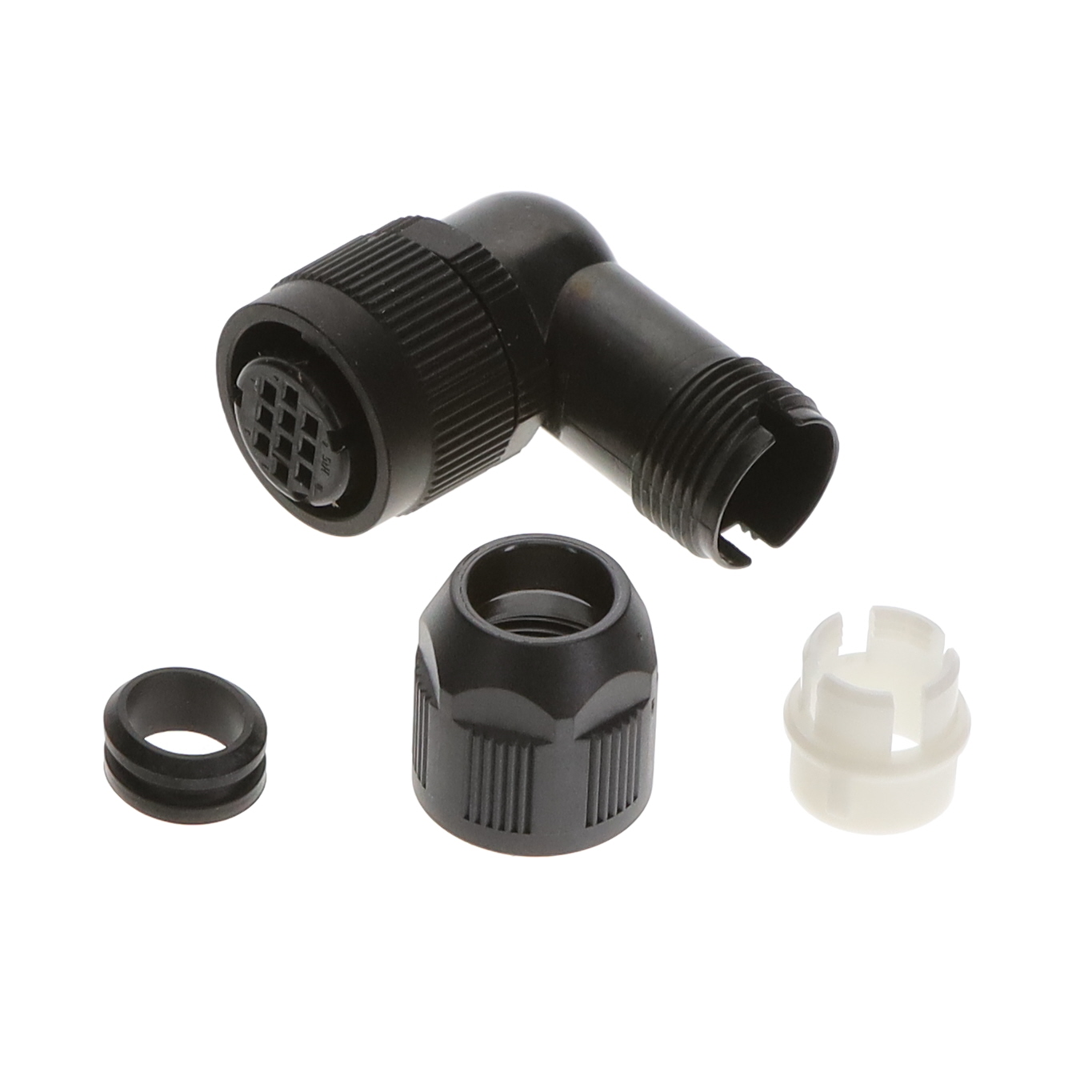

Hirose Electric Co Ltd HR34B-12WLPK-10SC	-25 °C	125 °C		Bayonet Lock	Backshell Coupling Nut Rotatable Strain Relief	N (Normal)	IP67/IP68	Zinc Alloy				Chrome	10	Polyphenylene Sulfide (PPS)		UL94 V-0								12	Unshielded	Plug Housing			Free Hanging (In-Line) Right Angle	Crimp	For Female Sockets	Circular	Black	Contacts Not Included

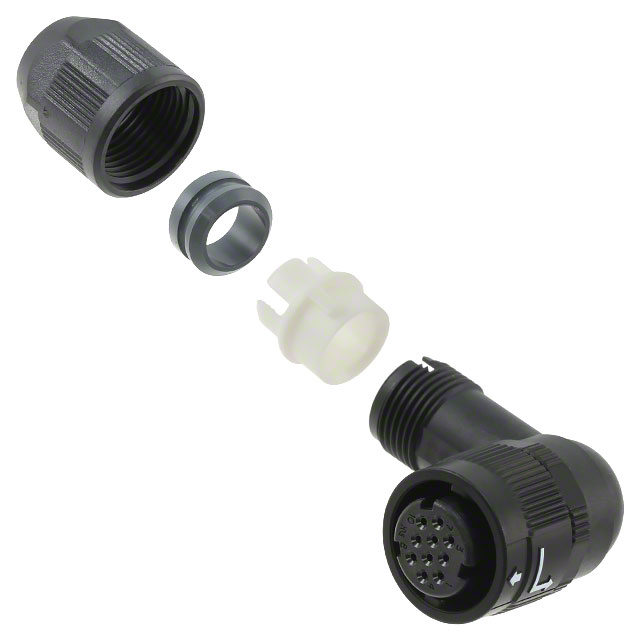

Hirose Electric Co Ltd HR34B-12WLPE-10S	-25 °C	125 °C	3 A	Bayonet Lock	Backshell Coupling Nut Rotatable Strain Relief	N (Normal)	IP67F IP68F	Zinc Alloy	Phosphor Bronze	8 µin	0.203 µm	Chrome	10	Polyphenylene Sulfide (PPS)	Metal	UL94 V-0	200 VAC 250 V	Gold	0.256 in 6.5 mm		0.287 " 7.3 mm		Telecommunications	12	Unshielded	Plug Female Sockets	Black	Nylon Polyamide (PA)	Free Hanging (In-Line) Right Angle

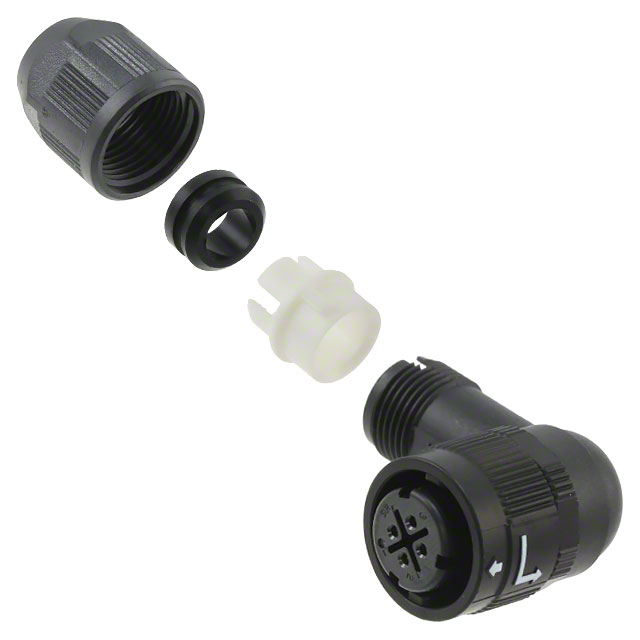

Hirose Electric Co Ltd HR34B-12WLPD-4S	-25 °C	125 °C	5 A	Bayonet Lock	Backshell Coupling Nut Rotatable Strain Relief	N (Normal)	IP67F IP68F	Zinc Alloy	Copper Alloy	78.7 µin	2 µm	Chrome	4	Polyphenylene Sulfide (PPS)	Metal	UL94 V-0		Silver	0.224 "	6.5 mm	0.256 in	5.7 mm	Telecommunications	12	Unshielded	Plug Female Sockets	Black	Nylon Polyamide (PA)	Free Hanging (In-Line) Right Angle
Hirose Electric Co Ltd HR34B-12WPE-4S-X	-25 °C	125 °C	5 A	Bayonet Lock	Backshell Coupling Nut Strain Relief		IP67F IP68F	Zinc Alloy	Copper Alloy	78.7 µin	2 µm	Chrome	4	Polyphenylene Sulfide (PPS)	Metal	UL94 V-0		Silver	0.256 in 6.5 mm		0.287 " 7.3 mm		Telecommunications	12	Unshielded	Plug Female Sockets	Black	Nylon Polyamide (PA)	Free Hanging (In-Line)						X
Hirose Electric Co Ltd HR34B-12WLPA-10SC	-25 °C	125 °C		Bayonet Lock	Backshell Coupling Nut Rotatable Strain Relief	N (Normal)	IP67/IP68	Zinc Alloy				Chrome	10	Polyphenylene Sulfide (PPS)		UL94 V-0								12	Unshielded	Plug Housing			Free Hanging (In-Line) Right Angle	Crimp	For Female Sockets	Circular	Black	Contacts Not Included

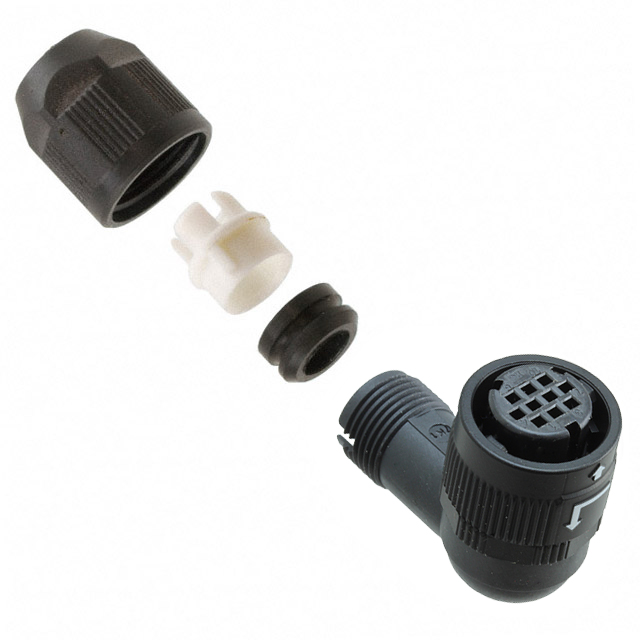

Hirose Electric Co Ltd HR34B-12WLPD-10SC	-25 °C	125 °C		Bayonet Lock	Backshell Coupling Nut Rotatable Strain Relief	N (Normal)	IP67/IP68	Zinc Alloy				Chrome	10	Polyphenylene Sulfide (PPS)		UL94 V-0								12	Unshielded	Plug Housing			Free Hanging (In-Line) Right Angle	Crimp	For Female Sockets	Circular	Black	Contacts Not Included

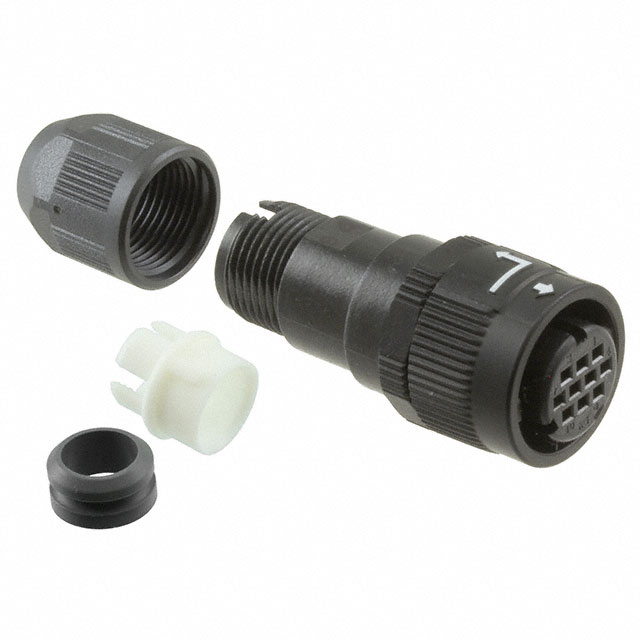

Hirose Electric Co Ltd HR34B-12WPB-10SC	-25 °C	125 °C		Bayonet Lock	Backshell Coupling Nut Strain Relief	N (Normal)	IP67/IP68	Zinc Alloy				Chrome	10	Polyphenylene Sulfide (PPS)		UL94 V-0								12	Unshielded	Plug Housing			Free Hanging (In-Line)	Crimp	For Female Sockets	Circular	Black	Contacts Not Included
Hirose Electric Co Ltd HR34B-12WLPE-4S-X	-25 °C	125 °C	5 A	Bayonet Lock	Backshell Coupling Nut Rotatable Strain Relief		IP67F IP68F	Zinc Alloy	Copper Alloy	78.7 µin	2 µm	Chrome	4	Polyphenylene Sulfide (PPS)	Metal	UL94 V-0		Silver	0.256 in 6.5 mm		0.287 " 7.3 mm		Telecommunications	12	Unshielded	Plug Female Sockets	Black	Nylon Polyamide (PA)	Free Hanging (In-Line) Right Angle						X

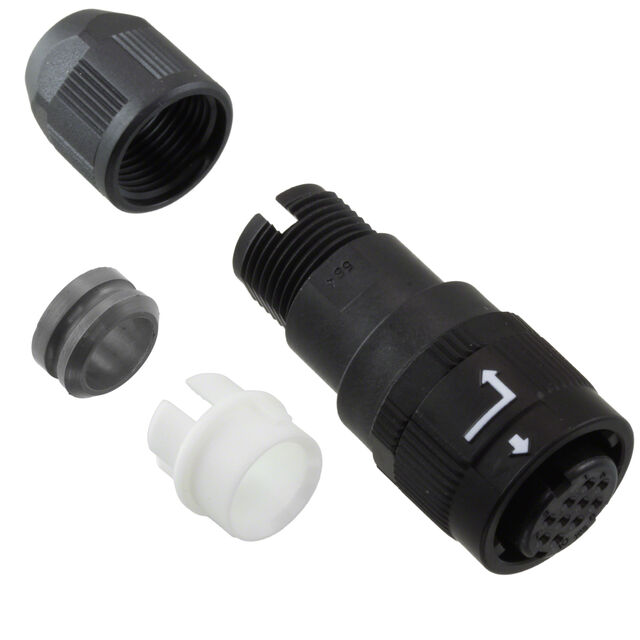

Hirose Electric Co Ltd HR34B-12WPE-10S	-25 °C	125 °C	3 A	Bayonet Lock	Backshell Coupling Nut Strain Relief	N (Normal)	IP67F IP68F	Zinc Alloy	Phosphor Bronze	8 µin	0.203 µm	Chrome	10	Polyphenylene Sulfide (PPS)	Metal	UL94 V-0	200 VAC 250 V	Gold	0.256 in 6.5 mm		0.287 " 7.3 mm		Telecommunications	12	Unshielded	Plug Female Sockets	Black	Nylon Polyamide (PA)	Free Hanging (In-Line)
