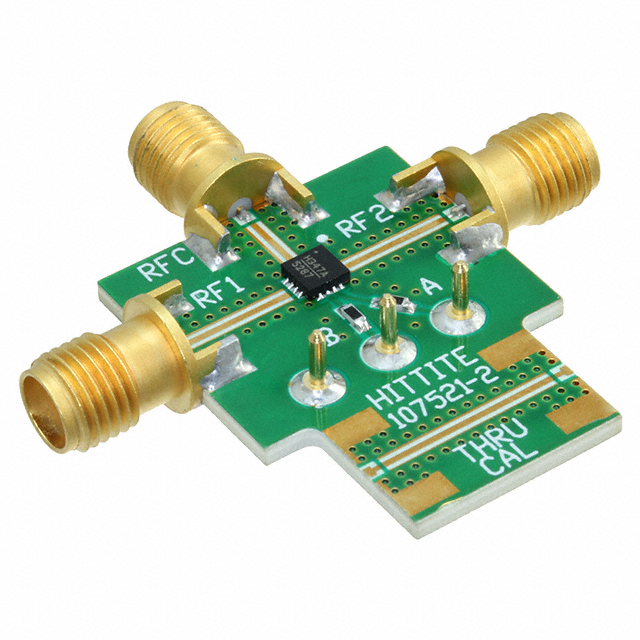

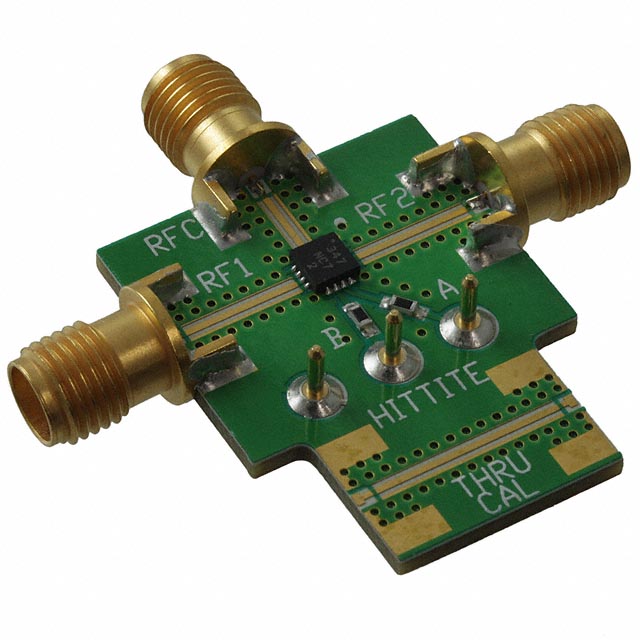

GaAs, SPDT Switch, Nonreflective, 0.1 GHz to 20 GHz
Key Features
• Broadband frequency range: 0.1 GHz to 20 GHz
• Nonreflective, 50 Ω design
• Low insertion loss: 2.0 dB to 20 GHz
• High isolation: 40 dB to 20 GHz
• High input linearityInput P1dB: 29 dBm typicalInput IP3: 45 dBm typical
• Input P1dB: 29 dBm typical
• Input IP3: 45 dBm typical
• High power handling27 dBm through path25 dBm terminated path
• 27 dBm through path
• 25 dBm terminated path
• 10-pad, 1.22 mm × 0.85 mm × 0.1 mm, CHIP
Description
AI
The HMC347 is a broadband nonreflective GaAs MESFET SPDT MMIC chip and a broadband high isolation nonreflective GaAs MESFET SPDT switch in an 8-lead glass or metal (hermetic) surface-mount package or a low cost leadless QFN surface-mount plastic package. Covering DC to 20 GHz, the switch offers high isolation and low insertion loss. The switch features more than 50 dB isolation at lower frequencies and more than 40 dB at higher frequencies due to the implementation of on-chip via hole structures. The switch operates using two negative control voltage logic lines of −5/0 V, requires no Vee and no bias supply, and has no current consumption. The switch operates down to DC. The chip features coplanar I/Os that allow 100% RF testing prior to delivery to the customer. This SPDT is a good replacement for the HMC132G7 SPDT.ApplicationsBasestation and telecom infrastructureFiber optics and broadband telecomMilitary and spaceMicrowave radios, radar, ECM, and VSATTest instrumentation
