CL-Standard Series

Catalog

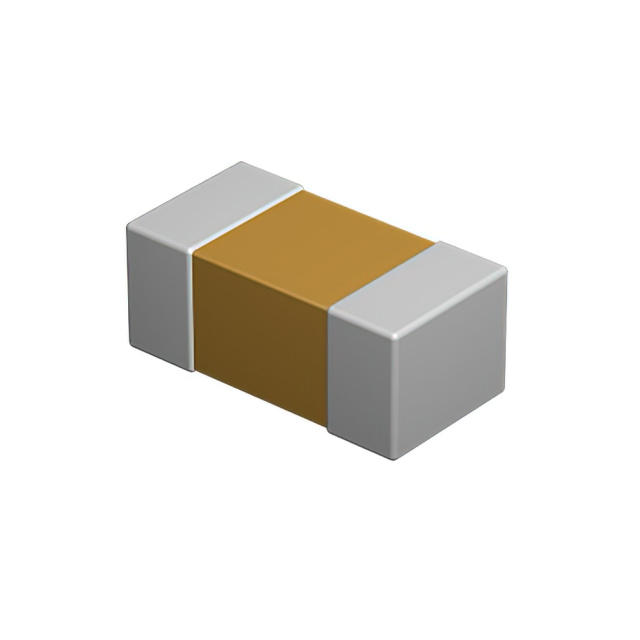

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT 2.2NF+/-5% 50V X7R 2 0805

...

Part	Package / Case	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Temperature Coefficient	Thickness (Max) [Max]	Thickness (Max) [Max]	Voltage - Rated	Size / Dimension [y]	Package / Case	Tolerance [Max]	Tolerance [Min]	Thickness (Max)	Thickness (Max) [Max] [z]
Samsung Electro-Mechanics CL21B222JBANNNC	0805	MLCC Surface Mount	2 mm	1.25 mm	0.049 "	0.079 in	5 %	General Purpose	-55 C	125 °C	2200 pF	X7R	0.75 mm	0.03 in	50 VDC
Samsung Electro-Mechanics CL10X475KO8NRWC	0603	MLCC Surface Mount	1.6 mm		0.031 in	0.063 "	10 %	General Purpose	-55 C	105 ░C	4.7 µF	X6S	1 mm	0.039 in	16 V	0.8 mm	1608 Metric
Samsung Electro-Mechanics CL05F104ZO5NNND	0402 (1005 Metric)	MLCC Surface Mount	1 mm	0.5 mm	0.02 in	0.039 "		General Purpose	-30 ░C	85 °C	100000 pF	Y5V (F)		0.022 in	16 V			80 %	-20 %	0.55 mm
Samsung Electro-Mechanics CL10C221JC8NNWC	0603	MLCC Surface Mount	1.6 mm		0.031 in	0.063 "	5 %	General Purpose	-55 C	125 °C	220 pF	C0G NP0			100 V	0.8 mm	1608 Metric			0.9 mm	0.035 in
Samsung Electro-Mechanics CL10C220GB8NNWC	0603	MLCC Surface Mount	1.6 mm		0.031 in	0.063 "	2 %	General Purpose	-55 C	125 °C	22 pF	C0G NP0			50 VDC	0.8 mm	1608 Metric			0.9 mm	0.035 in
Samsung Electro-Mechanics CL10A474KB8NNNC	0603	MLCC Surface Mount	1.6 mm		0.031 in	0.063 "	10 %	General Purpose	-55 C	85 °C	0.47 µF	X5R			50 VDC	0.8 mm	1608 Metric			0.9 mm	0.035 in
Samsung Electro-Mechanics CL03X104KO3NNWC	0201	MLCC Surface Mount	0.024 in	0.012 in	0.3 mm	0.6 mm	10 %	General Purpose	-55 C	105 ░C	100000 pF	X6S		0.013 "	16 V		0603 Metric			0.33 mm
Samsung Electro-Mechanics CL03A105MQ3CSWC	0201	MLCC Surface Mount	0.024 in	0.012 in	0.3 mm	0.6 mm	20 %	General Purpose	-55 C	85 °C	1 µF	X5R		0.013 "	6.3 VDC		0603 Metric			0.33 mm
Samsung Electro-Mechanics CL10A105KA8NNWC	0603	MLCC Surface Mount	1.6 mm		0.031 in	0.063 "	10 %	General Purpose	-55 C	85 °C	1 µF	X5R			25 VDC	0.8 mm	1608 Metric			0.9 mm	0.035 in
Samsung Electro-Mechanics CL32X107MQVNNNE	1210	MLCC Surface Mount	3.2 mm	2.5 mm	0.098 in	0.126 "	20 %	General Purpose	-55 C	105 ░C	100 µF	X6S	2.8 mm	0.11 in	6.3 VDC		3225 Metric
