R41-B Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
CONN HSD 4+0 REVERSE VERTICAL TY
| Part | Dielectric Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Contact Termination | Connector Type | Housing Color | Center Contact Material | Connector Style | Mounting Type | Features | Frequency - Max [Max] | Impedance | Shield Termination | Fastening Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | Liquid Crystal Polymer (LCP) | 100 V | -40 C | 105 ░C | 25 | Solder | Plug Male Pin | Curry | Copper Alloy | Fakra HSD® Quadraxial | Through Hole | Board Guide Code K | 2 GHz | 100 Ohms | Solder | Latch Lock | 1 |

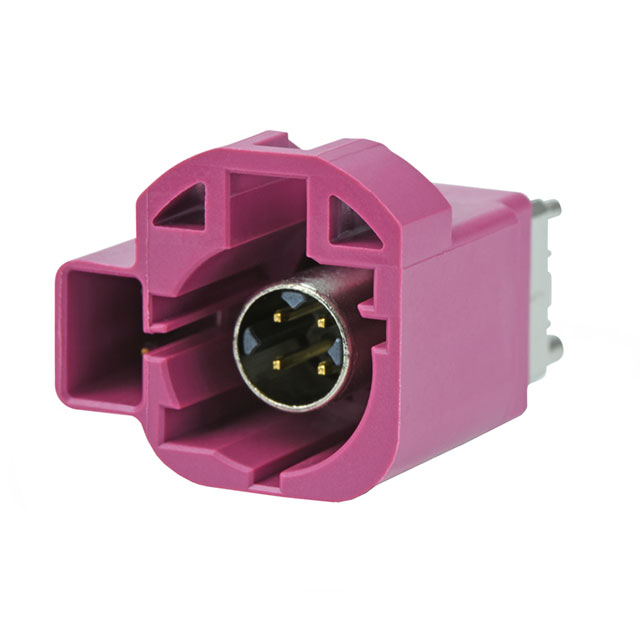

 NMB TECHNOLOGIES | Liquid Crystal Polymer (LCP) | 100 V | -40 C | 105 ░C | 25 | Solder | Plug Male Pin | Heather Violet | Copper Alloy | Fakra HSD® Quadraxial | Through Hole | Board Guide Code H | 2 GHz | 100 Ohms | Solder | Latch Lock | 1 |
