ULD Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 100V 22UF 20%

Part	Package / Case	Polarization	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Ripple Current @ High Frequency	Tolerance	Capacitance	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max]

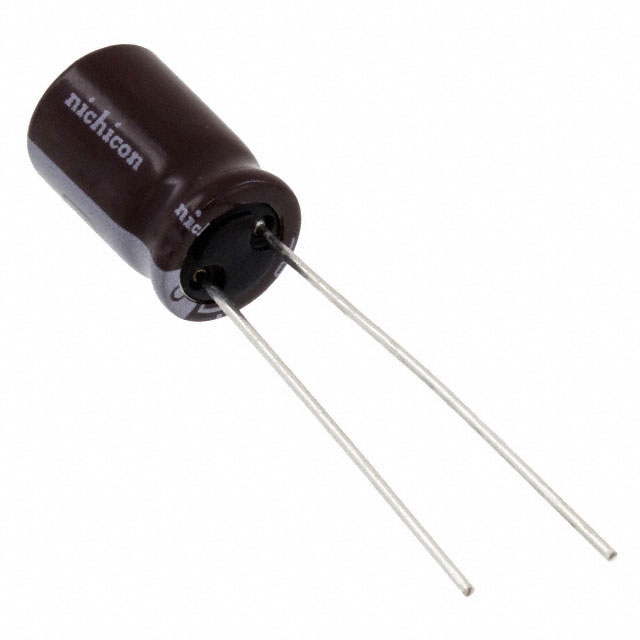

Nichicon ULD2A220MPD1TD	Can Radial	Polar	10000 Hrs	0.138 in	3.5 mm	-40 C	105 ░C	Through Hole	230 mA	20 %	22 µF	General Purpose	0.315 in	8 mm	100 V	0.531 in	13.5 mm	126.5 mA
Nichicon ULD2C150MPD1TD	Can Radial	Polar	15000 Hrs	0.138 in	3.5 mm	-40 C	105 ░C	Through Hole	174.8 mA	20 %	15 µF	General Purpose	0.315 in	8 mm	160 V	0.531 in	13.5 mm	92 mA
Nichicon ULD1H101MPD1TA	Can Radial	Polar	10000 Hrs	0.138 in	3.5 mm	-40 C	105 ░C	Through Hole	270 mA	20 %	100 µF	General Purpose	0.315 in	8 mm	50 VDC	0.531 in	13.5 mm	189 mA
Nichicon ULD2E5R6MPD1TD	Can Radial	Polar	15000 Hrs	0.138 in	3.5 mm	-40 C	105 ░C	Through Hole	124 mA	20 %	5.6 µF	General Purpose	0.315 in	8 mm	250 V	0.531 in	13.5 mm	62 mA

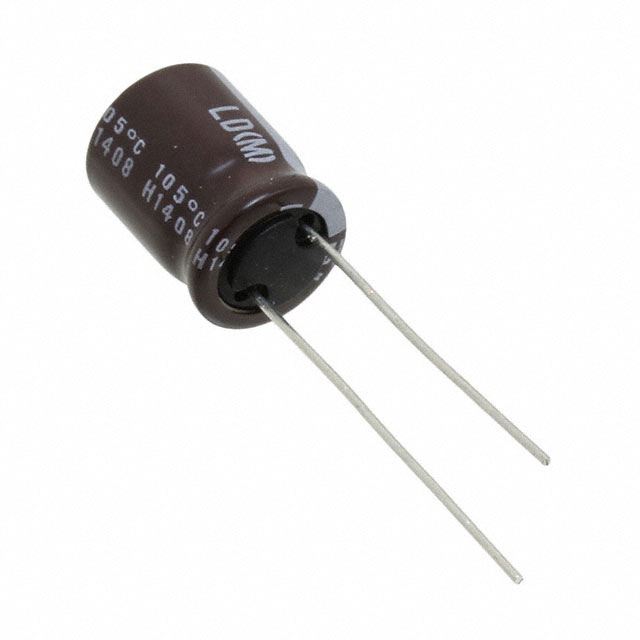

Nichicon ULD2G3R9MPD	Can Radial	Polar	15000 Hrs	0.197 "	5 mm	-40 C	105 ░C	Through Hole	104 mA	20 %	3.9 µF	General Purpose	0.394 in	10 mm	400 V	0.571 "	14.5 mm	57 mA
Nichicon ULD2E5R6MPD	Can Radial	Polar	15000 Hrs	0.138 in	3.5 mm	-40 C	105 ░C	Through Hole	124 mA	20 %	5.6 µF	General Purpose	0.315 in	8 mm	250 V	0.531 in	13.5 mm	62 mA
Nichicon ULD1J470MPD1TA	Can Radial	Polar	10000 Hrs	0.138 in	3.5 mm	-40 C	105 ░C	Through Hole	240 mA	20 %	47 µF	General Purpose	0.315 in	8 mm	63 V	0.531 in	13.5 mm	168 mA

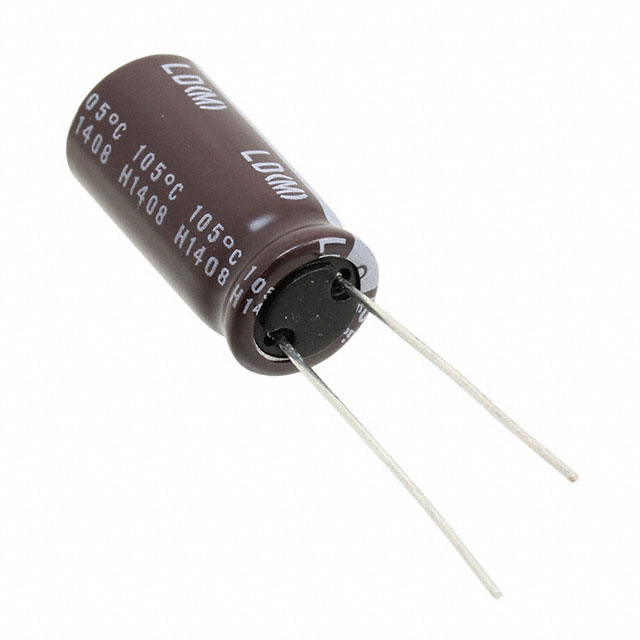

Nichicon ULD2W8R2MPD1TD	Can Radial	Polar	20000 Hrs	0.197 "	5 mm	-40 C	105 ░C	Through Hole	167.2 mA	20 %	8.2 µF	General Purpose	0.394 in	10 mm	450 V			88 mA	0.866 in	22 mm

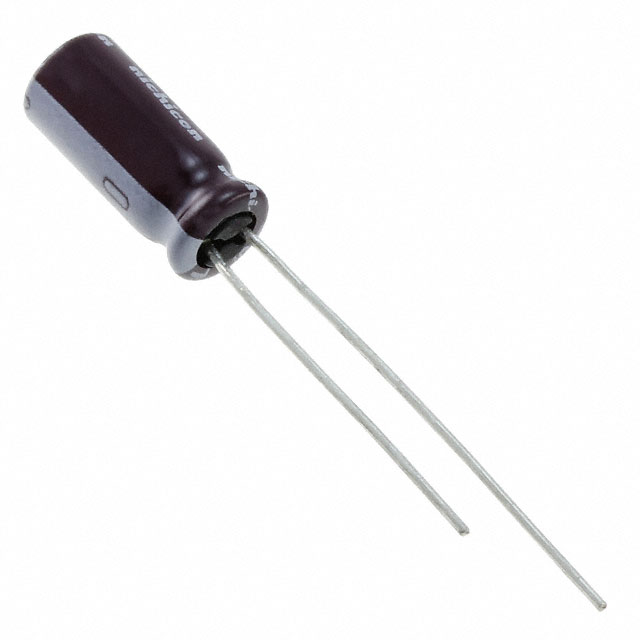

Nichicon ULD1H010MDD	Can Radial	Polar	10000 Hrs	0.079 in	2 mm	-40 C	105 ░C	Through Hole	25 mA	20 %	1 µF	General Purpose	0.197 in	5 mm	50 VDC		0.492 in	10.5 mA			12.5 mm
Nichicon ULD1C470MDD1TD	Can Radial	Polar	10000 Hrs	0.098 in	2.5 mm	-40 C	105 ░C	Through Hole	130 mA	20 %	47 µF	General Purpose	0.197 in	5 mm	16 V		0.492 in	91 mA			12.5 mm
