ULV Series
Manufacturer: Nichicon
Beta
⌘K

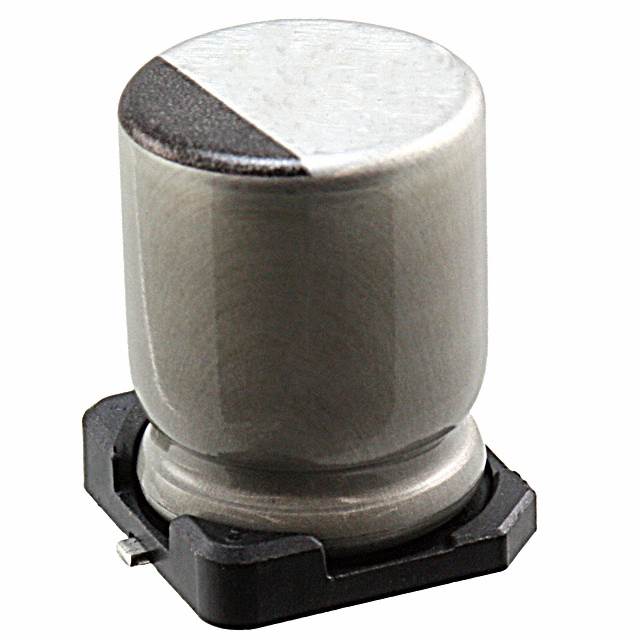

ALUMINUM ELECTROLYTIC CAPACITORS - SMD 160V 15UF 105C AEC-Q200
| Part | Ripple Current @ Low Frequency | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type | Tolerance | Ratings | Ripple Current @ High Frequency | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Capacitance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Polarization | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Lifetime @ Temp. | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | 50 mA | 0.315 in | 8 mm | Surface Mount | 20 % | AEC-Q200 | 80 mA | 8.3 mm | 8.3 mm | 0.327 in | 0.327 in | 15 µF | 11 mm | 0.433 in | Polar | 160 V | -40 C | 105 ░C | Radial Can - SMD | 10000 Hrs | General Purpose |
