960-27 Series

Manufacturer: Wakefield Thermal Solutions

Catalog

HEAT SINK, BGA, 27.5 MM, 27.94 MM, 28 MM

Part	Shape	Width	Width	Fin Height	Fin Height	Length	Length	Attachment Method	Package Cooled	Type	Material Finish	Thermal Resistance @ Forced Air Flow	Material	Fin Height [x]	Fin Height [custom]	Fin Height [custom]	Fin Height [z]	Fin Height [z]
Wakefield Thermal Solutions 960-27-28-S-AB-0	Pin Fins Square	1.063 in	27 mm	28 mm	1.102 "	1.063 in	27 mm	Push Pin	BGA	Top Mount	Black Anodized	2.5 °C/W	Aluminum
Wakefield Thermal Solutions 960-27-33-D-AB-0	Pin Fins Square	1.063 in	27 mm	33 mm		1.063 in	27 mm	Push Pin	BGA	Top Mount	Black Anodized	2.4 °C/W	Aluminum	1.299 in
Wakefield Thermal Solutions 960-27-23-F-AB-0	Pin Fins Square	1.063 in	27 mm			1.063 in	27 mm	Push Pin	BGA	Top Mount	Black Anodized	3 °C/W	Aluminum		0.905 in	23 mm
Wakefield Thermal Solutions 960-27-21-D-AB-0	Pin Fins Square	1.063 in	27 mm	21 mm	0.827 "	1.063 in	27 mm	Push Pin	BGA	Top Mount	Black Anodized	3.3 °C/W	Aluminum

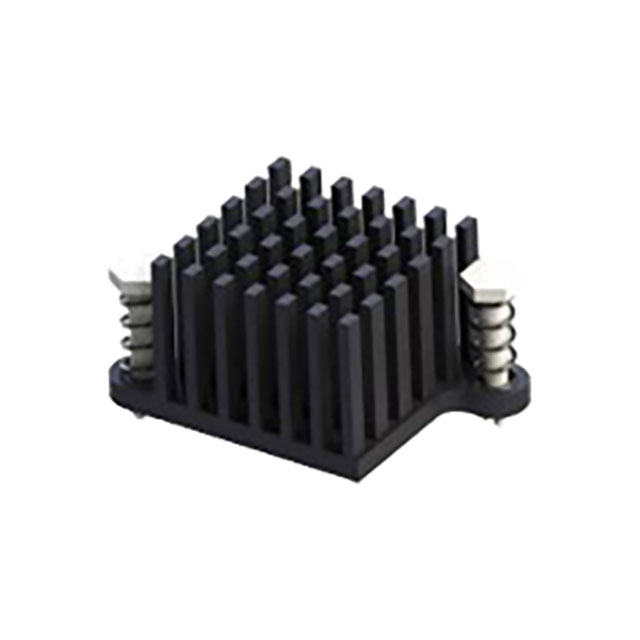

Wakefield Thermal Solutions 960-27-33-F-AB-0	Pin Fins Square	1.063 in	27 mm	33 mm		1.063 in	27 mm	Push Pin	BGA	Top Mount	Black Anodized	2.4 °C/W	Aluminum	1.299 in
Wakefield Thermal Solutions 960-27-15-D-AB-0	Pin Fins Square	1.063 in	27 mm			1.063 in	27 mm	Push Pin	BGA	Top Mount	Black Anodized	4.5 °C/W	Aluminum				15 mm	0.59 in
Wakefield Thermal Solutions 960-27-23-D-AB-0	Pin Fins Square	1.063 in	27 mm			1.063 in	27 mm	Push Pin	BGA	Top Mount	Black Anodized	3 °C/W	Aluminum		0.905 in	23 mm
Wakefield Thermal Solutions 960-27-15-D-AB-0	Pin Fins Square	1.063 in	27 mm			1.063 in	27 mm	Push Pin	BGA	Top Mount	Black Anodized	4.5 °C/W	Aluminum				15 mm	0.59 in
Wakefield Thermal Solutions 960-27-23-S-AB-0	Pin Fins Square	1.063 in	27 mm			1.063 in	27 mm	Push Pin	BGA	Top Mount	Black Anodized	3 °C/W	Aluminum		0.905 in	23 mm
Wakefield Thermal Solutions 960-27-12-D-AB-0	Pin Fins Square	1.063 in	27 mm	12 mm	0.472 in	1.063 in	27 mm	Push Pin	BGA	Top Mount	Black Anodized	5.7 °C/W	Aluminum
