BXRC-50 Series

Manufacturer: BRIDGELUX

Catalog

Catalog

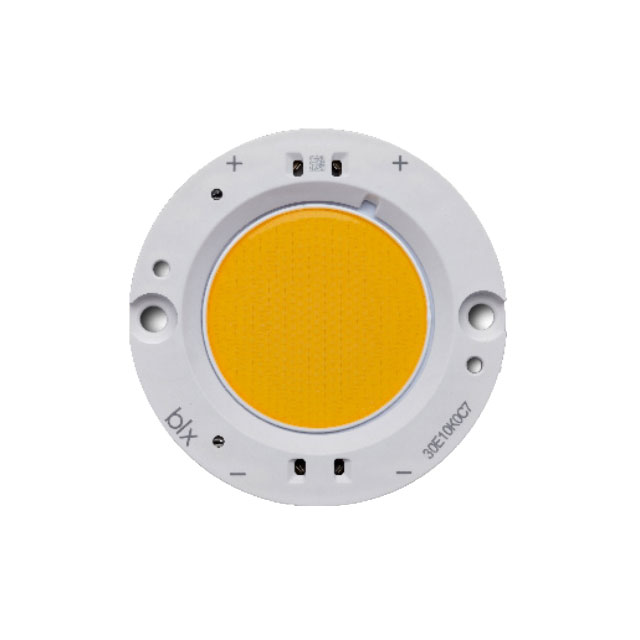

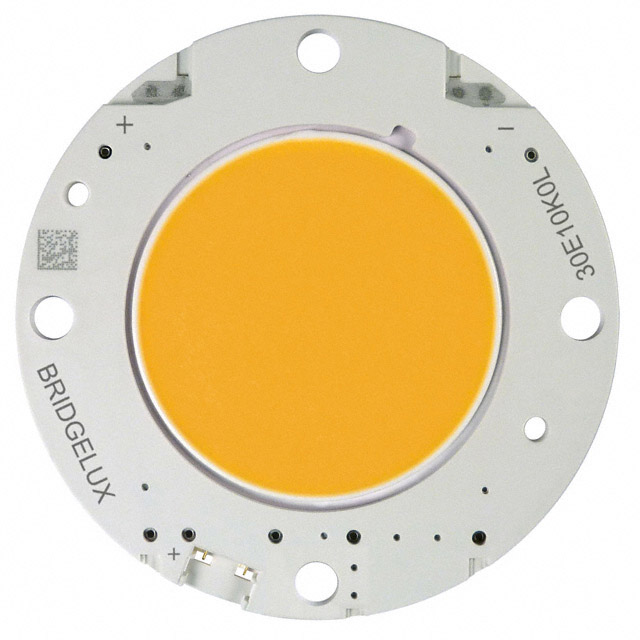

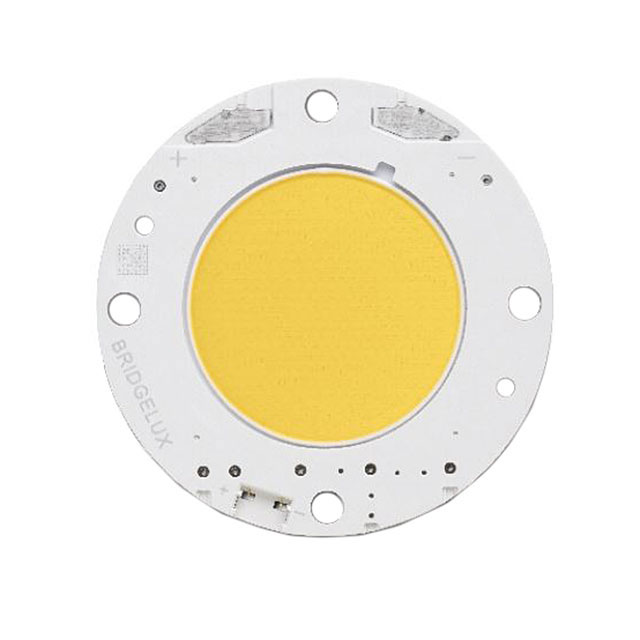

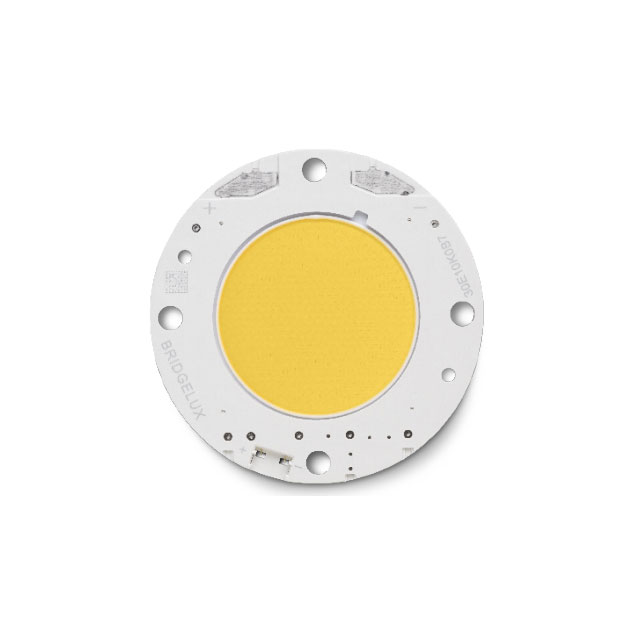

LED COB VERO 29 WHT RND 5000K

...

Part	Temperature - Test	Configuration	Lens Type	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Viewing Angle	Light Emitting Surface (LES) [diameter]	Lumens/Watt @ Current - Test	CCT (K)	CCT (K)	Current - Test	Color	Type	Height [z]	Luminous Flux @ Current/Temperature	Size / Dimension [diameter]	Current - Max [Max]	Features
BRIDGELUX BXRC-50G10K1-C-74	25 °C	Round	Flat	69.4 V	90	120 °	29.2 mm	145 lm/W	4-Step MacAdam Ellipse	5000 K	1.71 A	Cool White	Chip On Board (COB)	1.9 mm	17235 lm	49.2 mm	3.42 A
BRIDGELUX BXRC-50E10K1-C-74	25 °C	Round	Flat	69.4 V	80	120 °	29.2 mm	171 lm/W	4-Step MacAdam Ellipse	5000 K	1.71 A	Cool White	Chip On Board (COB)	1.9 mm	20291 lm	49.2 mm	3.42 A
BRIDGELUX BXRC-50E2001-C-73-SE	85 °C	Round	Flat	33.9 V	80	120 °	13.4 mm	155 lm/W	3-Step MacAdam Ellipse	5000 K	630 mA	Cool White	Chip On Board (COB)	3.6 mm	3201 lm	36.2 mm	1.26 A
BRIDGELUX BXRC-50G10K1-D-73	25 °C	Round	Flat	37.6 V	90	120 °	29.2 mm	145 lm/W	3-Step MacAdam Ellipse	5000 K	2.1 A	Cool White	Chip On Board (COB)	1.9 mm	11467 lm	49.2 mm	4.2 A
BRIDGELUX BXRC-50E2001-C-74	85 °C	Round	Flat	34.1 V	80	120 °	13.2 mm	152 lm/W	4-Step MacAdam Ellipse	5000 K	630 mA	Cool White	Chip On Board (COB)	1.9 mm	3266 lm	36.2 mm	1.26 A	With Connector
BRIDGELUX BXRC-50C1000-B-04	25 °C	Starboard	Flat	26.7 V	70	120 °	9.9 mm	140 lm/W	4-Step MacAdam Ellipse	5000 K	350 mA	Cool White	Chip On Board (COB)	1.9 mm	1305 lm	20 mm	700 mA	With Connector
BRIDGELUX BXRC-50C10K1-C-83	25 °C	Round	Flat	66.7 V	70	120 °	29.1 mm	200 lm/W	3-Step MacAdam Ellipse	5000 K	1.3 A	Cool White	Chip On Board (COB)	1.9 mm	17364 lm	49.2 mm	4.75 A
BRIDGELUX BXRC-50C4001-B-73	85 °C	Round	Flat	33.9 V	70	120 °	18.4 mm	163 lm/W	3-Step MacAdam Ellipse	5000 K	900 mA	Cool White	Chip On Board (COB)	1.9 mm	4963 lm	36.2 mm	1.8 A
BRIDGELUX BXRC-50E4000-F-04	25 °C	Round	Flat	29.5 V	80	120 °	18.4 mm	130 lm/W	4-Step MacAdam Ellipse	5000 K	1.05 A	Cool White	Chip On Board (COB)	1.9 mm	4045 lm	36.2 mm	2.1 A	With Connector
BRIDGELUX BXRC-50G10K1-C-83-SE	25 °C	Round	Flat	66.7 V	90	120 °	29.1 mm	166 lm/W	3-Step MacAdam Ellipse	5000 K	1.3 A	Cool White	Chip On Board (COB)	3.6 mm	14403 lm	49.2 mm	4.75 A
