MLX90615 Series

Catalog

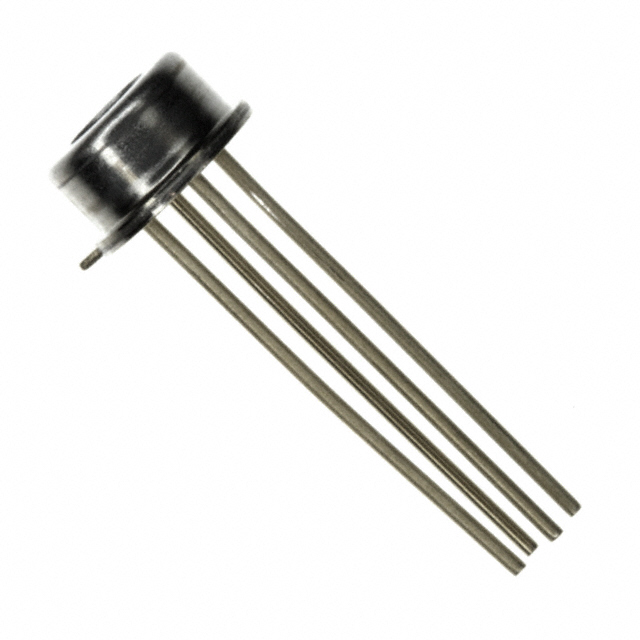

SENSOR DGTL -40C-85C TO46-4

Part	Sensor Type	Qualification	Features	Sensing Temperature - Local [Max]	Sensing Temperature - Local [Min]	Resolution	Grade	Voltage - Supply [Min]	Voltage - Supply [Max]	Test Condition [Max]	Test Condition [Min]	Test Condition [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Accuracy - Highest (Lowest)	Accuracy - Highest (Lowest)	Mounting Type	Sensing Temperature - Remote [Min]	Sensing Temperature - Remote [Max]	Output Type	Package / Case
Melexis Technologies NV MLX90615SSG-DAA-000-TU	Digital Infrared (IR)	AEC-Q100	Programmable Resolution Sleep Mode	85 °C	-40 °F	15 b	Automotive	2.6 V	3.6 V	115 °C	60 °C	60 °C	85 °C	-20 ░C	TO-46-4	0.5 °C	3 °C	Through Hole	-40 °C	115 °C	PWM SMBus	TO-46-4 Metal Can
Melexis Technologies NV MLX90615SSG-DAG-000-SP	Digital Infrared (IR)	AEC-Q100	Programmable Resolution Sleep Mode	85 °C	-40 °F	15 b	Automotive	2.6 V	3.4 V	115 °C	60 °C	60 °C	85 °C	-20 ░C	TO-46-4	0.5 °C	3 °C	Through Hole	-40 °C	115 °C	PWM SMBus	TO-46-4 Metal Can
Melexis Technologies NV MLX90615SSG-DAA-000-SP	Digital Infrared (IR)	AEC-Q100	Programmable Resolution Sleep Mode	85 °C	-40 °F	15 b	Automotive	2.6 V	3.4 V	115 °C	60 °C	60 °C	85 °C	-20 ░C	TO-46-4	0.5 °C	3 °C	Through Hole	-40 °C	115 °C	PWM SMBus	TO-46-4 Metal Can
Melexis Technologies NV MLX90615SSG-DAG-000-TU	Digital Infrared (IR)	AEC-Q100	Programmable Resolution Sleep Mode	85 °C	-40 °F	15 b	Automotive	2.6 V	3.6 V	115 °C	60 °C	60 °C	85 °C	-20 ░C	TO-46-4	0.5 °C	3 °C	Through Hole	-40 °C	115 °C	PWM SMBus	TO-46-4 Metal Can
