UVY1J Series

Manufacturer: Nichicon

Catalog

CAP ALUM 3300UF 20% 63V RADIAL

Part	Mounting Type	Capacitance	Voltage - Rated	Applications	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Tolerance	Lifetime @ Temp.	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Height - Seated (Max) [Max]

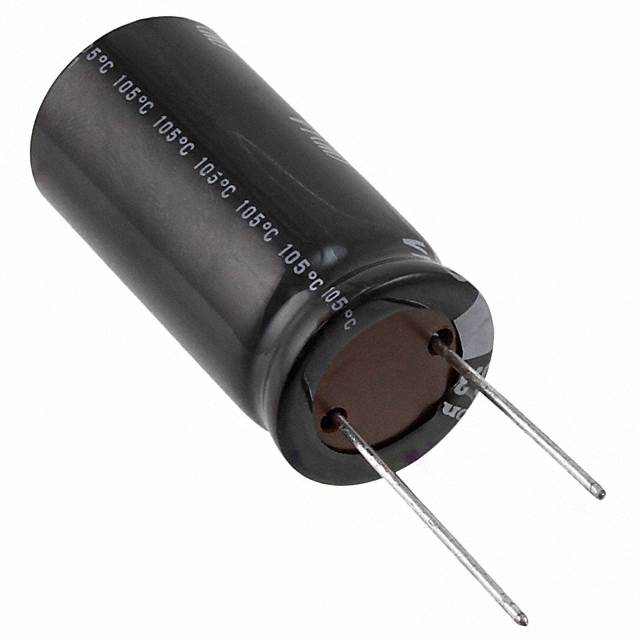

Nichicon UVY1J332MRD	Through Hole	3.3 mF	63 V	General Purpose	Can Radial	42 mm	1.654 in	Polar	20 mm	0.787 "	-55 C	105 ░C	0.394 in	10 mm	2.2425 A	20 %	2000 Hrs	1.95 A
Nichicon UVY1J331MPD	Through Hole	330 µF	63 V	General Purpose	Can Radial			Polar	10 mm	0.394 in	-55 C	105 ░C	0.197 "	5 mm	765 mA	20 %	2000 Hrs	510 mA	0.866 in	22 mm
Nichicon UVY1J471MHD1TO	Through Hole	470 µF	63 V	General Purpose	Can Radial			Polar	12.5 mm	0.492 in	-55 C	105 ░C	0.197 "	5 mm	960 mA	20 %	2000 Hrs	640 mA	0.866 in	22 mm
Nichicon UVY1J330MED1TA	Through Hole	33 ÁF	63 V	General Purpose	Can Radial			Polar	6.3 mm	0.248 "	-55 C	105 ░C	0.098 in	2.5 mm	200 mA	20 %	1000 Hrs	100 mA			0.492 in	12.5 mm
Nichicon UVY1J331MPD1TD	Through Hole	330 µF	63 V	General Purpose	Can Radial			Polar	10 mm	0.394 in	-55 C	105 ░C	0.197 "	5 mm	765 mA	20 %	2000 Hrs	510 mA	0.866 in	22 mm

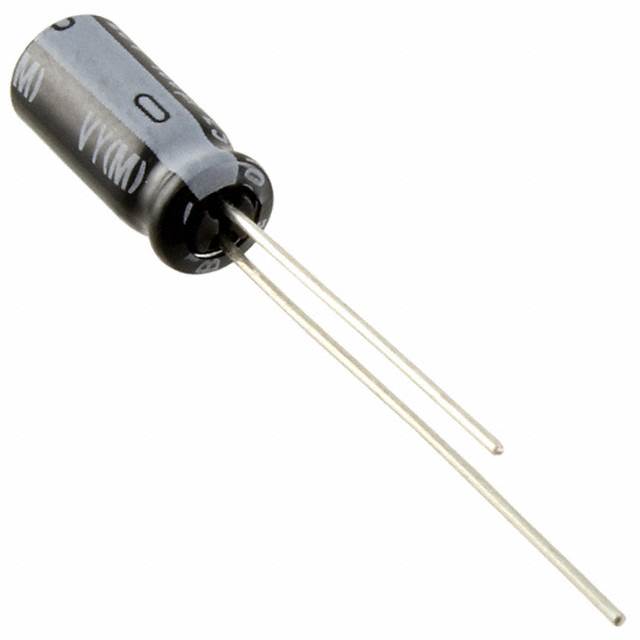

Nichicon UVY1J220MDD1TD	Through Hole	22 µF	63 V	General Purpose	Can Radial			Polar	5 mm	0.197 in	-55 C	105 ░C	0.079 in	2 mm	142 mA	20 %	1000 Hrs	71 mA			0.492 in	12.5 mm

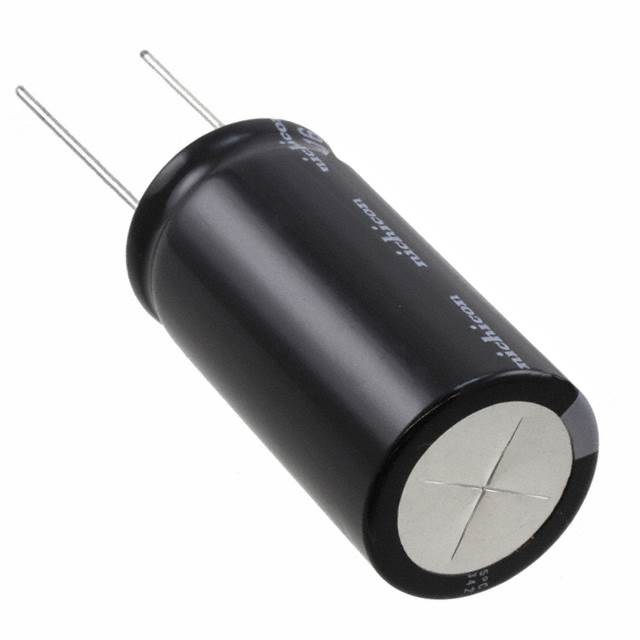

Nichicon UVY1J682MRD	Through Hole	6800 µF	63 V	General Purpose	Can Radial			Polar	25 mm	0.984 "	-55 C	105 ░C		0.492 in	3.22 A	20 %	2000 Hrs	2.8 A			52 mm		12.5 mm	2.047 in
Nichicon UVY1J102MHD1TN	Through Hole	1000 µF	63 V	General Purpose	Can Radial			Polar	16 mm	0.63 in	-55 C	105 ░C	0.295 in	7.5 mm	1.0695 A	20 %	2000 Hrs	930 mA			27 mm			1.063 in
Nichicon UVY1J101MPD	Through Hole	100 µF	63 V	General Purpose	Can Radial	13 mm	0.512 "	Polar	8 mm	0.315 in	-55 C	105 ░C	0.138 in	3.5 mm	300 mA	20 %	1000 Hrs	200 mA
Nichicon UVY1J470MED1TD	Through Hole	47 µF	63 V	General Purpose	Can Radial			Polar	6.3 mm	0.248 "	-55 C	105 ░C	0.098 in	2.5 mm	240 mA	20 %	1000 Hrs	120 mA			0.492 in	12.5 mm
