CTX_P Series

Coupled Inductors 0.46uH 6.2A 0.006ohms

Manufacturer: Eaton - Electronics Division

Catalog

Coupled Inductors 0.46uH 6.2A 0.006ohms

Catalog

Coupled Inductors 0.46uH 6.2A 0.006ohms

Part	DC Resistance (DCR) - Parallel [Max]	Package / Case	Height [z]	Height [z]	DC Resistance (DCR) - Series [Max]	Current Rating - Series	Inductance - Connected In Parallel	Shielding	Inductance - Connected In Series	Tolerance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Coils	Mounting Type	DC Resistance (DCR) - Parallel	Current Rating - Parallel	Height	Height	DC Resistance (DCR) - Series
Eaton - Electronics Division CTX2-2P-R	14 mOhm	Nonstandard	5.97 mm	0.235 in	55 mOhm	1.95 A	2.18 µH	Unshielded	8.7 µH	20 %	0.45 "	11.43 mm	11.43 mm	0.45 in	85 °C	-40 C	2	Surface Mount

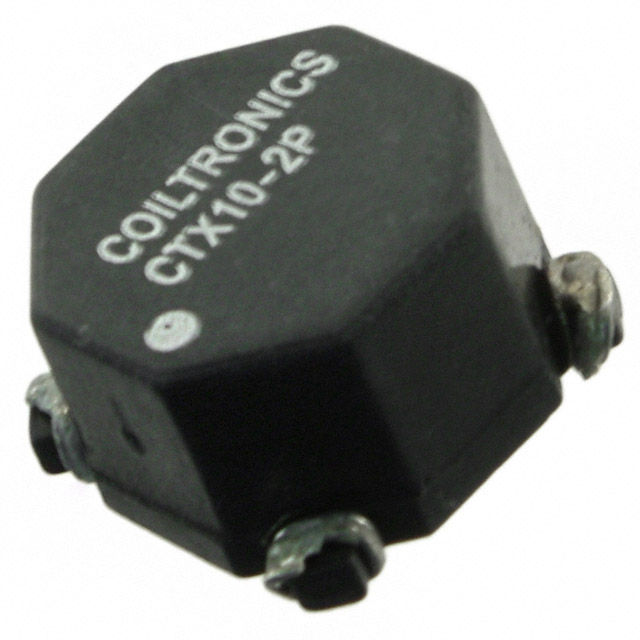

Eaton - Electronics Division CTX10-2P-R		Nonstandard	5.97 mm	0.235 in	179 mOhm	1.05 A	9.83 µH	Unshielded	39.3 µH	20 %	0.45 "	11.43 mm	11.43 mm	0.45 in	85 °C	-40 C	2	Surface Mount	45 mOhm	2.1 A
Eaton - Electronics Division CTX200-4P-R		Nonstandard			3.24 Ohm	300 mA	200.11 µH	Unshielded	800.44 µH	20 %	0.55 in	13.97 mm	13.97 mm	0.55 "	85 °C	-40 C	2	Surface Mount	810 mOhm	0.6 A	0.25 in	6.35 mm
Eaton - Electronics Division CTX0.47-3P-R	6 mOhm	Nonstandard		0.19 in	25 mOhm	3.1 A	460 nH	Unshielded	1.85 µH	20 %	0.55 in	13.97 mm	13.97 mm	0.55 "	85 °C	-40 C	2	Surface Mount		6.2 A		4.83 mm
Eaton - Electronics Division CTX68-2P-R	362 mOhm	Nonstandard	5.97 mm	0.235 in		380 mA	68.85 µH	Unshielded	275.4 µH	20 %	0.45 "	11.43 mm	11.43 mm	0.45 in	85 °C	-40 C	2	Surface Mount		760 mA			1.445 Ohm
