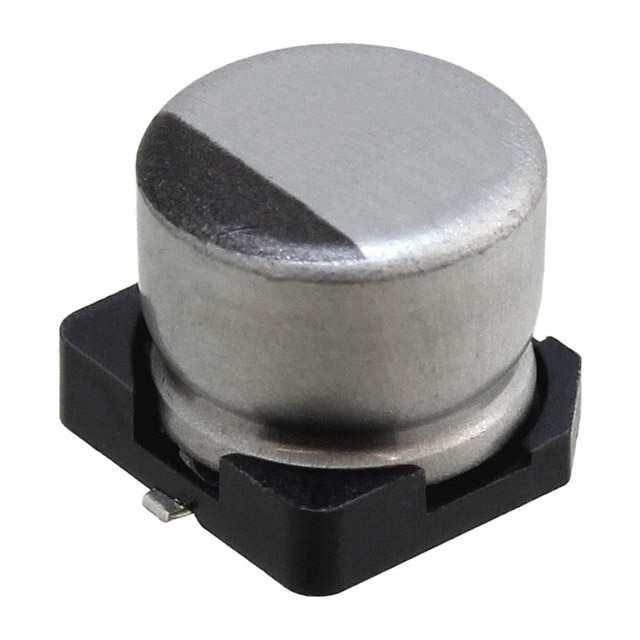

UWR Series
Manufacturer: Nichicon
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - SMD
| Part | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Polarization | Ripple Current @ High Frequency | Ripple Current @ Low Frequency | Package / Case | Size / Dimension [diameter] | Size / Dimension [diameter] | Voltage - Rated | Applications | Capacitance | Lifetime @ Temp. | Operating Temperature [Max] | Operating Temperature [Min] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | Surface Mount | 0.217 " | 5.5 mm | Polar | 67.5 mA | 45 mA | Radial Can - SMD | 4 mm | 0.157 in | 6.3 VDC | General Purpose | 47 µF | 2000 Hrs | 85 °C | -40 C | 4.3 mm | 0.169 " | 0.169 in | 4.3 mm | 20 % |
 Nichicon | Surface Mount | 0.217 " | 5.5 mm | Polar | 105 mA | 70 mA | Radial Can - SMD | 6.3 mm | 0.248 " | 25 VDC | General Purpose | 47 µF | 2000 Hrs | 85 °C | -40 C | 6.6 mm | 0.26 in | 0.26 in | 6.6 mm | 20 % |
