D10650 Series

Catalog

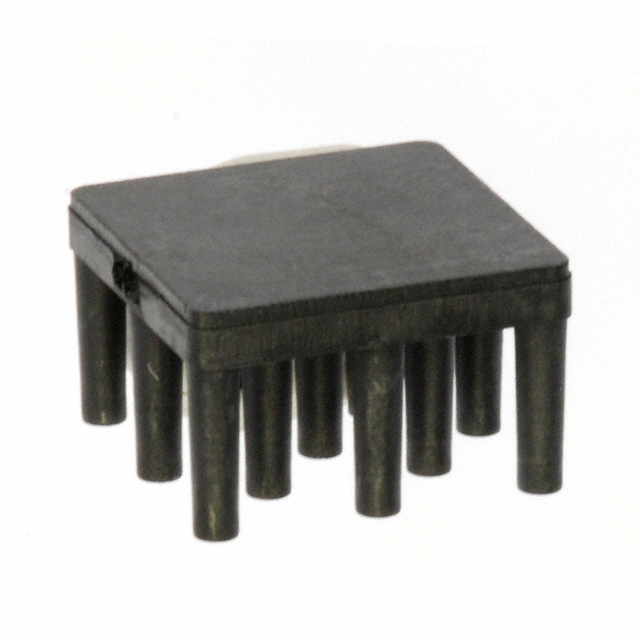

HEAT SINK, BGA, 16.5 MM, 10.21 MM, 16.5 MM

Part	Width [x]	Width [x]	Power Dissipation @ Temperature Rise	Length	Length	Package Cooled	Material	Attachment Method	Thermal Resistance @ Forced Air Flow	Fin Height [z]	Fin Height [z]	Type	Shape
Wakefield Thermal Solutions D10650-40	16.51 mm	0.65 in	2 W 40 °C	0.65 in	16.51 mm	BGA	Composite	Thermal Tape Adhesive	25 °C/W	0.4 in	10.16 mm	Top Mount	Pin Fins Square
Wakefield Thermal Solutions D10650-40T1E	16.51 mm	0.65 in	2 W 40 °C	0.65 in	16.51 mm	BGA	Composite	Thermal Tape Adhesive (Included)	25 °C/W	0.4 in	10.16 mm	Top Mount	Pin Fins Square
Wakefield Thermal Solutions D10650-40T3	16.51 mm	0.65 in	2 W 40 °C	0.65 in	16.51 mm	BGA	Composite	Thermal Tape Adhesive (Included)	25 °C/W	0.4 in	10.16 mm	Top Mount	Pin Fins Square
Wakefield Thermal Solutions D10650-40	16.51 mm	0.65 in	2 W 40 °C	0.65 in	16.51 mm	BGA	Composite	Thermal Tape Adhesive	25 °C/W	0.4 in	10.16 mm	Top Mount	Pin Fins Square
Wakefield Thermal Solutions D10650-40T3	16.51 mm	0.65 in	2 W 40 °C	0.65 in	16.51 mm	BGA	Composite	Thermal Tape Adhesive (Included)	25 °C/W	0.4 in	10.16 mm	Top Mount	Pin Fins Square
Wakefield Thermal Solutions D10650-40T1E	16.51 mm	0.65 in	2 W 40 °C	0.65 in	16.51 mm	BGA	Composite	Thermal Tape Adhesive (Included)	25 °C/W	0.4 in	10.16 mm	Top Mount	Pin Fins Square
