BXRA-50 Series

Manufacturer: BRIDGELUX

Catalog

LED COB RS COOL WHT SQUARE 5000K

Part	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Luminous Flux @ Current/Temperature	Color	CRI (Color Rendering Index)	Height [z]	Temperature - Test	CCT (K)	CCT (K)	Type	Current - Max [Max]	Current - Test	Lumens/Watt @ Current - Test	Lens Type	Configuration	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [diameter]	Size / Dimension [diameter]
BRIDGELUX BXRA-50C9000-J-04	45.6 mm	2 in	120 °	10060 lm	Cool White	70	3 mm	25 °C	4-Step MacAdam Ellipse	5000 K	Chip On Board (COB)	3.5 A	2.8 A	122 lm/W	Domed	Square
BRIDGELUX BXRA-50C1100-B-04	22.8 mm	25.8 mm	120 °	1320 lm	Cool White	70	3 mm	25 °C	4-Step MacAdam Ellipse	5000 K	Chip On Board (COB)	750 mA	500 mA	128 lm/W	Domed	Rectangle	20.7 V
BRIDGELUX BXRA-50C1100-B-00	22.8 mm	25.8 mm	120 °	1320 lm	Cool White	70	3 mm	25 °C		5000 K	Chip On Board (COB)	750 mA	500 mA	128 lm/W	Domed	Rectangle	20.7 V

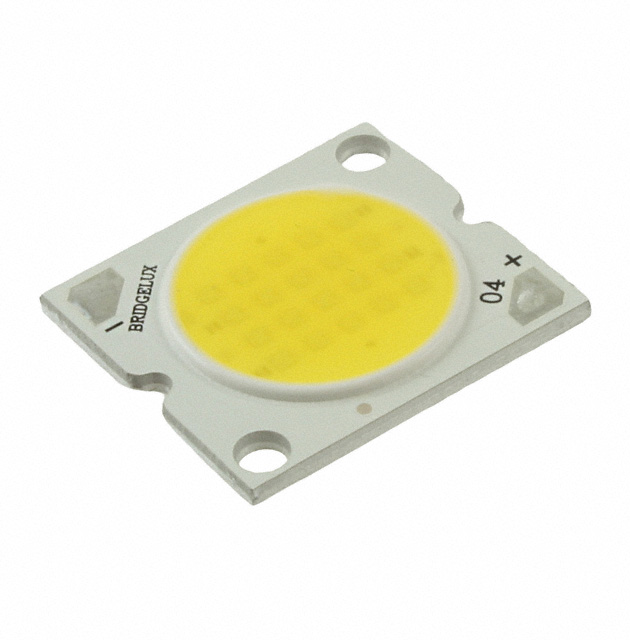

BRIDGELUX BXRA-50C1600-B-00	22.8 mm	25.8 mm	120 °	1920 lm	Cool White	70	3 mm	25 °C		5000 K	Chip On Board (COB)	750 mA	500 mA	130 lm/W	Domed	Rectangle

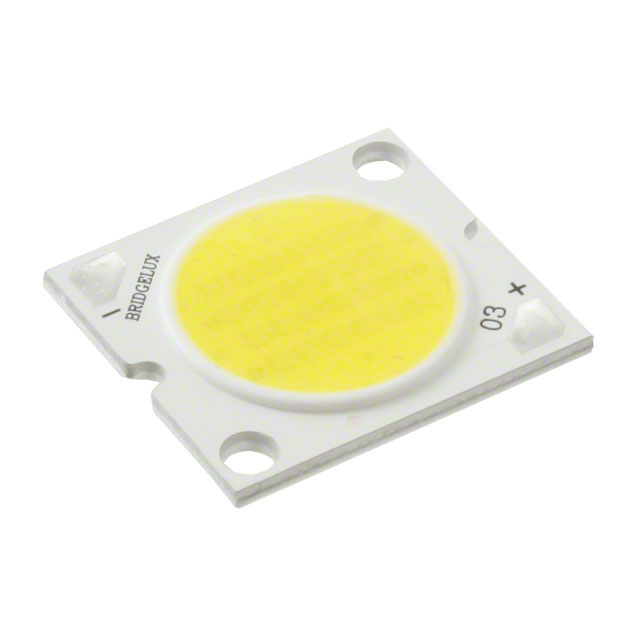

BRIDGELUX BXRA-50C2600-B-00	22.8 mm	25.8 mm	120 °	3100 lm	Cool White	70	3 mm	25 °C		5000 K	Chip On Board (COB)	750 mA		120 lm/W	Domed	Rectangle	37 V
BRIDGELUX BXRA-50C1600-B-04	22.8 mm	25.8 mm	120 °	1920 lm	Cool White	70	3 mm	25 °C	4-Step MacAdam Ellipse	5000 K	Chip On Board (COB)	750 mA	500 mA	130 lm/W	Domed	Rectangle

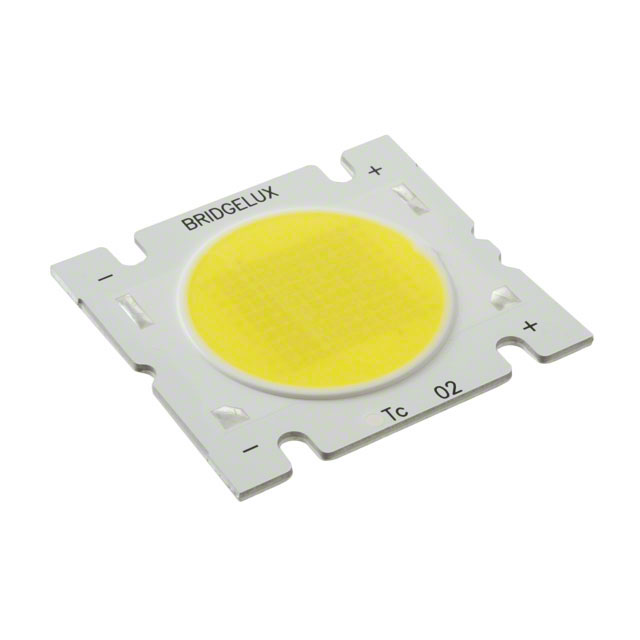

BRIDGELUX BXRA-50C9000-J-00	45.6 mm	2 in	120 °	10060 lm	Cool White	70	3 mm	25 °C		5000 K	Chip On Board (COB)	3.5 A	2.8 A	122 lm/W	Domed	Square
BRIDGELUX BXRA-50C1000-A-04			120 °	1000 lm	Cool White	70	3 mm	85 °C	3-Step MacAdam Ellipse	5000 K	Chip On Board (COB)	350 mA	350 mA	105 lm/W	Flat	Starboard	27.3 V	10.9 mm	20.2 mm
