IPB013 Series
Manufacturer: INFINEON
Beta
⌘K

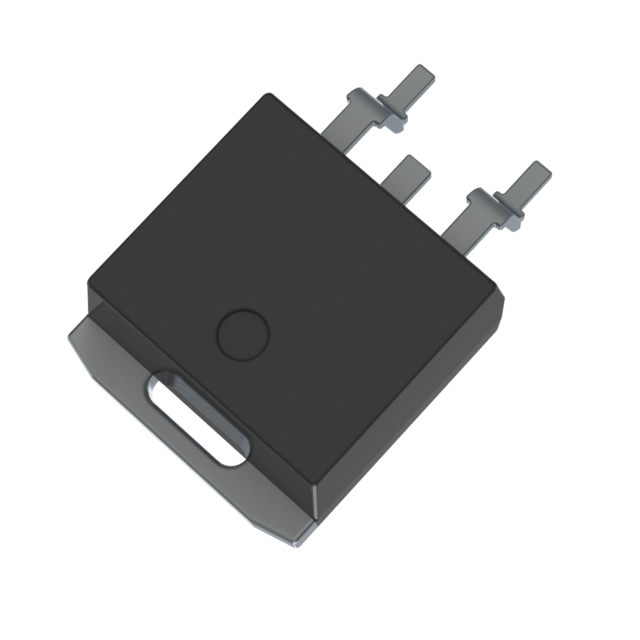

STRONGIRFET™ 2 SINGLE N-CHANNEL POWER MOSFET 60 V IN D²PAK PACKAGE
| Part | Technology | Package / Case | Current - Continuous Drain (Id) @ 25°C | Power Dissipation (Max) | Vgs (Max) | Mounting Type | Input Capacitance (Ciss) (Max) @ Vds [Max] | Drain to Source Voltage (Vdss) | Operating Temperature [Max] | Operating Temperature [Min] | FET Type | Gate Charge (Qg) (Max) @ Vgs [Max] | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Drive Voltage (Max Rds On, Min Rds On) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | MOSFET (Metal Oxide) | D2PAK (2 Leads + Tab) TO-263-3 TO-263AB | 40 A 198 A | 3.8 W 300 W | 20 V | Surface Mount | 13800 pF | 60 V | 175 °C | -55 °C | N-Channel | 305 nC | 1.3 mOhm | 3.3 V | 6 V 10 V |
