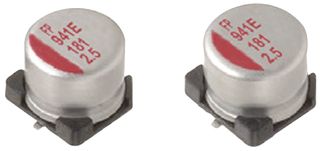

RFS Series

Manufacturer: Nichicon

Catalog

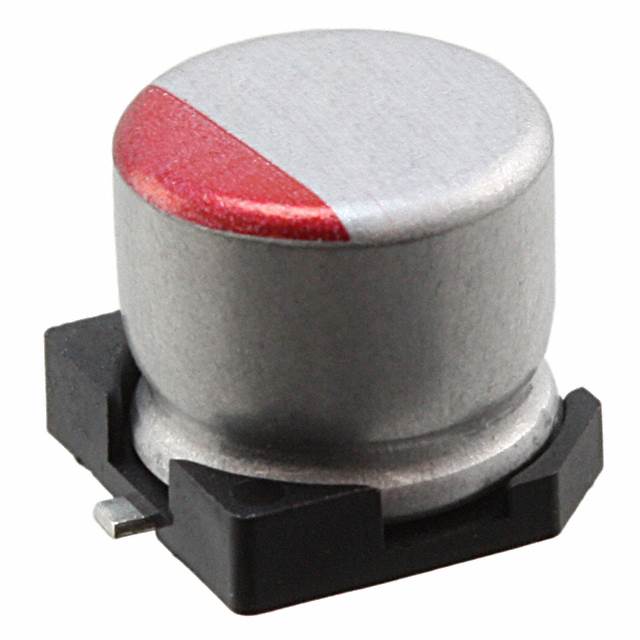

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 120 ΜF, 6.3 V, RADIAL CAN - SMD, 0.024 OHM

Part	Tolerance	Mounting Type	Lifetime @ Temp.	Capacitance	Ripple Current @ Low Frequency	Surface Mount Land Size [y]	Surface Mount Land Size [x]	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Applications	Package / Case	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max)
Nichicon RFS0J121MCN1GS	20 %	Surface Mount	2000 Hrs	120 µF	250 mA	0.209 in 5.3 mm	0.209 in 5.3 mm	24 mOhms	-55 C	105 ░C	2.5 A	5.7 mm	0.224 in	Polymer	General Purpose	Radial Can - SMD	6.3 VDC	0.197 in	5 mm
Nichicon RFS1C390MCN1GS	20 %	Surface Mount	2000 Hrs	39 µF	207 mA	0.209 in 5.3 mm	0.209 in 5.3 mm	35 mOhms	-55 C	105 ░C	2.07 A		0.236 "	Polymer	General Purpose	Radial Can - SMD	16 V	0.197 in	5 mm	6 mm
Nichicon RFS1C101MCN1GS	20 %	Surface Mount	2000 Hrs	100 µF	300 mA	0.209 in 5.3 mm	0.209 in 5.3 mm	27 mOhms	-55 C	105 ░C	3000 mA		0.236 "	Polymer	General Purpose	Radial Can - SMD	16 V	0.197 in	5 mm	6 mm
