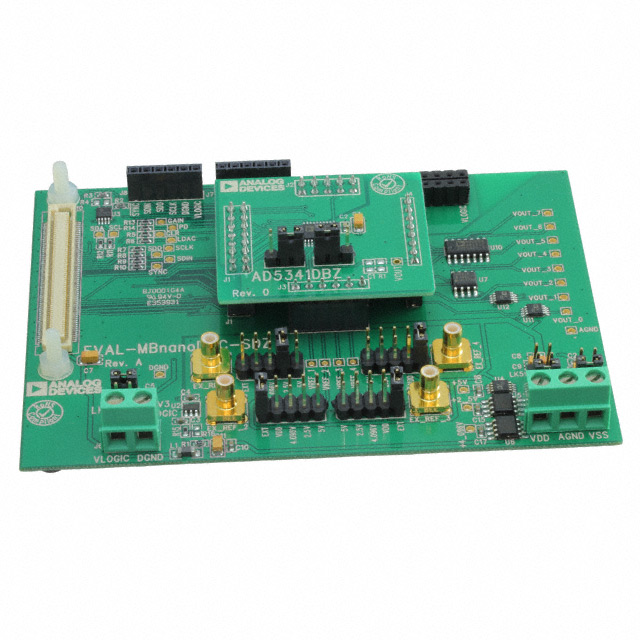

AD5341

AD5341 Series

2.5V to 5.5V, 115µA Parallel Interface Single Voltage Output 12-Bit DAC

Manufacturer: Analog Devices

Catalog

2.5V to 5.5V, 115µA Parallel Interface Single Voltage Output 12-Bit DAC

Key Features

• Single 12-Bit DAC in 20-Lead TSSOP
• Low power operation: 115 μA @ 3 V, 140 μA @ 5 V
• Power-down to 80 nA @ 3 V, 200 nA @ 5 V viaPDPin
• 2.5 V to 5.5 V power supply
• Double-buffered input logic
• Guaranteed monotonic by design over all codes
• Buffered/unbuffered reference input options
• See Data Sheet for Additional Information

Description

AI
The AD5330/AD5331/AD5340/AD5341* are single 8-/10-/12-bit DACs. They operate from a 2.5 V to 5.5 V supply consuming just 115 μA at 3 V and feature a power-down mode that further reduces the current to 80 nA. The devices incorporate an on-chip output buffer that can drive the output to both supply rails, but the AD5330, AD5340, and AD5341 allow a choice of buffered or unbuffered reference input.The AD5330/AD5331/AD5340/AD5341 have a parallel interface.CSselects the device and data is loaded into the input registers on the rising edge ofWR.The GAIN pin allows the output range to be set at 0 V to VREFor 0 V to 2 × VREF.Input data to the DACs is double-buffered, allowing simultaneous update of multiple DACs in a system using theLDACpin.An asynchronousCLRinput is also provided, which resets the contents of the input register and the DAC register to all zeros. These devices also incorporate a power-on reset circuit that ensures that the DAC output powers on to 0 V and remains there until valid data is written to the device.The AD5330/AD5331/AD5340/AD5341 are available in thin shrink small outline packages (TSSOP).ApplicationsPortable battery-powered instrumentsDigital gain and offset adjustmentProgrammable voltage and current sourcesProgrammable attenuatorsIndustrial process control* Protected by U.S. Patent Number 5,969,657; other patents pending.Data Sheet, Rev. A, 2/08
