Dual Ch 120V Shared Battery Line Circuit
Key Features
• Reduced footprint and space optimized version of ZL88601/602 dual channel VoicePort devices
•

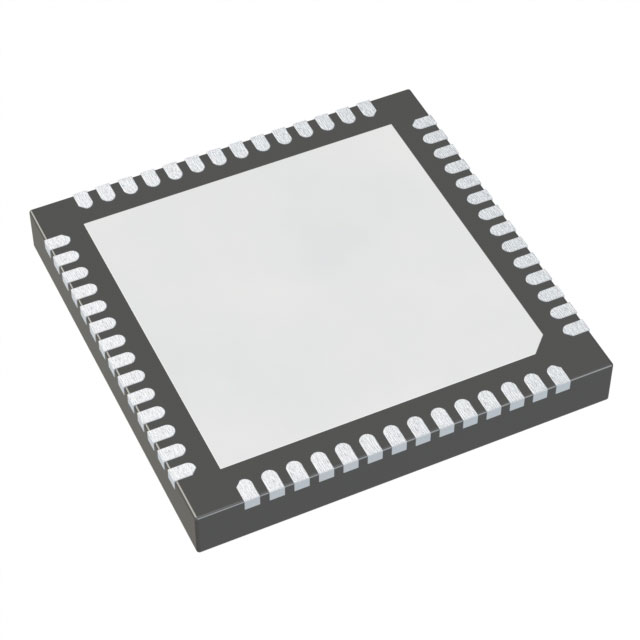

• 53-pin 7x7 mm QFN package
•
• Supports multi-channel enterprise applications
•
• PCM / SPI interface control* Compatible with numerous VoIP processors and SoC solutions
• * Programmable interface voltage to support 1.8V, 2.5V, and 3.3V SoC processors
•
• VoicePath SDK and VP-API-II software available to implement FXS functions
•
• VeriVoice Professional Test Suite Software* Comprehensive subscriber loop testing, including Telcordia GR-909-CORE / TIA-1063 diagnostic testing
• * Industry leading advanced test software
•
• VeriVoice Manufacturing Test (VVMT) Package* Facilitates factory testing and calibration of assembled boards
•
• Low cost, energy efficient, shared switching regulator architectures* Dual output power supplies
• * Integrated battery switches
• * Patented shared buck-boost with 85 Vpk open circuit ringing capability
• * Multi-line inverting-boost with 100 Vpk open circuit ringing capability
•
• Low cost, 2-Layer PCB reference designs
•
• Complete wideband BORSCHT functionality
•
• Worldwide programmability
•
• Per channel narrowband or wideband operation
Description
AI
The miSLIC™ Line Circuits together with a VoIP processor or SoC, provide an economical turn-key solution for derived voice applications. The dual channel Le9622 miSLIC device uses energy efficient shared power supply topologies for reduced BOM cost. The Le9622 can be configured for patented Triple Buck-Boost Automatic Battery Switching (TBABS) or Buck-Boost ABS (BBABS) operation or for multi-line inverting boost operation. Ringing and system power management are supported to limit the peak power requirements of each telephone line FXS port. The dual channel Le9622 features wide-band clarity and complete BORSCHT functionality. Manufacturing test and subscriber line testing are standard features. All AC, DC, and power parameters are programmable making the miSLIC device suitable for any application requiring SLIC functionality.
