Isolated DC/DC Converters - Through Hole
Isolated DC/DC Converters - Through Hole
Isolated DC/DC Converters - Through Hole
| Part | Approval Agency | Efficiency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Output 2 | Power (Watts) | Number of Outputs | Applications | Current - Output (Max) [Max] | Current - Output (Max) [Min] | Features | Voltage - Input (Max) [Max] | Type | Voltage - Input (Min) [Min] | Package / Case | Mounting Type | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Standard Number | Voltage - Isolation | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

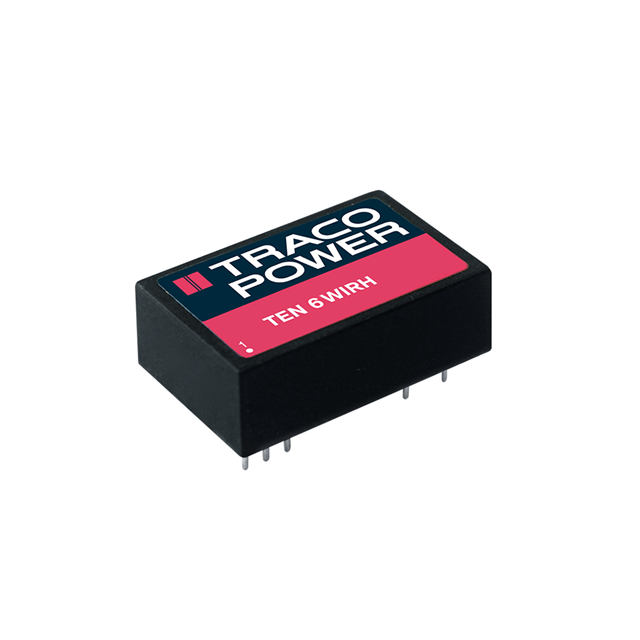

Traco Power | CB cURus | 83 % | 0.42 " | 0.8 " | 10.7 mm | 1.25 in | 31.8 mm | 20.3 mm | -5 V | 5.94 W | 2 | ITE (Commercial) Railway | 600 mA | 600 mA | Adjustable Output Remote On/Off | 160 V | Isolated Module | 36 V | 24-DIP Module 9 Leads | Through Hole | 5 V | 90 °C | -40 C | 62368-1 | 3000 V | |
Traco Power | CB cURus | 86 % | 0.42 " | 0.8 " | 10.7 mm | 1.25 in | 31.8 mm | 20.3 mm | -12 V | 5.94 W | 2 | ITE (Commercial) Railway | Adjustable Output Remote On/Off | 160 V | Isolated Module | 36 V | 24-DIP Module 9 Leads | Through Hole | 12 V | 90 °C | -40 C | 62368-1 | 3000 V | 250 mA |
