FH58 Series

Catalog

FH58 MATING TOOL (41)

Part	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Actuator Color	Mating Cycles	Housing Color	Pitch	Pitch	Actuator Material	Mounting Type	Voltage Rating	Connector/Contact Type	Contact Finish	Housing Material	FFC, FCB Thickness [custom]	Termination	Flat Flex Type	Material Flammability Rating	Cable End Type	Number of Positions	Contact Material	Locking Feature	Operating Temperature [Min]	Operating Temperature [Max]	Height Above Board [z]	Height Above Board [z]
Hirose Electric Co Ltd FH58 MATING TOOL (41)
Hirose Electric Co Ltd FH58 MATING TOOL (13)
Hirose Electric Co Ltd FH58 MATING TOOL M(11)
Hirose Electric Co Ltd FH58-21S-0.2SHW(99)	0.2 A	1.25 Áin	0.03 Ám	Black	10	Beige	0.2 mm	0.008 in	Polyamide (PA) Nylon	Right Angle Surface Mount	30 VDC	Contacts Top and Bottom	Gold	Liquid Crystal Polymer (LCP)	0.2 mm	Solder	FPC	UL94 V-0	Notched	21	Phosphor Bronze	Backlock Flip Lock	-55 C	85 °C	0.88 mm	0.035 in
Hirose Electric Co Ltd FH58A-61S-0.2SHW(99)	0.2 A	1.25 Áin	0.03 Ám	Black	10	Beige	0.2 mm	0.008 in	Halogen Free Nylon Polyamide (PA)	Right Angle Surface Mount	30 VDC	Contacts Top and Bottom	Gold	Liquid Crystal Polymer (LCP) Halogen Free	0.2 mm	Solder	FPC	UL94 V-0	Notched	61	Phosphor Bronze	Backlock Flip Lock	-55 C	85 °C	0.88 mm	0.035 in
Hirose Electric Co Ltd FH58-51S-0.2SHW(99)	0.2 A	1.25 Áin	0.03 Ám	Black	10	Beige	0.4 mm	0.016 in	Halogen Free Nylon Polyamide (PA)	Surface Mount	30 VDC	Contacts Top and Bottom	Gold	Liquid Crystal Polymer (LCP) Halogen Free	0.2 mm	Solder	FPC	UL94 V-0	Notched	51	Phosphor Bronze	Backlock Flip Lock	-55 C	85 °C	0.88 mm	0.035 in

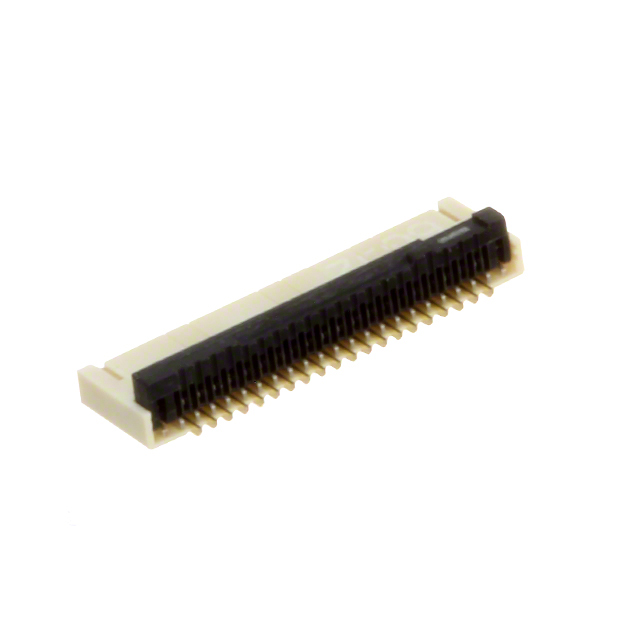

Hirose Electric Co Ltd FH58-41S-0.2SHW(99)	0.2 A	1.25 Áin	0.03 Ám	Black	10	Beige	0.2 mm	0.008 in	Halogen Free Nylon Polyamide (PA)	Right Angle Surface Mount		Contacts Top and Bottom	Gold	Liquid Crystal Polymer (LCP) Halogen Free	0.2 mm	Solder	FPC	UL94 V-0	Notched	41	Phosphor Bronze	Backlock Flip Lock	-55 C	85 °C	0.88 mm	0.035 in

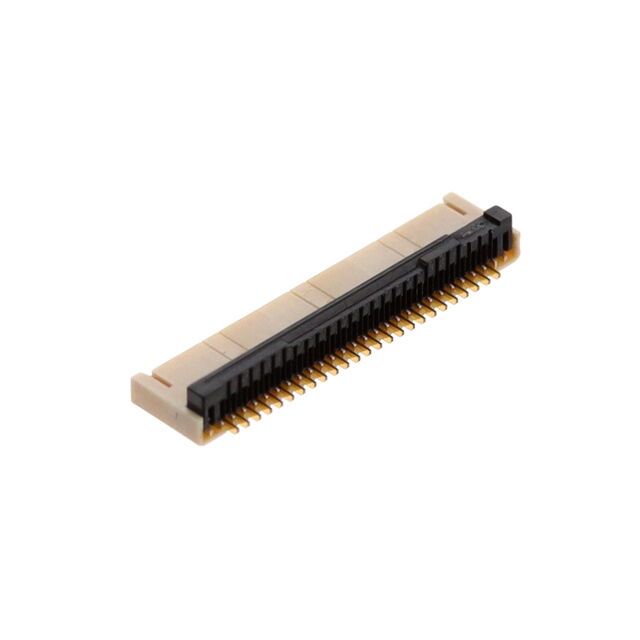

Hirose Electric Co Ltd FH58-51S-0.2SHW	0.2 A	1.25 Áin	0.03 Ám	Black	10	Beige	0.4 mm	0.016 in	Halogen Free Nylon Polyamide (PA)	Surface Mount	30 VDC	Contacts Top and Bottom	Gold	Liquid Crystal Polymer (LCP) Halogen Free	0.2 mm	Solder	FPC	UL94 V-0	Notched	51	Phosphor Bronze	Backlock Flip Lock	-55 C	85 °C	0.88 mm	0.035 in
Hirose Electric Co Ltd FH58-31S-0.2SHW(99)

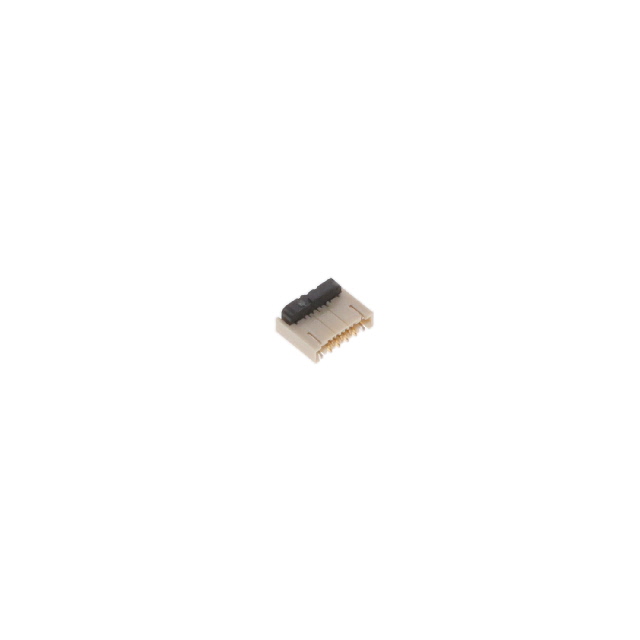

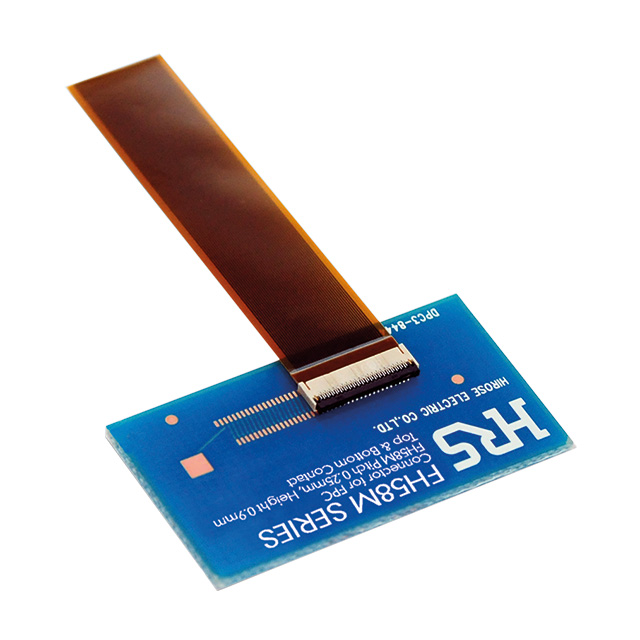

Hirose Electric Co Ltd FH58M-7S-0.25SHW(99)	0.2 A	1.25 Áin	0.03 Ám	Black	10	Beige	0.25 mm	0.01 in	Halogen Free Nylon Polyamide (PA)	Right Angle Surface Mount	30 VDC	Contacts Top and Bottom	Gold	Liquid Crystal Polymer (LCP) Halogen Free	0.2 mm	Solder	FPC	UL94 V-0	Notched	7	Phosphor Bronze	Backlock Flip Lock	-55 C	85 °C	0.88 mm	0.035 in
