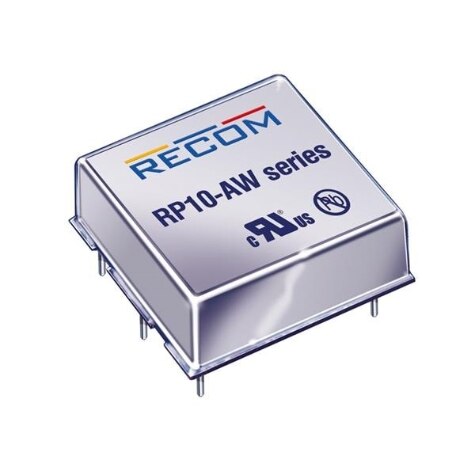

RP10-AW Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W 18-75VIN +/-12VOUT +/-416MA
| Part | Mounting Type | Voltage - Input (Max) [Max] | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Control Features | Voltage - Input (Min) [Min] | Package / Case | Efficiency | Features | Voltage - Output 2 | Applications | Current - Output (Max) [Max] | Current - Output (Max) [Max] | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Voltage - Output 1 | Approval Agency | Type | Current - Output (Max) | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | Through Hole | 75 V | 1.6 kV | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Active Low Enable | 18 V | 6-DIP Module | 89 % | OCP OVP Remote On/Off SCP UVLO | -12 V | ITE (Commercial) | 416 mA | 416 mA | 2 | -40 C | 81 °C | 10 W | 12 V | cURus EAC | Isolated Module | |||
 Recom Power | Through Hole | 75 V | 1.6 kV | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Active Low Enable | 18 V | 6-DIP Module | 89 % | OCP OVP Remote On/Off SCP UVLO | -15 V | ITE (Commercial) | 2 | -40 C | 81 °C | 10 W | 15 V | cURus EAC | Isolated Module | 333 mA | ||||
Recom Power | Through Hole | 36 V | 1.6 kV | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Active High Enable | 9 V | 6-DIP Module | 90 % | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 416 mA | 1 | -40 C | 81 °C | 10 W | 24 V | cURus EAC | Isolated Module | |||||
Recom Power | Through Hole | 36 V | 1.6 kV | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 9 V | 6-DIP Module 5 Leads | 91 % | OCP OVP SCP UVLO | ITE (Commercial) | 670 mA | 1 | -40 C | 81 °C | 10 W | 15 V | cURus EAC | Isolated Module | ||||||
 Recom Power | Through Hole | 36 V | 1.6 kV | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Active Low Enable | 9 V | 6-DIP Module | 87 % | OCP OVP Remote On/Off SCP UVLO | -5 V | ITE (Commercial) | 2 | -40 C | 81 °C | 10 W | 5 V | cURus EAC | Isolated Module | 1 A | ||||
Recom Power | Through Hole | 75 V | 1.6 kV | 0.65 in | 1 in | 1 " | 25.4 mm | 18 V | 6-DIP Module 5 Leads | 90 % | OCP OVP SCP UVLO | ITE (Commercial) | 670 mA | 1 | -40 C | 81 °C | 10 W | 15 V | cURus EAC | Isolated Module | 25.4 mm | 16.5 mm | ||||||
 Recom Power | Through Hole | 36 V | 1.6 kV | 0.65 in | 1 in | 1 " | 25.4 mm | 9 V | 6-DIP Module 5 Leads | 91 % | OCP OVP SCP UVLO | -15 V | ITE (Commercial) | 2 | -40 C | 81 °C | 10 W | 15 V | cURus EAC | Isolated Module | 333 mA | 25.4 mm | 16.5 mm | |||||
Recom Power | Through Hole | 36 V | 1.6 kV | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Active Low Enable | 9 V | 6-DIP Module | 89 % | OCP OVP Remote On/Off SCP UVLO | -12 V | ITE (Commercial) | 416 mA | 416 mA | 2 | -40 C | 81 °C | 10 W | 12 V | cURus EAC | Isolated Module | |||
Recom Power | Through Hole | 36 V | 1.6 kV | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 9 V | 6-DIP Module 5 Leads | 87 % | OCP OVP SCP UVLO | ITE (Commercial) | 2 A | 1 | -40 C | 78 °C | 10 W | 5 V | cURus EAC | Isolated Module | ||||||
Recom Power | Through Hole | 36 V | 1.6 kV | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Active Low Enable | 9 V | 6-DIP Module | 90 % | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 416 mA | 1 | -40 C | 81 °C | 10 W | 24 V | cURus EAC | Isolated Module |
