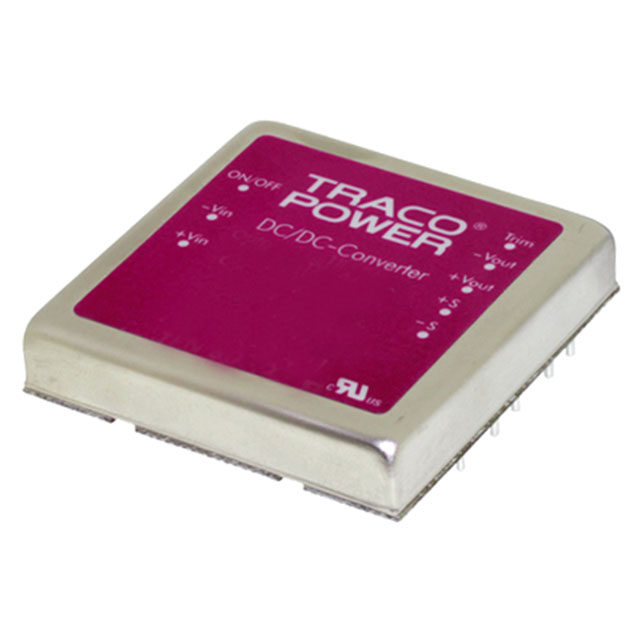

TEN 60 Series

Isolated DC/DC Converters - Through Hole

Manufacturer: Traco Power

Catalog

Isolated DC/DC Converters - Through Hole

Catalog

Isolated DC/DC Converters - Through Hole

Part	Voltage - Output 1	Voltage - Isolation	Applications	Current - Output (Max) [Max]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Efficiency	Package / Case	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Mounting Type	Number of Outputs	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Size / Dimension	Voltage - Output 2	Supplier Device Package	Current - Output (Max)
Traco Power TEN 60-4813WIR	15 V	3000 V	ITE (Commercial) Railway	4 A	Adjustable Output Remote On/Off	-40 °C	85 °C	60 W	94 %	8-DIP Module	18 V	40.7 mm	25.4 mm	1 in	1.6 in	2 in	50.8 mm	Isolated Module	Through Hole	1	75 V
Traco Power TEN 60-1222N	12 V	1.5 kV	ITE (Commercial)		OCP OVP Remote On/Off SCP UVLO	-40 °C	85 °C	60 W	90 %	6-DIP Module	9 V							Isolated Module	Through Hole	2	18 V	2.5 A	2.5 A	0.4 in 10.2 mm 25.4 mm 50.8 mm	-12 V	Module
Traco Power TEN 60-4825WIR	24 V	3000 V	ITE (Commercial) Railway		Adjustable Output Remote On/Off	-40 °C	85 °C	60 W	92 %	8-DIP Module	18 V	40.7 mm	25.4 mm	1 in	1.6 in	2 in	50.8 mm	Isolated Module	Through Hole	2	75 V				-24 V		1.25 A
Traco Power TEN 60-2411WIN	5 V	1.5 kV	ITE (Commercial)	12 A	OCP OTP OVP Remote On/Off SCP UVLO	-40 °C	85 °C	60 W	92 %	6-DIP Module	9 V							Isolated Module	Through Hole	1	36 V			0.4 in 10.2 mm 25.4 mm 50.8 mm		Module
Traco Power TEN 60-2413WIR	15 V	3000 V	ITE (Commercial) Railway	4 A	Adjustable Output Remote On/Off	-40 °C	85 °C	60 W	93 %	8-DIP Module	9 V	40.7 mm	25.4 mm	1 in	1.6 in	2 in	50.8 mm	Isolated Module	Through Hole	1	36 V
Traco Power TEN 60-2423WIR	15 V	3000 V	ITE (Commercial) Railway	2 A	Adjustable Output Remote On/Off	-40 °C	85 °C	60 W	91 %	8-DIP Module	9 V	40.7 mm	25.4 mm	1 in	1.6 in	2 in	50.8 mm	Isolated Module	Through Hole	2	36 V				-15 V
Traco Power TEN 60-7225WIR	24 V	3000 V	ITE (Commercial) Railway		Adjustable Output Remote On/Off	-40 °C	85 °C	60 W	91 %	8-DIP Module	36 V	40.7 mm	25.4 mm	1 in	1.6 in	2 in	50.8 mm	Isolated Module	Through Hole	2	160 V				-24 V		1.25 A
Traco Power TEN 60-2410	3.3 V	1.6 kV	ITE (Commercial)	14 A	OCP OTP OVP Remote On/Off SCP UVLO	-40 C	85 °C	46 W	89 %	8-DIP Module	18 V	50.8 mm	10.2 mm	0.4 "	2 in	2 in	50.8 mm	Isolated Module	Through Hole	1	36 V					Module
Traco Power TEN 60-2418WIR	48 V	3000 V	ITE (Commercial) Railway	1.25 A	Adjustable Output Remote On/Off	-40 °C	85 °C	60 W	92 %	8-DIP Module	9 V	40.7 mm	25.4 mm	1 in	1.6 in	2 in	50.8 mm	Isolated Module	Through Hole	1	36 V
Traco Power TEN 60-2425WIR	24 V	3000 V	ITE (Commercial) Railway		Adjustable Output Remote On/Off	-40 °C	85 °C	60 W	92 %	8-DIP Module	9 V	40.7 mm	25.4 mm	1 in	1.6 in	2 in	50.8 mm	Isolated Module	Through Hole	2	36 V				-24 V		1.25 A
