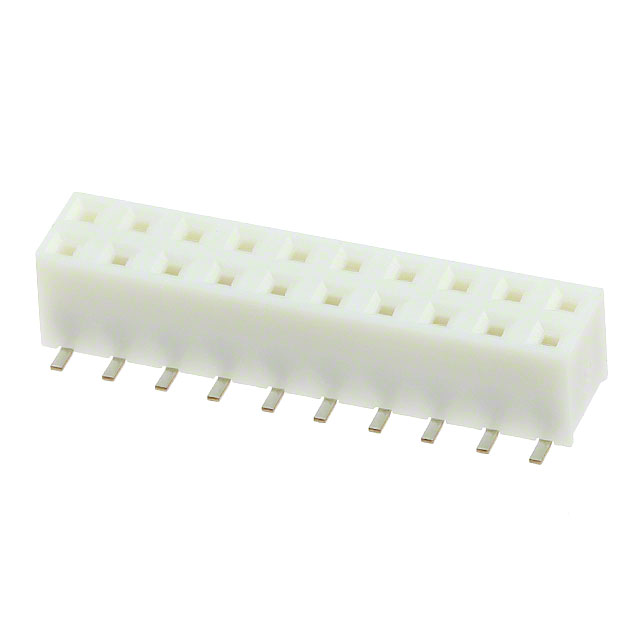

A3-20DA Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT 20POS 0.079 GOLD SMD
| Part | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Applications | Insulation Material | Contact Type | Termination | Insulation Color | Voltage Rating | Style | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Material Flammability Rating | Number of Positions Loaded | Mated Stacking Heights | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Number of Rows [custom] | Fastening Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Phosphor Bronze | 39.4 çin | 1 çm | Square | General Purpose Telecommunications | Polyphenylene Sulfide (PPS) | Female Socket | Solder | Brown | 200 VAC | Board to Board Cable | 0.165 in | 4.2 mm | 8 µin | 0.203 µm | Receptacle | UL94 V-0 | All | 5.1 mm 6 mm | 0.079 " | 2 mm | 2 mm | 0.079 in | 20 | Surface Mount | -55 C | 85 °C | Tin | 2 | Push-Pull | Gold |
