A3C-18DA Series

Catalog

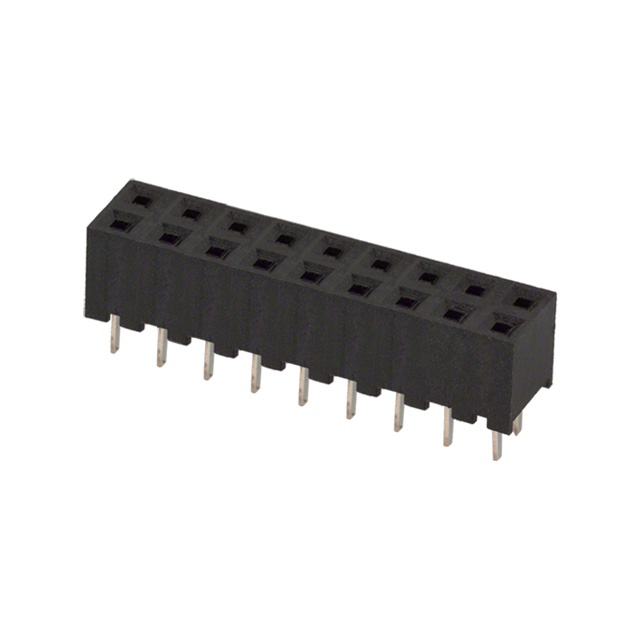

CONN RCPT 18POS 0.079 GOLD PCB

Part	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Applications	Insulation Material	Fastening Type	Contact Finish - Mating	Insulation Height	Insulation Height	Insulation Color	Contact Finish - Post	Mounting Type	Number of Positions	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Type	Number of Positions Loaded	Mated Stacking Heights	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Termination	Number of Rows [custom]	Style	Connector Type	Row Spacing - Mating	Row Spacing - Mating
Hirose Electric Co Ltd A3C-18DA-2DSC(71)	Square	39.4 çin	1 çm	Phosphor Bronze	General Purpose Telecommunications	Polybutylene Terephthalate (PBT)	Push-Pull	Gold	0.165 in	4.2 mm	Black	Tin	Through Hole	18	2 mm	0.079 in	UL94 V-0	Female Socket	All	5.1 mm 6 mm	200 VAC	8 µin	0.203 µm	-55 C	85 °C	0.079 "	2 mm	Solder	2	Board to Board Cable	Receptacle	2 mm	0.079 in
Hirose Electric Co Ltd A3C-18DA-2DSC	Square	39.4 çin	1 çm	Phosphor Bronze	General Purpose Telecommunications	Polybutylene Terephthalate (PBT)	Push-Pull	Gold	0.165 in	4.2 mm	Black	Tin	Through Hole	18	2 mm	0.079 in	UL94 V-0	Female Socket	All	5.1 mm 6 mm	200 VAC	8 µin	0.203 µm	-55 C	85 °C	0.079 "	2 mm	Solder	2	Board to Board Cable	Receptacle	2 mm	0.079 in
