DSC8121 Series

Catalog

OSCILLATOR MEMS 10MHZ TO 170MHZ ±10PPM (STABILITY) LVCMOS 55% 2.5V/3.3V 6-PIN VDFN SMD TUBE

Part	Base Resonator	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Supply (Disable) (Max) [Max]	Programmable Type	Frequency Stability	Package / Case	Available Frequency Range [Max]	Available Frequency Range [Min]	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Supply (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output	Function	Mounting Type	Frequency Stability (Total)

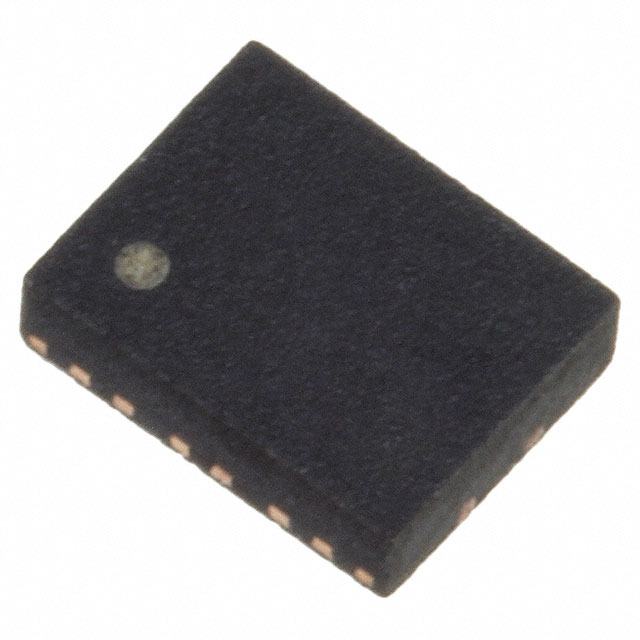

Microchip Technology DSC8121CL5	MEMS	3.2 mm	2.5 mm	0.126 in	0.098 in	3.6 V	2.25 V	22 mA	Blank (User Must Program)	10 ppm	6-SMD No Lead	170 MHz	10 MHz	XO (Standard)	0.035 "	0.9 mm	35 mA	-40 °C	105 ░C	CMOS	Enable/Disable	Surface Mount
Microchip Technology DSC8121CI2	MEMS	3.2 mm	2.5 mm	0.126 in	0.098 in	3.6 V	2.25 V		Blank (User Must Program)		6-SMD No Lead	170 MHz	10 MHz	XO (Standard)	0.035 "	0.9 mm	35 mA	-40 °C	85 °C	CMOS	Enable/Disable	Surface Mount	25 ppm
Microchip Technology DSC8121CI2T	MEMS	3.2 mm	2.5 mm	0.126 in	0.098 in	3.6 V	2.25 V	22 mA	Blank (User Must Program)	25 ppm	6-SMD No Lead	100 MHz	10 MHz	XO (Standard)	0.035 "	0.9 mm	35 mA	-40 °C	85 °C	CMOS	Enable/Disable	Surface Mount
Microchip Technology DSC8121DI2	MEMS	2.5 mm	2 mm	0.098 "	0.079 in	3.6 V	2.25 V		Blank (User Must Program)		6-SMD No Lead	170 MHz	10 MHz	XO (Standard)	0.035 "	0.9 mm	35 mA	-40 °C	85 °C	CMOS	Enable/Disable	Surface Mount	25 ppm
Microchip Technology DSC8121CL5T	MEMS	3.2 mm	2.5 mm	0.126 in	0.098 in	3.6 V	2.25 V	22 mA	Blank (User Must Program)		6-SMD No Lead	170 MHz	10 MHz	XO (Standard)	0.035 "	0.9 mm	35 mA	-40 °C	105 ░C	CMOS	Enable/Disable	Surface Mount	10 ppm

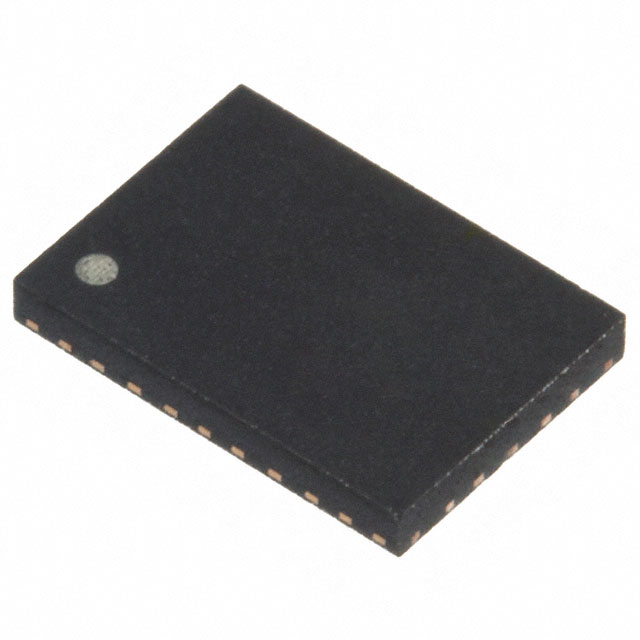

Microchip Technology DSC8121AE5	MEMS	7 mm	5 mm	0.276 "	0.197 "	3.6 V	2.25 V		Blank (User Must Program)		6-SMD No Lead	170 MHz	10 MHz	XO (Standard)	0.035 "	0.9 mm	35 mA	-20 C	70 °C	CMOS	Enable/Disable	Surface Mount	10 ppm
Microchip Technology DSC8121CI1	MEMS	3.2 mm	2.5 mm	0.126 in	0.098 in	3.6 V	2.25 V	22 mA	Blank (User Must Program)	50 ppm	6-SMD No Lead	170 MHz	10 MHz	XO (Standard)	0.035 "	0.9 mm	35 mA	-40 °C	85 °C	CMOS	Enable/Disable	Surface Mount
Microchip Technology DSC8121DM2	MEMS	2.5 mm	2 mm	0.098 "	0.079 in	3.6 V	2.25 V		Blank (User Must Program)	25 ppm	4-SMD No Lead	170 MHz	10 MHz	XO (Standard)	0.035 "	0.9 mm	22 mA	-55 °C	125 °C	CMOS	Enable/Disable	Surface Mount
Microchip Technology DSC8121AI2	MEMS	7 mm	5 mm	0.276 "	0.197 "	3.6 V	2.25 V		Blank (User Must Program)		6-SMD No Lead	170 MHz	10 MHz	XO (Standard)	0.035 "	0.9 mm	35 mA	-40 °C	85 °C	CMOS	Enable/Disable	Surface Mount	25 ppm
Microchip Technology DSC8121BM2	MEMS	5 mm	3.2 mm	0.197 in	0.126 "	3.6 V	2.25 V		Blank (User Must Program)		6-VDFN	170 MHz	10 MHz	XO (Standard)	0.035 "	0.9 mm	35 mA	-55 °C	125 °C	CMOS	Enable/Disable	Surface Mount	25 ppm
