CM6050 Series

Catalog

COMMON MODE CHOKES / FILTERS 300 OHM 20%

Part	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Voltage Rating - DC	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Max)	Impedance @ Frequency	Number of Lines	Filter Type	DC Resistance (DCR) (Max) [Max]

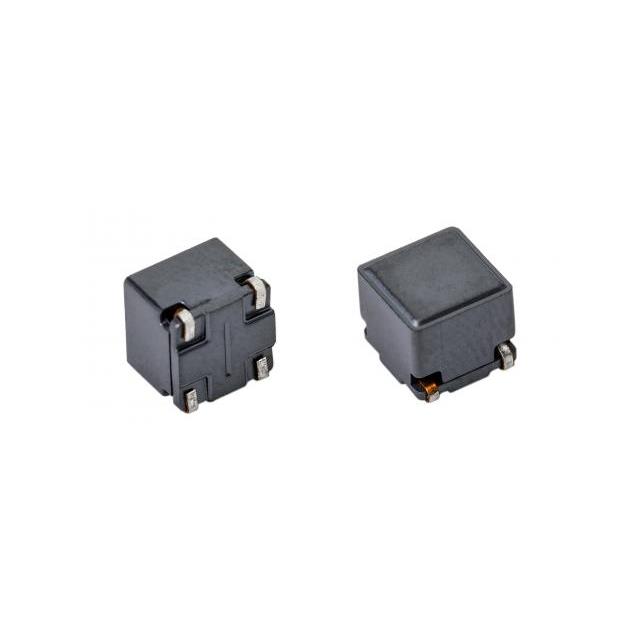

Laird Technologies EMI CM6050M301R-10	2.5 mm 5 mm	0.098 in 0.197 in	0.197 in	0.197 "	5 mm	5 mm	Nonstandard	80 V	Surface Mount	-55 C	150 °C	3.7 A	300 Ohms	2	Power Line	14.3 mOhm
