E2102S Series
Manufacturer: Prysmian Group
Beta
⌘K

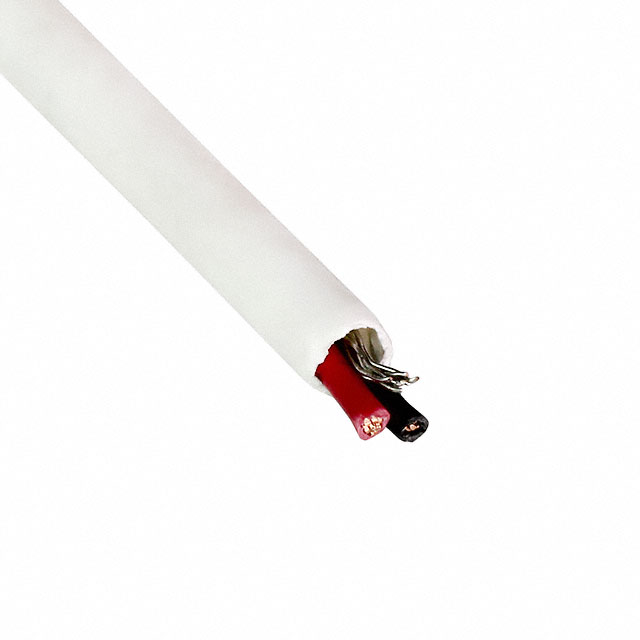

CABLE 2COND 22AWG NATURAL
| Part | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Shield Material | Usage | Conductor Material | Length | Length | Number of Conductors | Voltage | Conductor Insulation | Features | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Shield Coverage | Jacket Color | Shield Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Multi-Conductor | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Flexfoil® | Alarm Security Sound | Copper Bare | 304.8 m | 1000 ft | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) | Drain Wire | 0.381 mm | 0.015 in | 3.25 mm | 0.128 in | 22 AWG | 100 % | Natural | Foil | ||
 Prysmian Group | Multi-Conductor | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Flexfoil® | Alarm Security Sound | Copper Bare | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) | Drain Wire | 0.381 mm | 0.015 in | 3.25 mm | 0.128 in | 22 AWG | 100 % | Natural | Foil | 100 ft | 30.5 m |
Prysmian Group | Multi-Conductor | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Alarm Security Sound | Copper Bare | 15.24 m 304.8 m | 50 ft 1000 ft | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) | Drain Wire | 0.381 mm | 0.015 in | 3.25 mm | 0.128 in | 22 AWG | White | Foil | 25 ft 100 ft | 7.62 m 30.5 m | ||
Prysmian Group | Multi-Conductor | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Flexfoil® | Alarm Security Sound | Copper Bare | 152.4 m | 500 ft | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) | Drain Wire | 0.381 mm | 0.015 in | 3.25 mm | 0.128 in | 22 AWG | 100 % | Natural | Foil | ||
Prysmian Group | Multi-Conductor | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Alarm Security Sound | Copper Bare | 304.8 m | 1000 ft | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) | Drain Wire | 0.381 mm | 0.015 in | 3.25 mm | 0.128 in | 22 AWG | Natural | Foil | ||||
Prysmian Group | Multi-Conductor | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Flexfoil® | Alarm Security Sound | Copper Bare | 304.8 m | 1000 ft | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) | Drain Wire | 0.381 mm | 0.015 in | 3.25 mm | 0.128 in | 22 AWG | 100 % | White | Foil | 25 ft 100 ft | 7.62 m 30.5 m |
Prysmian Group | Multi-Conductor | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Alarm Security Sound | Copper Bare | 152.4 m | 500 ft | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) | Drain Wire | 0.381 mm | 0.015 in | 3.25 mm | 0.128 in | 22 AWG | Natural | Foil | ||||
 Prysmian Group | Multi-Conductor | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Flexfoil® | Copper Bare | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) | Drain Wire | 0.381 mm | 0.015 in | 3.25 mm | 0.128 in | 22 AWG | 100 % | Natural | Foil | |||||
Prysmian Group | Multi-Conductor | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Copper Bare | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) | Drain Wire | 0.381 mm | 0.015 in | 3.25 mm | 0.128 in | 22 AWG | Natural | Foil | |||||||
Prysmian Group | Multi-Conductor | 75 ░C | 0 °C | Plenum Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Alarm Security Sound | Copper Bare | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) | Drain Wire | 0.381 mm | 0.015 in | 3.25 mm | 0.128 in | 22 AWG | Natural | Foil | 100 ft | 30.5 m |
