IRFH5215 Series
Manufacturer: INFINEON
Beta
⌘K

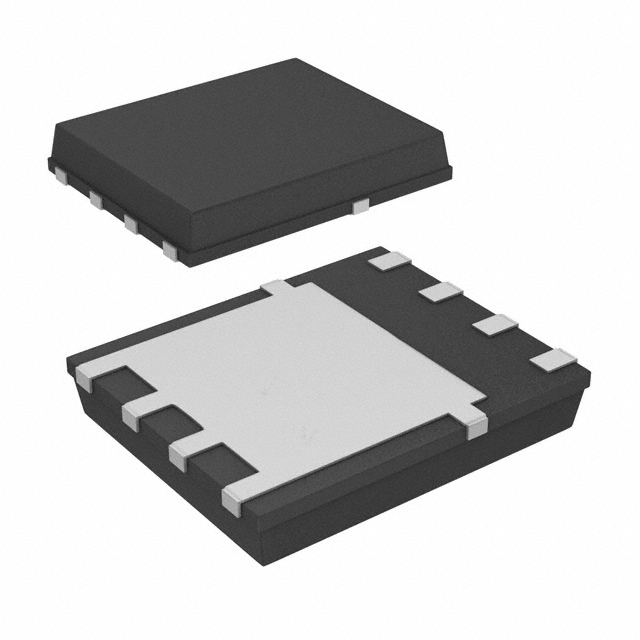

IR MOSFET™ N-CHANNEL POWER MOSFET ; SUPERSO8 5X6 PACKAGE; 58 MOHM;
| Part | Current - Continuous Drain (Id) @ 25°C | Supplier Device Package | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Drain to Source Voltage (Vdss) | Vgs (Max) | FET Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Drive Voltage (Max Rds On, Min Rds On) | Gate Charge (Qg) (Max) @ Vgs [Max] | Technology | Input Capacitance (Ciss) (Max) @ Vds [Max] | Package / Case | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 5 A 27 A | PQFN (5x6) | 58 mOhm | 5 V | 150 V | 20 V | N-Channel | Surface Mount | 150 °C | -55 °C | 10 V | 32 nC | MOSFET (Metal Oxide) | 1350 pF | 8-VQFN Exposed Pad | 3.6 W 104 W |
