MP34DT01 Series
Manufacturer: STMicroelectronics
Beta
⌘K

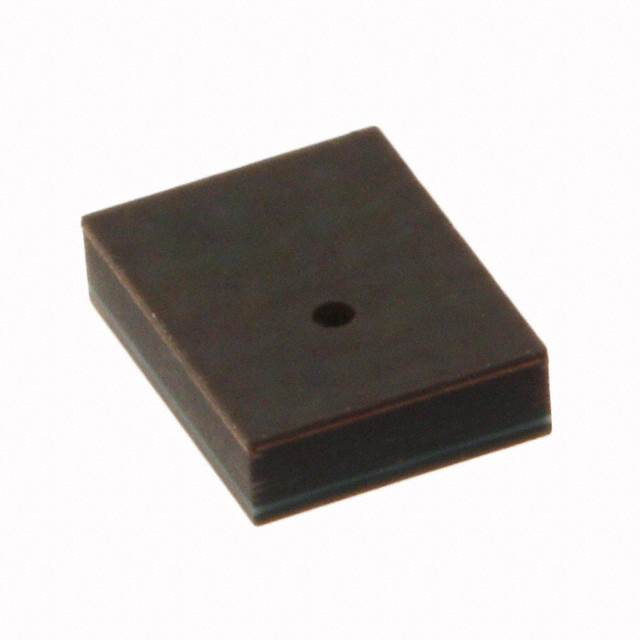

MIC OMNI-DIRECTIONAL -26DB 3.6V RECTANGULAR SOLDER PAD
| Part | Port Location | Termination | Voltage Range [Min] | Voltage Range [Max] | Shape | Type | Direction | Frequency Range [Min] | Frequency Range [Max] | S/N Ratio | Output Type | Sensitivity | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Rated | Current - Supply | Height (Max) [Max] [z] | Height (Max) [z] | Supplied Contents | Function | Utilized IC / Part | Secondary Attributes | Contents | Embedded | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | Top | Solder Pads | 1.64 V | 3.6 V | Rectangular | MEMS (Silicon) | Omnidirectional | 100 Hz | 10 kHz | 63 dB | Digital PDM | -26 dB | 0.118 in | 3 mm | 4 mm | 0.157 in | 1.8 V | 600 µA | 0.043 in | 1.1 mm | |||||||

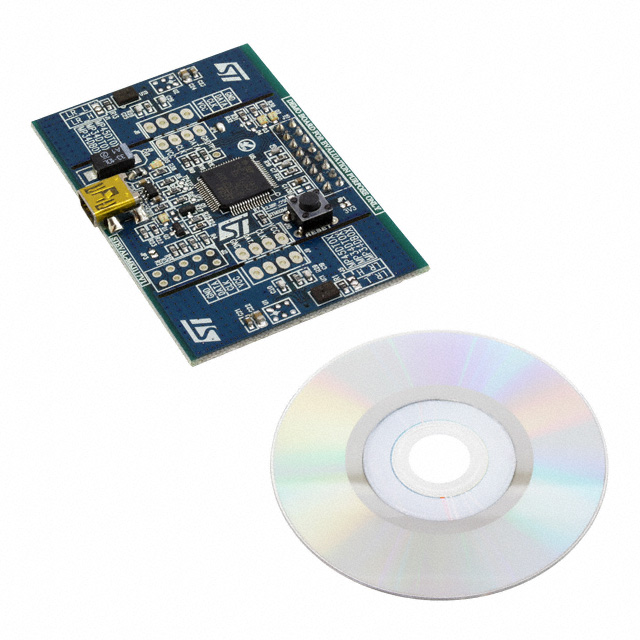

 STMicroelectronics | Audio | Board(s) | MEMS Omnidirectional Microphones | MP34DT01 STM32F107RC | Digital Output | Board(s) | 32-Bit MCU | ||||||||||||||||||||
STMicroelectronics | Top | Solder Pads | 1.64 V | 3.6 V | Rectangular | MEMS (Silicon) | Omnidirectional | 100 Hz | 10 kHz | 63 dB | Digital PDM | -26 dB | 0.118 in | 3 mm | 4 mm | 0.157 in | 1.8 V | 600 µA | 0.043 in | 1.1 mm | |||||||

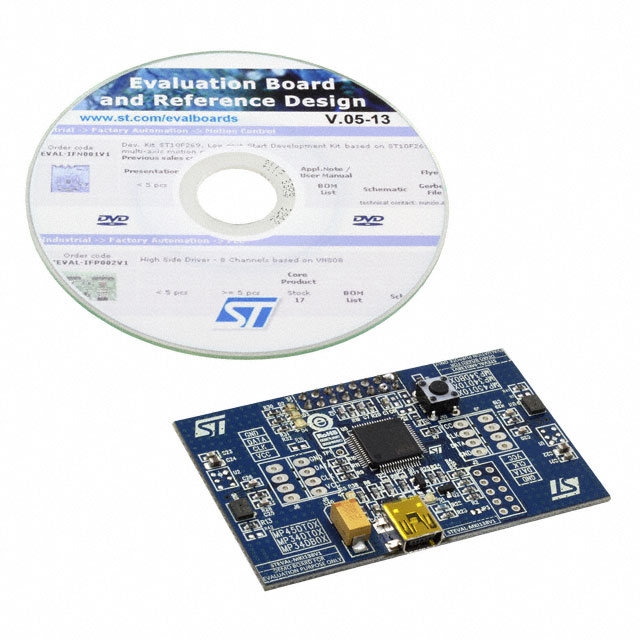

 STMicroelectronics | Audio | Board(s) | MEMS Omnidirectional Microphones | MP34DT01 STM32F107RC | Digital Output | Board(s) | 32-Bit MCU |
