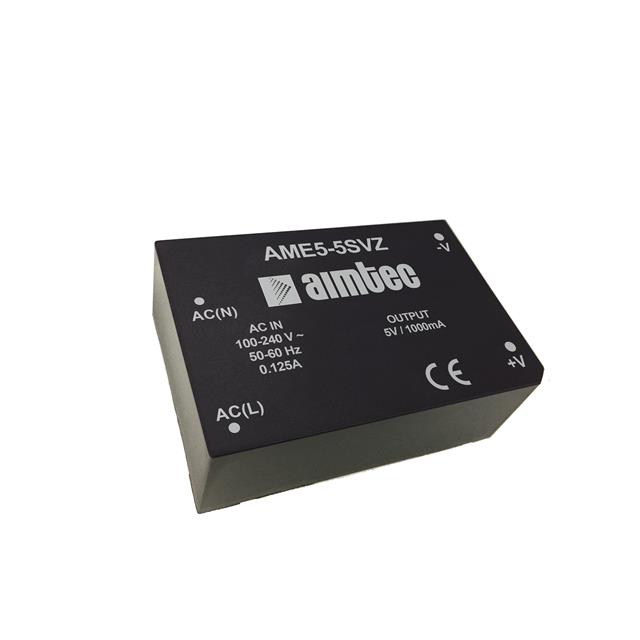

AME5 Series
Manufacturer: aimtec
Beta
⌘K
AC/DC CONVERTER 12V 5W
| Part | Type | Number of Outputs | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Current - Output (Max) [Max] | Features | Voltage - Output 1 | Applications | Mounting Type | Package / Case | Weight [custom] | Weight [custom] | Line Regulation | Efficiency | Load Regulation | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | Enclosed | 1 | 85 VAC 100 V | 264 VAC 370 VDC | 20.5 mm | 36 mm | 1.91 in | 0.81 in | 48.5 mm | 1.42 in | 420 mA | Universal Input | 12 V | ITE (Commercial) | Through Hole | 8-DIP Module 5 Leads | 55 g | 0.121 lb | 0.5 % | 79 % | ±1% | 5 W | -40 °C | 85 °C |
 aimtec | Enclosed | 1 | 20.5 mm | 36 mm | 1.91 in | 0.81 in | 48.5 mm | 1.42 in | 550 mA | Universal Input | 9 V | ITE (Commercial) | Through Hole | 8-DIP Module 5 Leads | 55 g | 0.121 lb | 0.5 % | 77 % | ±1% | 5 W | -40 °C | 85 °C |
