MP34DT06 Series

Microphone coupon board based on the MP34DT06J digital MEMS

Catalog

Microphone coupon board based on the MP34DT06J digital MEMS

Part	Contents	Utilized IC / Part	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Port Location	Direction	Termination	Voltage - Rated	Output Type	Current - Supply	Sensitivity	S/N Ratio	Shape	Frequency Range [Min]	Frequency Range [Max]	Height (Max) [Max] [z]	Height (Max) [z]

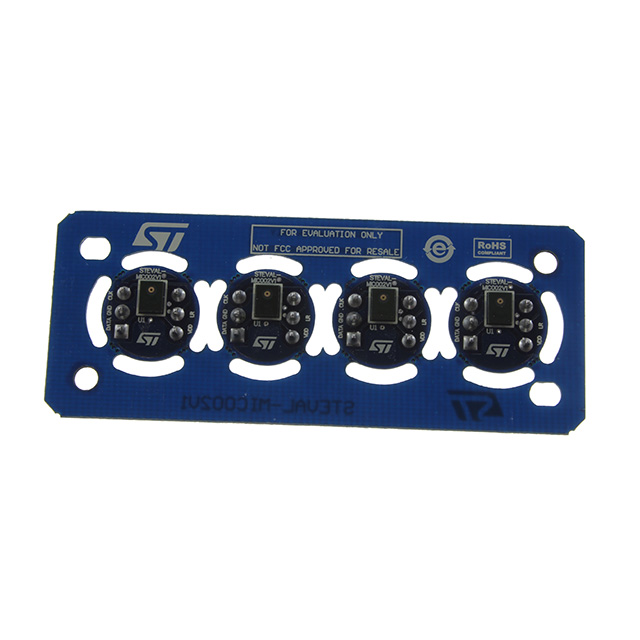

STMicroelectronics STEVAL-MIC002V1	Board(s)	MP34DT06J	Audio

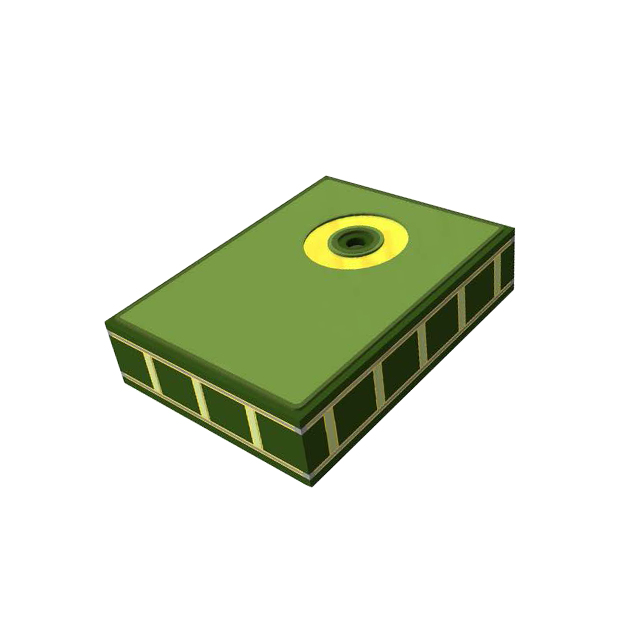

STMicroelectronics MP34DT06JTR			MEMS (Silicon)	0.157 "	0.118 "	4 mm	3 mm	Top	Omnidirectional	Solder Pads	1.8 V	Digital PDM	650 µA	-26 dB	64 dB	Rectangular	100 Hz	10 kHz	0.043 in	1.1 mm

Catalog

Microphone coupon board based on the MP34DT06J digital MEMS

Description

The MP34DT06J is an ultra-compact, low-power, omnidirectional, digital MEMS microphone built with a capacitive sensing element and an IC interface. The sensing element, capable of detecting acoustic waves, is manufactured using a specialized silicon micromachining process dedicated to producing audio sensors. The IC interface is manufactured using a CMOS process that allows designing a dedicated circuit able to provide a digital signal externally in PDM format. The MP34DT06J is a low-distortion digital microphone with a 64 dB signal-to-noise ratio and –26 dBFS ±1 dB sensitivity. The MP34DT06J is available in a top-port, SMD-compliant, EMI-shielded package and is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.
