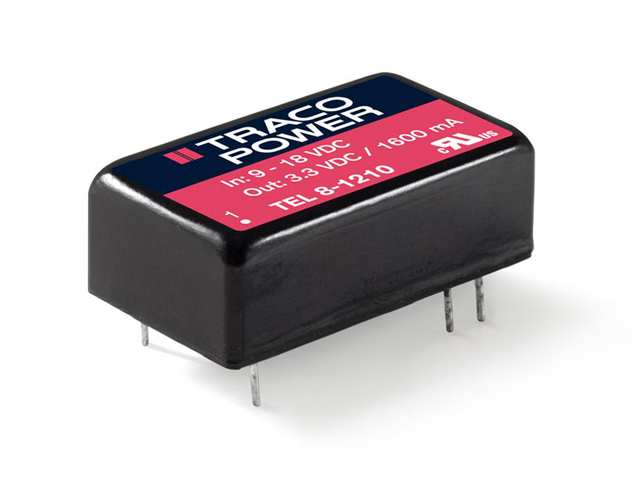

TEL 8 Series

Isolated DC/DC Converters - Through Hole

Manufacturer: Traco Power

Catalog

Isolated DC/DC Converters - Through Hole

Catalog

Isolated DC/DC Converters - Through Hole

Part	Type	Package / Case	Power (Watts)	Mounting Type	Efficiency	Voltage - Output 2	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Isolation	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Features	Current - Output (Max) [Max]
Traco Power TEL 8-4822	Isolated Module	16-DIP Module 6 Leads	8 W	Through Hole	86 %	-12 V	75 V	36 V	2	1.5 kV	ITE (Commercial)	80 °C	-40 C	12 V	335 mA	335 mA	14 mm	0.33 in	0.55 "	8.5 mm	0.95 in	24.1 mm	SCP
Traco Power TEL 8-4813	Isolated Module	16-DIP Module 6 Leads	8 W	Through Hole	85 %		75 V	36 V	1	1.5 kV	ITE (Commercial)	80 °C	-40 C	15 V		535 mA	14 mm	0.33 in	0.55 "	8.5 mm	0.95 in	24.1 mm	SCP
Traco Power TEL 8-2423WI	Isolated Module	16-DIP Module 6 Leads	8 W	Through Hole	86 %	-15 V	36 V	9 V	2	1.5 kV	ITE (Commercial)	80 ¯C	-40 °C	15 V		265 mA	14 mm	0.33 in	0.55 "	8.5 mm	0.95 in	24.1 mm	SCP	265 mA

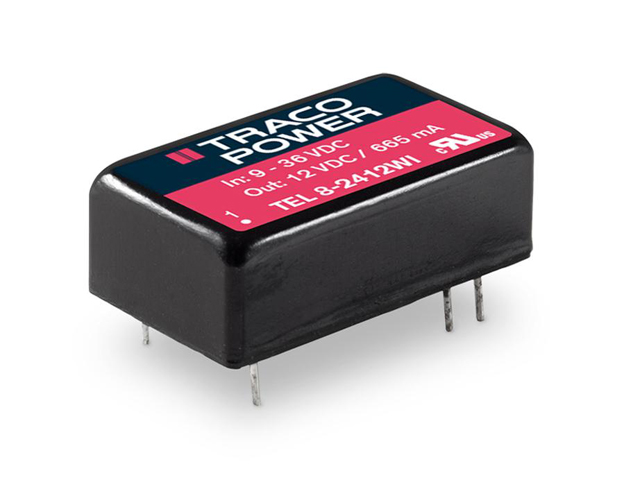

Traco Power TEL 8-4815WI	Isolated Module	16-DIP Module 6 Leads	8 W	Through Hole	86 %		75 V	18 V	1	1.5 kV	ITE (Commercial)	80 ¯C	-40 °C	24 V		335 mA	14 mm	0.33 in	0.55 "	8.5 mm	0.95 in	24.1 mm	SCP
Traco Power TEL 8-4823	Isolated Module	16-DIP Module 6 Leads	8 W	Through Hole	86 %	-15 V	75 V	36 V	2	1.5 kV	ITE (Commercial)	80 °C	-40 C	15 V		265 mA	14 mm	0.33 in	0.55 "	8.5 mm	0.95 in	24.1 mm	SCP	265 mA
Traco Power TEL 8-1212	Isolated Module	16-DIP Module 6 Leads	8 W	Through Hole	84 %		18 V	9 V	1	1.5 kV	ITE (Commercial)	80 °C	-40 C	12 V		665 mA	14 mm	0.33 in	0.55 "	8.5 mm	0.95 in	24.1 mm	SCP
