DF13EA Series

Catalog

CONN HEADER SMD 10POS 1.25MM

Part	Features	Mounting Type	Number of Rows [custom]	Contact Shape	Insulation Height	Insulation Height	Fastening Type	Insulation Material	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Contact Type	Voltage Rating	Connector Type	Style	Contact Material	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Current Rating (Amps)	Mated Stacking Heights	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]
Hirose Electric Co Ltd DF13EA-10DP-1.25V(35)
Hirose Electric Co Ltd DF13EA-40DP-1.25V(22)	Solder Retention	Surface Mount	2	Square	4.8 mm	0.189 in	Push-Pull	Nylon Polyamide (PA)	Beige	0.049 in	1.25 mm	40	All	1.25 mm	0.049 in	UL94 V-0	Male Pin	29.9 VAC/DC	Header	Board to Cable/Wire	Brass	Shrouded - 2 Wall	85 °C	-35 °C	Solder	1 A
Hirose Electric Co Ltd DF13EA-10DP-1.25V(51)	Solder Retention	Surface Mount	2	Square	4.8 mm	0.189 in	Push-Pull	Nylon Polyamide (PA)	Beige	0.049 in	1.25 mm	10	All	1.25 mm	0.049 in	UL94 V-0	Male Pin	150 VDC	Header	Board to Cable/Wire	Brass	Shrouded - 4 Wall	85 °C	-35 °C	Solder		5.8 mm	39.4 çin	1 çm	Tin-Copper	Gold	8 µin	0.203 µm	2.4 mm	0.094 in

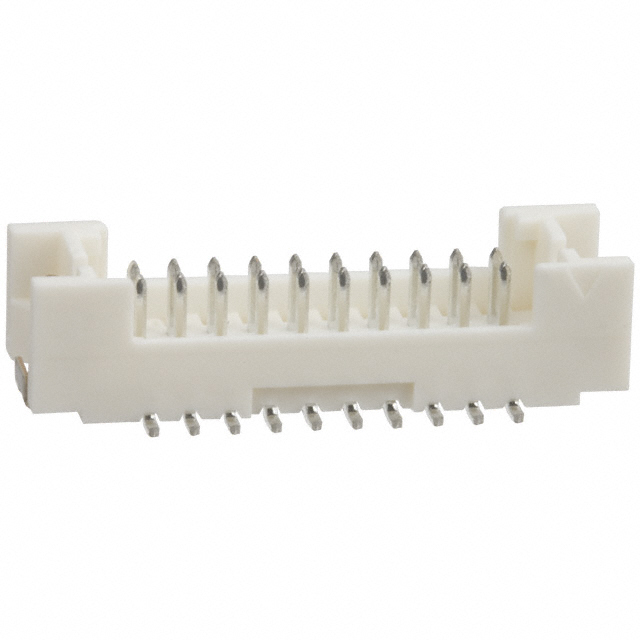

Hirose Electric Co Ltd DF13EA-20DP-1.25V(22)	Solder Retention	Surface Mount	2	Square	4.8 mm	0.189 in	Detent Lock	Nylon Polyamide (PA)	Beige	0.049 in	1.25 mm	20	All	1.25 mm	0.049 in	UL94 V-0	Male Pin	150 VAC	Header	Board to Cable/Wire	Brass	Shrouded - 4 Wall	85 °C	-35 °C	Solder	1 A		39.4 çin	1 çm	Tin				2.4 mm	0.094 in	39.4 µin	1 µm
Hirose Electric Co Ltd DF13EA-40DP-1.25V(82)	Solder Retention	Surface Mount	2	Square	4.8 mm	0.189 in	Push-Pull	Nylon Polyamide (PA)	Beige	0.049 in	1.25 mm	40	All	1.25 mm	0.049 in	UL94 V-0	Male Pin	150 VDC	Header	Board to Cable/Wire	Brass	Shrouded - 4 Wall	85 °C	-35 °C	Solder		5.8 mm	39.4 çin	1 çm	Tin-Copper	Gold	30 Áin	0.76 Ám	2.4 mm	0.094 in
Hirose Electric Co Ltd DF13EA-10DP-1.25V(84)	Solder Retention	Surface Mount	2	Square	4.8 mm	0.189 in	Push-Pull	Nylon Polyamide (PA)	Beige	0.049 in	1.25 mm	10	All	1.25 mm	0.049 in	UL94 V-0	Male Pin	29.9 VAC/DC	Header	Board to Cable/Wire	Brass	Shrouded - 2 Wall	85 °C	-35 °C	Solder	1 A
Hirose Electric Co Ltd DF13EA-40DP-1.25V(65)	Solder Retention	Surface Mount	2	Square	4.8 mm	0.189 in	Push-Pull	Nylon Polyamide (PA)	Beige	0.049 in	1.25 mm	40	All	1.25 mm	0.049 in	UL94 V-0	Male Pin	29.9 VAC/DC	Header	Board to Cable/Wire	Brass	Shrouded - 2 Wall	85 °C	-35 °C	Solder	1 A
Hirose Electric Co Ltd DF13EA-10DP-1.25V(21)	Solder Retention	Surface Mount	2	Square	4.8 mm	0.189 in	Push-Pull	Nylon Polyamide (PA)	Beige	0.049 in	1.25 mm	10	All	1.25 mm	0.049 in	UL94 V-0	Male Pin	150 VDC	Header	Board to Cable/Wire	Brass	Shrouded - 4 Wall	85 °C	-35 °C	Solder		5.8 mm				Tin-Copper					39.4 µin	1 µm
Hirose Electric Co Ltd DF13EA-30DP-1.25V(83)
Hirose Electric Co Ltd DF13EA-20DP-1.25V(25)	Solder Retention	Surface Mount	2	Square	4.8 mm	0.189 in	Push-Pull	Nylon Polyamide (PA)	Beige	0.049 in	1.25 mm	20	All	1.25 mm	0.049 in	UL94 V-0	Male Pin	150 VDC	Header	Board to Cable/Wire	Brass	Shrouded - 4 Wall	85 °C	-35 °C	Solder		5.8 mm				Tin-Copper			2.4 mm	0.094 in	39.4 µin	1 µm
