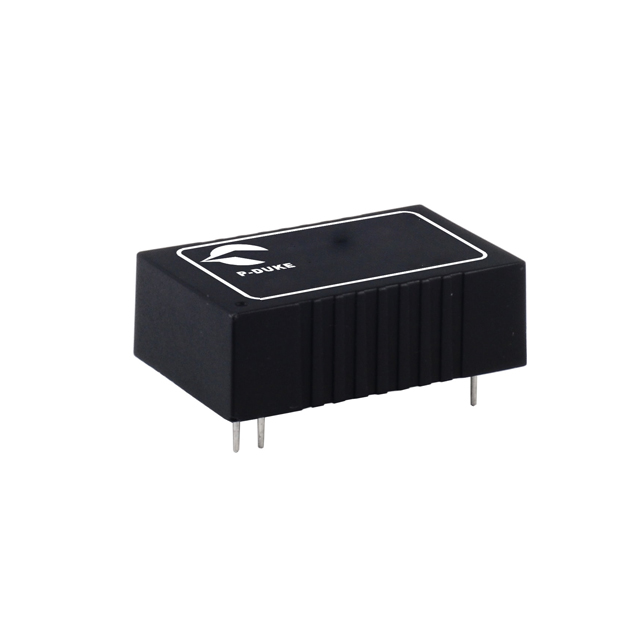

MPP10 Series

Catalog

DC DC CONVERTER 5V 10W

Part	Package / Case	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Approval Agency	Current - Output (Max) [Max]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Type	Applications	Efficiency	Voltage - Output 1	Mounting Type	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)
P-DUKE Technology MPP10-05S05A	24-DIP Module 5 Leads	Adjustable Output	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	CB CE cURus FCC	2 A	5000 V	105 C	-40 °C	10 W	4.5 V	9 V	Isolated Module	ITE (Commercial) Medical	84 %	5 V	Through Hole
P-DUKE Technology MPP10-48S05WB	24-DIP Module 6 Leads	Adjustable Output	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	CB CE cURus FCC	2 A	5000 V	105 C	-40 °C	10 W	18 V	75 V	Isolated Module	ITE (Commercial) Medical	86.5 %	5 V	Through Hole
P-DUKE Technology MPP10-24S24WA	24-DIP Module 5 Leads	Adjustable Output	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	CB CE cURus FCC	416 mA	5000 V	105 C	-40 °C	10 W	9 V	36 V	Isolated Module	ITE (Commercial) Medical	89 %	24 V	Through Hole
P-DUKE Technology MPP10-24S12WB	24-DIP Module 6 Leads	Adjustable Output	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	CB CE cURus FCC	830 mA	5000 V	105 C	-40 °C	10 W	9 V	36 V	Isolated Module	ITE (Commercial) Medical	89 %	12 V	Through Hole
P-DUKE Technology MPP10-24D12WB	24-DIP Module 6 Leads	Adjustable Output	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	CB CE cURus FCC	416 mA	5000 V	105 C	-40 °C	10 W	9 V	36 V	Isolated Module	ITE (Commercial) Medical	89 %	12 V	Through Hole	416 mA	-12 V
P-DUKE Technology MPP10-24D05WB	24-DIP Module 6 Leads	Adjustable Output	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	CB CE cURus FCC		5000 V	105 C	-40 °C	10 W	9 V	36 V	Isolated Module	ITE (Commercial) Medical	85 %	5 V	Through Hole		-5 V	1 A
P-DUKE Technology MPP10-24S05WB	24-DIP Module 6 Leads	Adjustable Output	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	CB CE cURus FCC	2 A	5000 V	105 C	-40 °C	10 W	9 V	36 V	Isolated Module	ITE (Commercial) Medical	86.5 %	5 V	Through Hole
P-DUKE Technology MPP10-48S24WA	24-DIP Module 5 Leads	Adjustable Output	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	CB CE cURus FCC	416 mA	5000 V	105 C	-40 °C	10 W	18 V	75 V	Isolated Module	ITE (Commercial) Medical	88.5 %	24 V	Through Hole
