WAF300 Series

Catalog

DC/DC CONVERTER 24V 300W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Applications	Approval Agency	Voltage - Output 1	Efficiency	Power (Watts)	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Number of Outputs	Voltage - Isolation	Type	Mounting Type	Standard Number

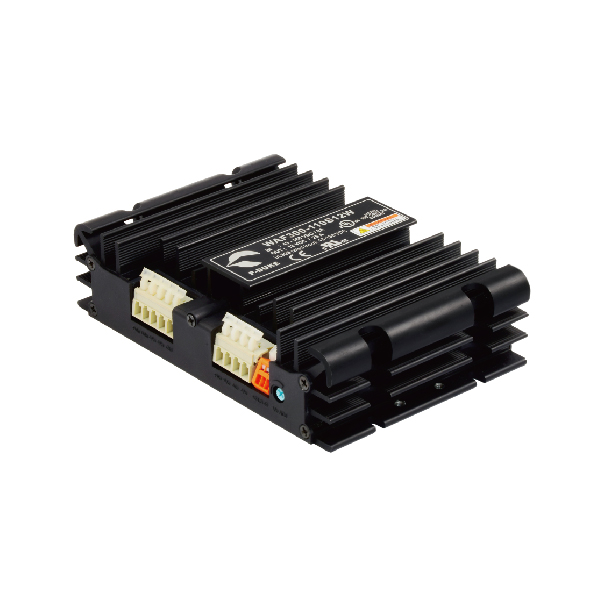

P-DUKE Technology WAF300-110S24W	-40 °C	100 °C	43 V	6 "	4.01 in	152.4 mm	101.9 mm	1.52 in	38.6 mm	Industrial ITE (Commercial) Railway	CE cULus cURus	24 V	91 %	300 W	160 V	12.5 A	1	3000 V	Enclosed	Chassis Mount	50155 60950-1 62368-1 UL 508
P-DUKE Technology WAF300-48S28W	-40 °C	100 °C	18 V	6 "	4.01 in	152.4 mm	101.9 mm	1.52 in	38.6 mm	Industrial ITE (Commercial) Railway	CE cULus cURus	28 V	91 %	302 W	75 V	10.8 A	1	3000 V	Enclosed	Chassis Mount	50155 60950-1 62368-1 UL 508
P-DUKE Technology WAF300-48S24W	-40 °C	100 °C	18 V	6 "	4.01 in	152.4 mm	101.9 mm	1.52 in	38.6 mm	Industrial ITE (Commercial) Railway	CE cULus cURus	24 V	92 %	300 W	75 V	12.5 A	1	3000 V	Enclosed	Chassis Mount	50155 60950-1 62368-1 UL 508
P-DUKE Technology WAF300-48S12W	-40 °C	100 °C	18 V	6 "	4.01 in	152.4 mm	101.9 mm	1.52 in	38.6 mm	Industrial ITE (Commercial) Railway	CE cULus cURus	12 V	89 %	300 W	75 V	25 A	1	3000 V	Enclosed	Chassis Mount	50155 60950-1 62368-1 UL 508
