TEN 50 Series

Catalog

DC DC CONVERTER 12V 50W

Part	Number of Outputs	Efficiency	Voltage - Output 1	Applications	Current - Output (Max) [Max]	Voltage - Isolation	Power (Watts)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Type	Package / Case	Voltage - Input (Min) [Min]	Supplier Device Package
Traco Power TEN 50-2412WI	1	92 %	12 V	ITE (Commercial)	4.17 A	1.5 kV	50 W	Through Hole	80 ¯C	-40 °C	36 V	1 "	0.43 in	50.8 mm	25.4 mm	2 in	11 mm	OCP OTP Remote On/Off SCP	Isolated Module	6-DIP Module	9 V	Module

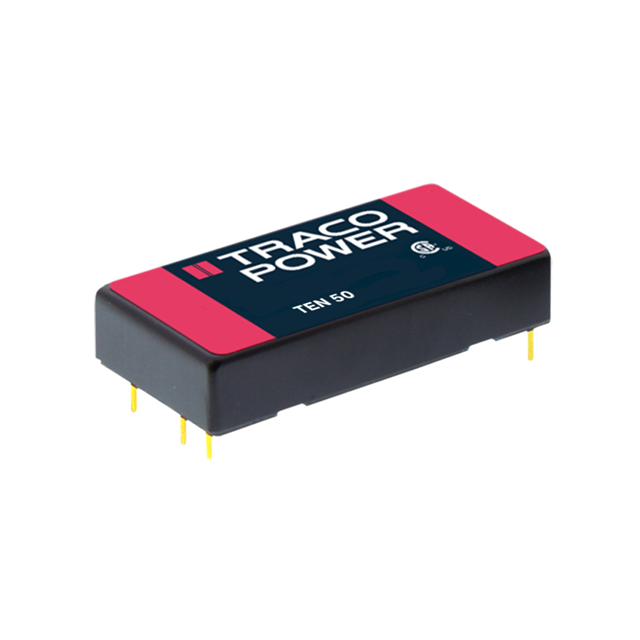

Traco Power TEN 50-2410	1	89 %	3.3 V	ITE (Commercial)	10 A	1.5 kV	33 W	Through Hole	85 °C	-40 °C	36 V	1 "	0.43 in	50.8 mm	25.4 mm	2 in	11 mm	OCP Remote On/Off SCP	Isolated Module	6-DIP Module	18 V	Module
Traco Power TEN 50-1211	1	90 %	5 V	ITE (Commercial)	10 A	1.5 kV	50 W	Through Hole	85 °C	-40 °C	18 V	1 "	0.43 in	50.8 mm	25.4 mm	2 in	11 mm	OCP Remote On/Off SCP	Isolated Module	6-DIP Module	9 V	Module
Traco Power TEN 50-1210	1	89 %	3.3 V	ITE (Commercial)	10 A	1.5 kV	33 W	Through Hole	85 °C	-40 °C	18 V	1 "	0.43 in	50.8 mm	25.4 mm	2 in	11 mm	OCP Remote On/Off SCP	Isolated Module	6-DIP Module	9 V	Module
Traco Power TEN 50-1215	1	91 %	24 V	ITE (Commercial)	2.08 A	1.5 kV	50 W	Through Hole	85 °C	-40 °C	18 V	1 "	0.43 in	50.8 mm	25.4 mm	2 in	11 mm	OCP Remote On/Off SCP	Isolated Module	6-DIP Module	9 V	Module
Traco Power TEN 50-4811WI	1	91 %	5 V	ITE (Commercial)	10 A	1.5 kV	50 W	Through Hole	80 ¯C	-40 °C	75 V	1 "	0.43 in	50.8 mm	25.4 mm	2 in	11 mm	OCP OTP Remote On/Off SCP	Isolated Module	6-DIP Module	18 V	Module

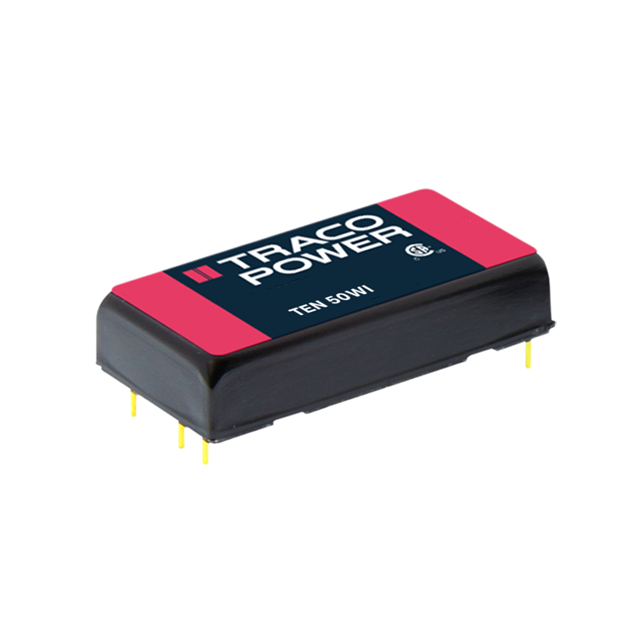

Traco Power TEN 50-4810WI	1	90 %	3.3 V	ITE (Commercial)	10 A	1.5 kV	33 W	Through Hole	80 ¯C	-40 °C	75 V	1 "	0.43 in	50.8 mm	25.4 mm	2 in	11 mm	OCP OTP Remote On/Off SCP	Isolated Module	6-DIP Module	18 V	Module
