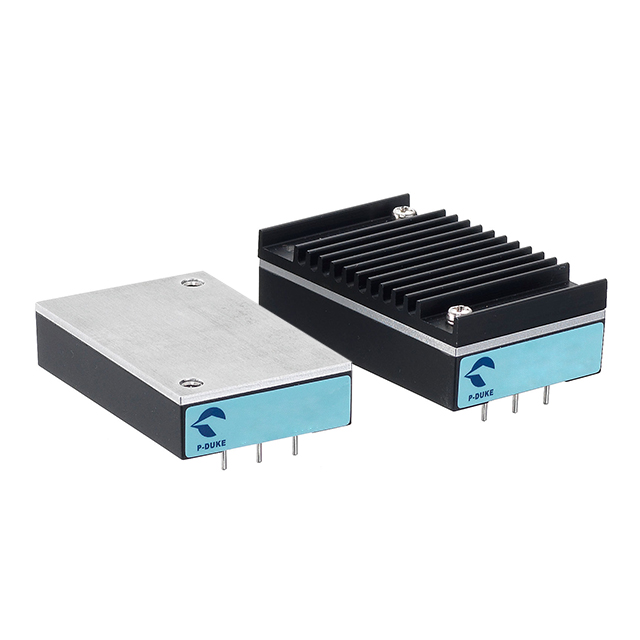

QAE150 Series

Catalog

DC DC CONVERTER 24V 120W

Part	Voltage - Input (Min) [Min]	Approval Agency	Power (Watts)	Package / Case	Features	Mounting Type	Current - Output (Max)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Control Features	Type	Supplier Device Package	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Output 1	Standard Number	Applications	Current - Output (Max) [Max]
P-DUKE Technology QAE150-24S24W	8.5 V	CB CE cURus	120 W	Quarter Brick	Adjustable Output Baseplate Remote On/Off Remote Sense Standby Output	Through Hole	5 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Active Low Enable	Isolated Module	Quarter Brick	1	36 V	2250 VDC	105 C	-40 °C	88 %	24 V	62368-1	ITE (Commercial)
P-DUKE Technology QAE150-110S15W	40 V	CB CE cURus	129 W	Quarter Brick	Adjustable Output Baseplate Remote On/Off Remote Sense Standby Output	Through Hole		57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Active Low Enable	Isolated Module	Quarter Brick	1	160 V	3000 V	105 C	-40 °C	89 %	15 V	62368-1	ITE (Commercial)	8.6 A
P-DUKE Technology QAE150-110S24W	40 V	CB CE cURus	132 W	Quarter Brick	Adjustable Output Baseplate Remote On/Off Remote Sense Standby Output	Through Hole		57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Active Low Enable	Isolated Module	Quarter Brick	1	160 V	3000 V	105 C	-40 °C	89 %	24 V	62368-1	ITE (Commercial)	5.5 A
P-DUKE Technology QAE150-48S48	33 V	CB CE cURus	144 W	Quarter Brick	Adjustable Output Baseplate Remote On/Off Remote Sense Standby Output	Through Hole		57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Active Low Enable	Isolated Module	Quarter Brick	1	75 V	2250 VDC	105 C	-40 °C	92 %	48 V	62368-1	ITE (Commercial)	3 A
