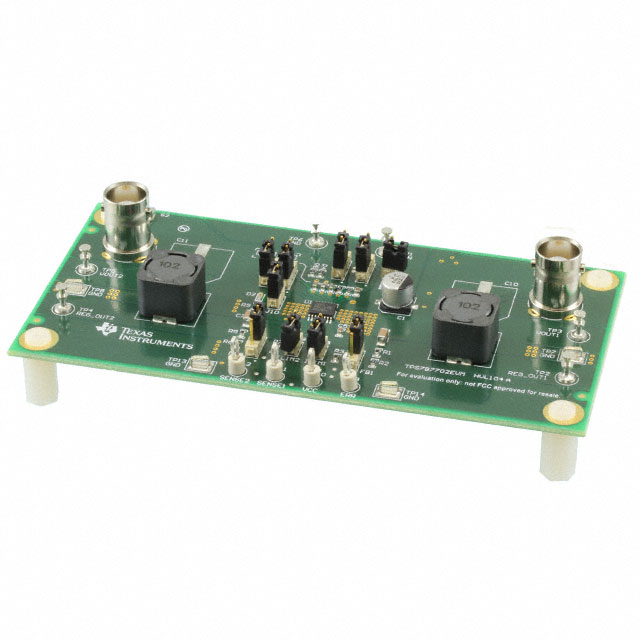

TPS7B7702-Q1 Series
Automotive 300-mA, off-battery (40-V), dual-channel adjustable antenna low-dropout voltage regulator
Manufacturer: Texas Instruments
Catalog
Automotive 300-mA, off-battery (40-V), dual-channel adjustable antenna low-dropout voltage regulator
Key Features
• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification 2Device CDM ESD Classification C4BSingle and Dual-Channel LDO With Current Sense and Adjustable Current-Limit4.5-V to 40-V Wide Input Voltage Range, 45-V Load DumpPower Switch Mode When Tying FB to GND1.5-V to 20-V Adjustable Output VoltageUp to 300-mA Output Current per ChannelAdjustable Current-Limit With External ResistorHigh Accuracy Current-Sense to Detect Antenna Open Condition at Low Current Without Further CalibrationHigh Power-Supply Rejection Ratio: Typical 73 dB at 100 HzIntegrated Reverse-Polarity Protection, Down to –40 V and No Need for External Diode500-mV Max Dropout Voltage at 100-mA LoadStable With Output Capacitor in 2.2-µF to 100-µF Range (ESR 1 mΩ to 5 Ω)Integrated Protection and DiagnosticsThermal ShutdownUndervoltage Lockout (UVLO)Short-Circuit ProtectionReverse Battery Polarity ProtectionReverse-Current ProtectionOutput Short-to-Battery ProtectionOutput Inductive Load ClampMultiplexing Current Sense Between Channels and DevicesAbility to Distinguish All Faults With Current Sense16-Pin HTSSOP PowerPAD™ PackageQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification 2Device CDM ESD Classification C4BSingle and Dual-Channel LDO With Current Sense and Adjustable Current-Limit4.5-V to 40-V Wide Input Voltage Range, 45-V Load DumpPower Switch Mode When Tying FB to GND1.5-V to 20-V Adjustable Output VoltageUp to 300-mA Output Current per ChannelAdjustable Current-Limit With External ResistorHigh Accuracy Current-Sense to Detect Antenna Open Condition at Low Current Without Further CalibrationHigh Power-Supply Rejection Ratio: Typical 73 dB at 100 HzIntegrated Reverse-Polarity Protection, Down to –40 V and No Need for External Diode500-mV Max Dropout Voltage at 100-mA LoadStable With Output Capacitor in 2.2-µF to 100-µF Range (ESR 1 mΩ to 5 Ω)Integrated Protection and DiagnosticsThermal ShutdownUndervoltage Lockout (UVLO)Short-Circuit ProtectionReverse Battery Polarity ProtectionReverse-Current ProtectionOutput Short-to-Battery ProtectionOutput Inductive Load ClampMultiplexing Current Sense Between Channels and DevicesAbility to Distinguish All Faults With Current Sense16-Pin HTSSOP PowerPAD™ Package
Description
AI
The TPS7B770x-Q1 family of devices feature a single and dual, high-voltage low-dropout regulator (LDO) with current sensing, designed to operate with a wide input-voltage range from 4.5 V to 40 V (45-V load dump protection). These devices provide power to the low-noise amplifiers of the active antenna through a coax cable with 300 mA per channel current. Each channel also provides an adjustable output voltage from 1.5 V to 20 V.
These devices provide diagnostics through the current sense and error pins. To monitor the load current, a high-side current-sense circuitry provides a proportional analog output to the sensed load current. The accurate current sense allows detection of open, normal, and short-circuit conditions without the need for further calibration. Current sense can be multiplexed between channels and devices to save analog-to-digital converter (ADC) resources. Each channel also implements adjustable current limit with an external resistor.
An integrated reverse polarity diode eliminates the need for an external diode. These devices feature standard thermal shutdown, short-to-battery protection on the output, and reverse current protection. Each channel has internal inductive clamp protection on the output during inductive switch off.
These devices operate over a –40°C to +125°C ambient temperature range.
The TPS7B770x-Q1 family of devices feature a single and dual, high-voltage low-dropout regulator (LDO) with current sensing, designed to operate with a wide input-voltage range from 4.5 V to 40 V (45-V load dump protection). These devices provide power to the low-noise amplifiers of the active antenna through a coax cable with 300 mA per channel current. Each channel also provides an adjustable output voltage from 1.5 V to 20 V.
These devices provide diagnostics through the current sense and error pins. To monitor the load current, a high-side current-sense circuitry provides a proportional analog output to the sensed load current. The accurate current sense allows detection of open, normal, and short-circuit conditions without the need for further calibration. Current sense can be multiplexed between channels and devices to save analog-to-digital converter (ADC) resources. Each channel also implements adjustable current limit with an external resistor.
An integrated reverse polarity diode eliminates the need for an external diode. These devices feature standard thermal shutdown, short-to-battery protection on the output, and reverse current protection. Each channel has internal inductive clamp protection on the output during inductive switch off.
These devices operate over a –40°C to +125°C ambient temperature range.
