E2033S Series

Catalog

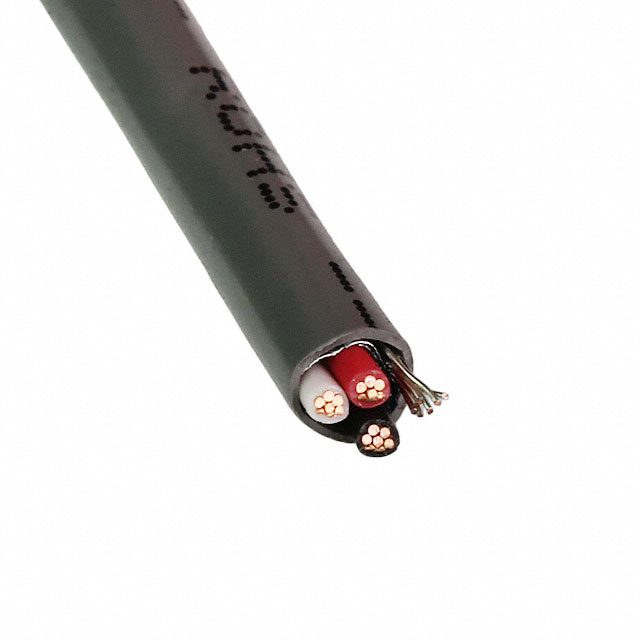

CABLE 3COND 18AWG GRAY SHLD

Part	Features	Length	Length	Number of Conductors	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Shield Type	Jacket Color	Usage	Cable Type	Jacket (Insulation) Material	Conductor Insulation	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Length [x]	Length [x]	Conductor Material
Prysmian Group E2033S.30.10	Drain Wire Rip Cord	304.8 m	1000 ft	3	300 VDC	4.27 mm	0.168 in	18 AWG	Foil	Gray	Alarm Security Sound	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Flexfoil®	26 AWG	7	100 %	0.381 mm	0.015 in	100 ft	30.5 m	Copper Bare
Prysmian Group E2033S.46.10	Drain Wire Rip Cord			3	300 VDC	4.27 mm	0.168 in	18 AWG	Foil	Gray	Alarm Security Sound	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)		26 AWG	7		0.381 mm	0.015 in			Copper Bare
Prysmian Group E2033S.41.10	Drain Wire Rip Cord	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	3	300 VDC	4.27 mm	0.168 in	18 AWG	Foil	Gray Yellow	Alarm Security Sound	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)		26 AWG	7		0.381 mm	0.015 in	100 ft	30.5 m	Copper Bare
Prysmian Group E2033S.30.10	Drain Wire Rip Cord	304.8 m	1000 ft	3	300 VDC	4.27 mm	0.168 in	18 AWG	Foil	Gray	Alarm Security Sound	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)		26 AWG	7		0.381 mm	0.015 in	100 ft	30.5 m	Copper Bare
Prysmian Group E2033S.46.10	Drain Wire Rip Cord			3	300 VDC	4.27 mm	0.168 in	18 AWG	Foil	Gray	Alarm Security Sound	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Flexfoil®	26 AWG	7	100 %	0.381 mm	0.015 in			Copper Bare
Prysmian Group E2033S.41.10	Drain Wire Rip Cord	15.24 m 304.8 m	50 ft 1000 ft	3	300 VDC	4.27 mm	0.168 in	18 AWG	Foil	Gray	Alarm Security Sound	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Flexfoil®	26 AWG	7	100 %	0.381 mm	0.015 in			Copper Bare
