HR08D Series

Catalog

CONN PLUG HSNG FMALE 10POS RA

Part	Orientation	Ingress Protection	Insert Material	Mounting Type	Housing Color	Material Flammability Rating	Number of Positions	Fastening Type	Note	Features	Shell Finish	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert [custom]	Shell Material	Shielding	Connector Type	Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Contact Finish - Mating	Contact Material	Voltage Rating	Current Rating (Amps)	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Backshell Material, Plating	Primary Material	Color
Hirose Electric Co Ltd HR08D-12WLPK-10SC(31)	Keyed	IP67/IP68	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line) Right Angle	Black Silver	UL94 V-0	10	Push-Twist	Contacts Not Included	Backshell Coupling Nut Rotatable	Nickel	Crimp	85 °C	-20 ░C	12	Aluminum Alloy Zinc Alloy	Unshielded	Plug Housing	For Female Sockets	Circular
Hirose Electric Co Ltd HR08D-12WPB-10SC(31)	Keyed	IP67/IP68	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)	Black Silver	UL94 V-0	10	Push-Twist	Contacts Not Included	Backshell Coupling Nut	Nickel	Crimp	85 °C	-20 ░C	12	Aluminum Alloy Zinc Alloy	Unshielded	Plug Housing	For Female Sockets	Circular
Hirose Electric Co Ltd HR08D-12WPM-2S(31)	Keyed	IP67/IP68	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)		UL94 V-0	2	Push-Twist		Backshell Coupling Nut	Nickel		85 °C	-20 ░C	12	Zinc Alloy	Unshielded	Plug Female Sockets			7.87 Áin	0.2 Ám	Industrial	Gold	Phosphor Bronze	200 VAC 250 V	3 A	0.256 in	5.7 mm	0.224 "	6.5 mm	Nylon Polyamide (PA)	Metal	Black Silver

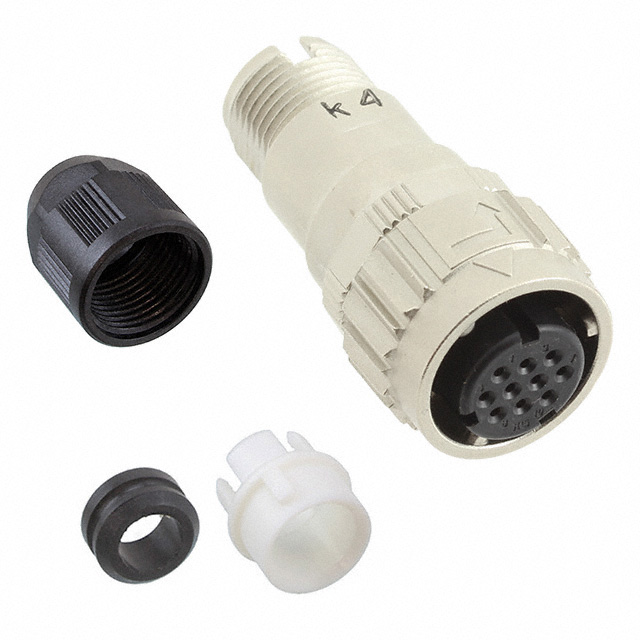

Hirose Electric Co Ltd HR08D-12WPA-10S	Keyed	IP67/IP68	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)		UL94 V-0	10	Push-Twist		Backshell Coupling Nut	Nickel		85 °C	-20 ░C	12	Zinc Alloy	Unshielded	Plug Female Sockets			8 µin	0.203 µm	Industrial	Gold	Phosphor Bronze	200 VAC 250 V	3 A	0.256 in	5.7 mm	0.224 "	6.5 mm	Aluminum Alloy Nickel	Metal	Black Silver
Hirose Electric Co Ltd HR08D-12WPQ-10S(31)	Keyed	IP67/IP68	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)		UL94 V-0	10	Push-Twist		Backshell Coupling Nut	Nickel		85 °C	-20 ░C	12	Zinc Alloy	Unshielded	Plug Female Sockets			7.87 Áin	0.2 Ám	Industrial	Gold	Phosphor Bronze	200 VAC 250 V	3 A						Metal	Black Silver

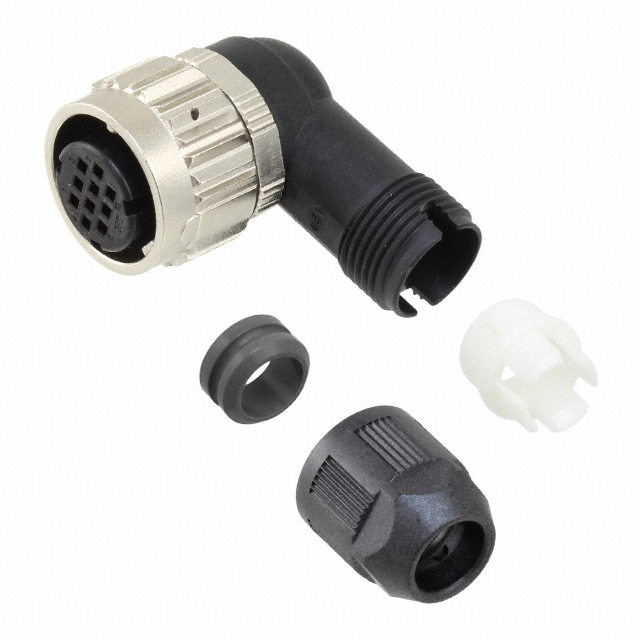

Hirose Electric Co Ltd HR08D-12WLPN-10SC	Keyed	IP67/IP68	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line) Right Angle	Black Silver	UL94 V-0	10	Push-Twist	Contacts Not Included	Backshell Coupling Nut Rotatable	Nickel	Crimp	85 °C	-20 ░C	12	Aluminum Alloy Zinc Alloy	Unshielded	Plug Housing	For Female Sockets	Circular
Hirose Electric Co Ltd HR08D-12WLPB-2S
Hirose Electric Co Ltd HR08D-12WLPM-2S(31)	Keyed	IP67/IP68	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line) Right Angle		UL94 V-0	2	Push-Twist		Backshell Coupling Nut Rotatable	Nickel		85 °C	-20 ░C	12	Zinc Alloy	Unshielded	Plug Female Sockets			7.87 Áin	0.2 Ám	Industrial	Gold	Phosphor Bronze	200 VAC 250 V	3 A	0.256 in	5.7 mm	0.224 "	6.5 mm	Nylon Polyamide (PA)	Metal	Black Silver

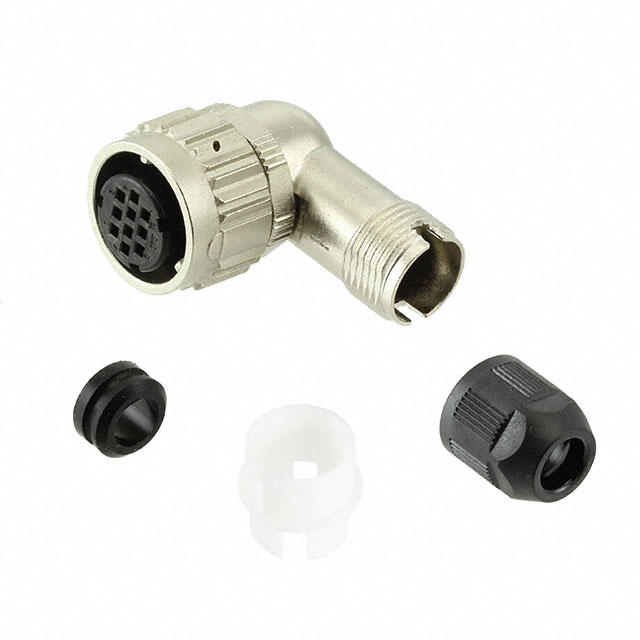

Hirose Electric Co Ltd HR08D-12WLPA-10SC	Keyed	IP67/IP68	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line) Right Angle	Black Silver	UL94 V-0	10	Push-Twist	Contacts Not Included	Backshell Coupling Nut Rotatable	Nickel	Crimp	85 °C	-20 ░C	12	Aluminum Alloy Zinc Alloy	Unshielded	Plug Housing	For Female Sockets	Circular
Hirose Electric Co Ltd HR08D-12WPB-2S	Keyed	IP67/IP68	Polyphenylene Sulfide (PPS)	Free Hanging (In-Line)		UL94 V-0	2	Push-Twist		Backshell Coupling Nut	Nickel		85 °C	-20 ░C	12	Zinc Alloy	Unshielded	Plug Female Sockets			8 µin	0.203 µm	Industrial	Gold	Phosphor Bronze	200 VAC 250 V	3 A	0.287 " 7.3 mm		0.256 in 6.5 mm		Aluminum Alloy Nickel	Metal	Black Silver
