BG0703 Series

Catalog

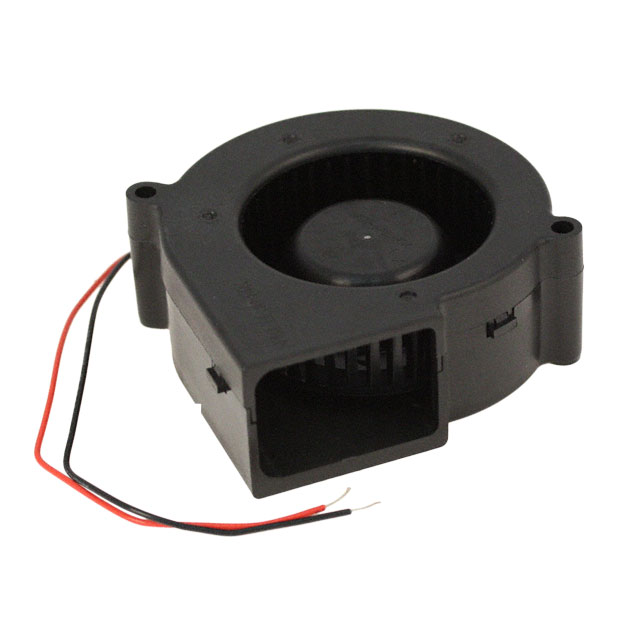

FAN BLOWER 75X30MM 24VDC WIRE

Part	Material - Frame	Material - Blade	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Width [y]	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	RPM	Approval Agency	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Voltage - Rated	Fan Type	Termination	Air Flow	Air Flow	Power (Watts)	Bearing Type	Noise	Size / Dimension [y]	Features
NMB TECHNOLOGIES BG0703-B054-000-00	Plastic	Plastic	150 mA	26 VDC	10 VDC	30 mm	Square/Rounded	75 mm	75 mm	3000 RPM	CE CSA UL VDE	110 Pa	0.441 in H2O	70 °C	-10 °C	0.198 lb	89.81 g	24 VDC	Blower	2 Wire Leads	10.6 CFM	0.297 m³/min	3.6 W	Ball	38.5 dB
NMB TECHNOLOGIES BG0703-B053-00L-00	Plastic	Plastic	0.09 A	27.6 VDC	10 VDC	30 mm	Square/Rounded	75.7 mm		2550 RPM	CE CSA UL VDE	75 Pa	0.301 in H2O	70 °C	-10 °C	0.198 lb	89.81 g	24 VDC	Blower	3 Wire Leads	8.8 CFM	0.246 m³/min	2.16 W	Ball	34.5 dB(A)	75.7 mm	Locked Rotor Sensor
NMB TECHNOLOGIES BG0703-B043-00S-00	Plastic	Plastic	0.18 A	13.8 VDC	6 VDC	30 mm	Square/Rounded	75.7 mm		2550 RPM	CE CSA UL VDE	75 Pa	0.301 in H2O	70 °C	-10 °C	0.198 lb	89.81 g	12 VDC	Blower	3 Wire Leads	8.8 CFM	0.246 m³/min	2.16 W	Ball	34.5 dB(A)	75.7 mm	Speed Sensor (Tach)
NMB TECHNOLOGIES BG0703-B041-00L-00	Plastic	Plastic	100 mA	13.8 VDC	6 VDC	30 mm	Square/Rounded	75.7 mm		2000 RPM	CE CSA UL VDE	39.8 Pa	0.16 in H2O	70 °C	-10 °C	0.198 lb	89.81 g	12 VDC	Blower	3 Wire Leads	6.7 CFM	0.188 mł/min	1.2 W	Ball	28 dB	75.7 mm	Locked Rotor Sensor
NMB TECHNOLOGIES BG0703-B052-00L-00	Plastic	Plastic	70 mA	27.6 VDC	10 VDC	30 mm	Square/Rounded	75.7 mm		2200 RPM	CE CSA UL VDE	49.8 Pa	0.2 in H2O	70 °C	-10 °C	0.198 lb	89.81 g	24 VDC	Blower	3 Wire Leads	7.4 CFM	0.207 m³/min	1.68 W	Ball	29.5 dB(A)	75.7 mm	Locked Rotor Sensor
NMB TECHNOLOGIES BG0703-B044-00S-00	Plastic	Plastic	0.29 A	13 V	6 VDC	30 mm	Square/Rounded	75.7 mm		3000 RPM	CE CSA UL VDE	110 Pa	0.441 in H2O	70 °C	-10 °C	0.198 lb	89.81 g	12 VDC	Blower	3 Wire Leads	10.6 CFM	0.297 m³/min	3.48 W	Ball	38.5 dB	75.7 mm	Speed Sensor (Tach)
NMB TECHNOLOGIES BG0703-B052-00S-00	Plastic	Plastic	70 mA	27.6 VDC	10 VDC	30 mm	Square/Rounded	75.7 mm		2200 RPM	CE CSA UL VDE	49.8 Pa	0.2 in H2O	70 °C	-10 °C	0.198 lb	89.81 g	24 VDC	Blower	3 Wire Leads	7.4 CFM	0.207 m³/min	1.68 W	Ball	29.5 dB(A)	75.7 mm	Speed Sensor (Tach)
NMB TECHNOLOGIES BG0703-B042-00S-00	Plastic	Plastic	120 mA	13.8 VDC	6 VDC	30 mm	Square/Rounded	75.7 mm		2200 RPM	CE CSA UL VDE	49.8 Pa	0.2 in H2O	70 °C	-10 °C	0.198 lb	89.81 g	12 VDC	Blower	3 Wire Leads	7.4 CFM	0.207 m³/min	1.44 W	Ball	29.5 dB(A)	75.7 mm	Speed Sensor (Tach)
NMB TECHNOLOGIES BG0703-B041-00S-00	Plastic	Plastic	100 mA	13.8 VDC	6 VDC	30 mm	Square/Rounded	75.7 mm		2000 RPM	CE CSA UL VDE	39.8 Pa	0.16 in H2O	70 °C	-10 °C	0.198 lb	89.81 g	12 VDC	Blower	3 Wire Leads	6.7 CFM	0.188 mł/min	1.2 W	Ball	28 dB	75.7 mm	Speed Sensor (Tach)
NMB TECHNOLOGIES BG0703-B051-00L-00	Plastic	Plastic	60 mA	27.6 VDC	10 VDC	30 mm	Square/Rounded	75.7 mm		2000 RPM	CE CSA UL VDE	39.8 Pa	0.16 in H2O	70 °C	-10 °C	0.198 lb	89.81 g	24 VDC	Blower	3 Wire Leads	6.7 CFM	0.188 mł/min	1.44 W	Ball	28 dB	75.7 mm	Locked Rotor Sensor
