HR25A Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT MALE 12POS GOLD SOLDER
| Part | Voltage Rating | Orientation | Mounting Feature | Contact Material | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Shell Size - Insert | Connector Type | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Contact Finish - Mating | Color | Number of Positions | Shell Material | Applications | Insert Material | Material Flammability Rating | Mounting Type | Backshell Material, Plating | Features | Note | Contact Type | Housing Color | Shielding | Type | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

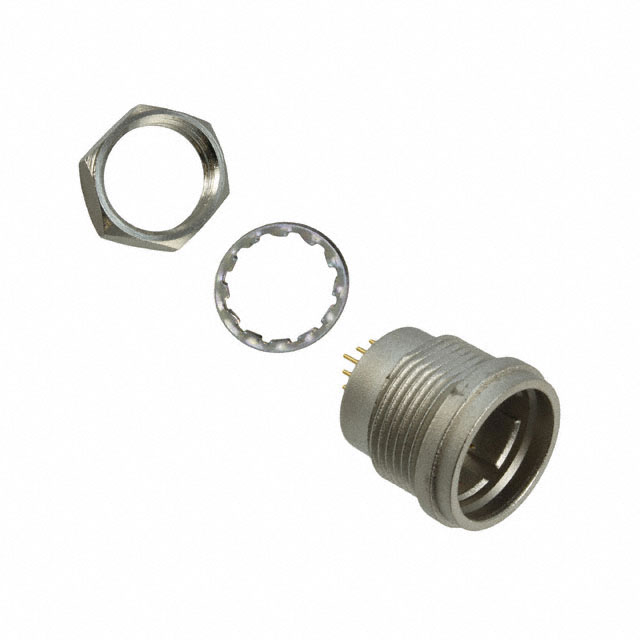

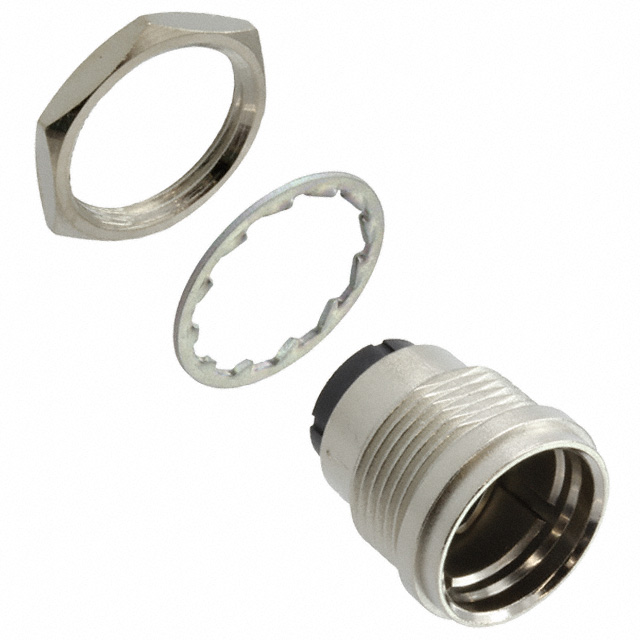

 Hirose Electric Co Ltd | 30 VAC 42 VDC | Keyed | Bulkhead - Rear Side Nut | Phosphor Bronze | Metal | 85 °C | -25 °C | Nickel | 9 | Receptacle Male Pins | Push-Pull | 8 µin | 0.203 µm | Solder | Gold | Silver | 12 | Zinc Alloy | Industrial | Polyphenylene Sulfide (PPS) | UL94 V-0 | Panel Mount Through Hole | ||||||||

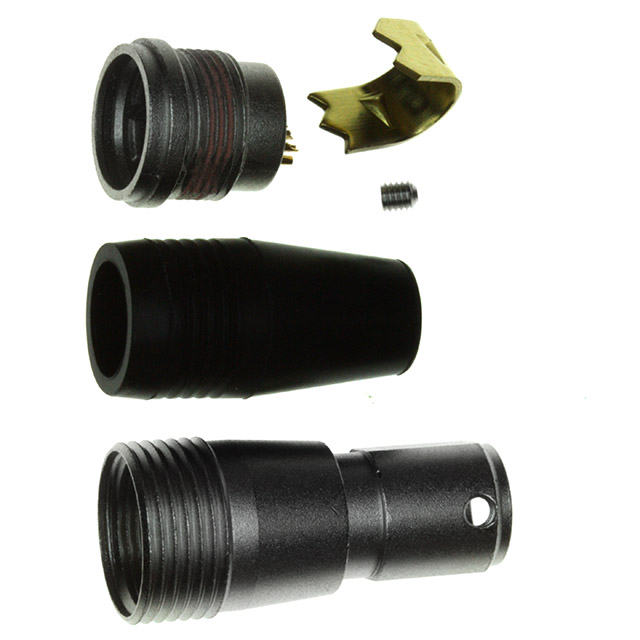

 Hirose Electric Co Ltd | 30 VAC 42 VDC | Keyed | Phosphor Bronze | Metal | 85 °C | -25 °C | Nickel | 9 | Jack Male Pins | Push-Pull | 8 µin | 0.203 µm | Gold | Black Silver | 20 | Zinc Alloy | Industrial | Polyphenylene Sulfide (PPS) | UL94 V-0 | Free Hanging (In-Line) | Brass Nickel | Backshell Clamp Strain Relief | ||||||||

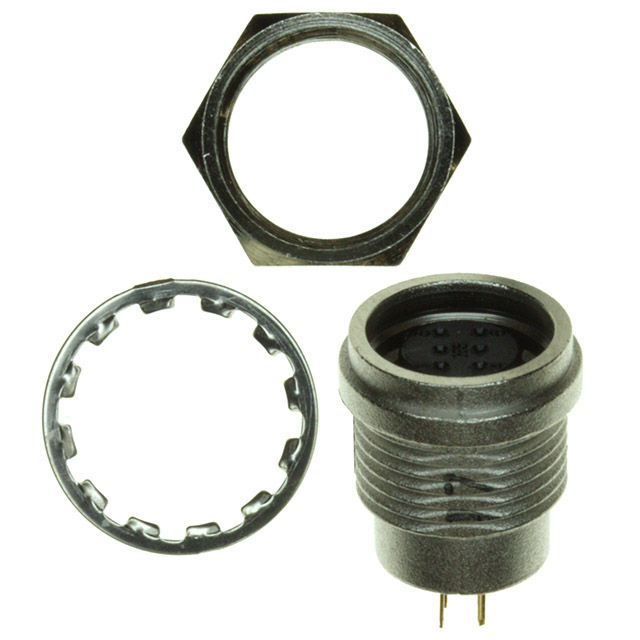

 Hirose Electric Co Ltd | 30 VAC 42 VDC | Keyed | Bulkhead - Rear Side Nut | Phosphor Bronze | Metal | 85 °C | -25 °C | Nickel | 7 | Receptacle Female Sockets | Push-Pull | 8 µin | 0.203 µm | Solder | Gold | Silver | 6 | Zinc Alloy | Industrial | Polyphenylene Sulfide (PPS) | UL94 V-0 | Panel Mount Through Hole | ||||||||

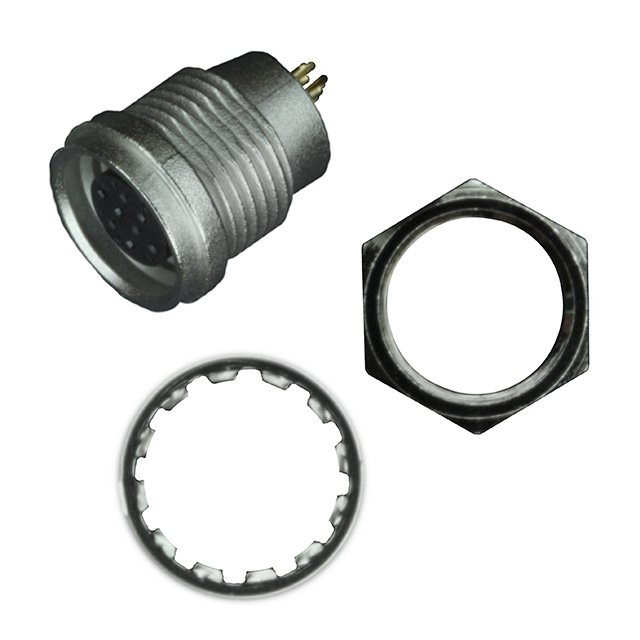

 Hirose Electric Co Ltd | 30 VAC 42 VDC | Keyed | Bulkhead - Rear Side Nut | Phosphor Bronze | Metal | 85 °C | -25 °C | Nickel | 7 | Receptacle Female Sockets | Push-Pull | 8 µin | 0.203 µm | Gold | Silver | 8 | Zinc Alloy | Industrial | Polyphenylene Sulfide (PPS) | UL94 V-0 | Panel Mount | |||||||||

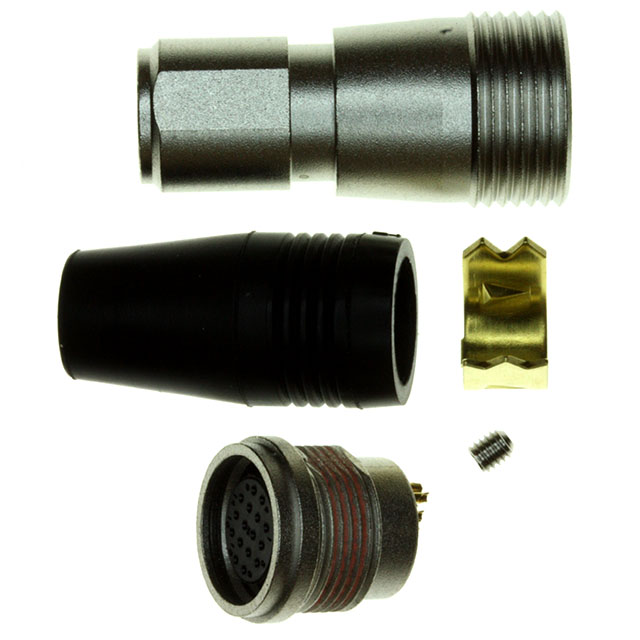

 Hirose Electric Co Ltd | 30 VAC 42 VDC | Keyed | Phosphor Bronze | Metal | 85 °C | -25 °C | Nickel | 9 | Jack Female Sockets | Push-Pull | 8 µin | 0.203 µm | Gold | Black Silver | 20 | Zinc Alloy | Industrial | Polyphenylene Sulfide (PPS) | UL94 V-0 | Free Hanging (In-Line) | Brass Nickel | Backshell Clamp Strain Relief | ||||||||

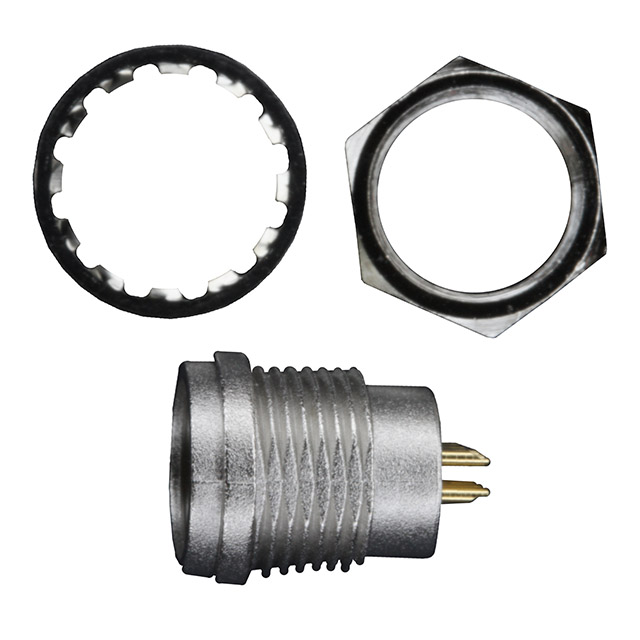

 Hirose Electric Co Ltd | 30 VAC 42 VDC | Keyed | Bulkhead - Rear Side Nut | Phosphor Bronze | Metal | 85 °C | -25 °C | Nickel | 7 | Receptacle Male Pins | Push-Pull | 8 µin | 0.203 µm | Gold | Silver | 6 | Zinc Alloy | Industrial | Polyphenylene Sulfide (PPS) | UL94 V-0 | Panel Mount | |||||||||

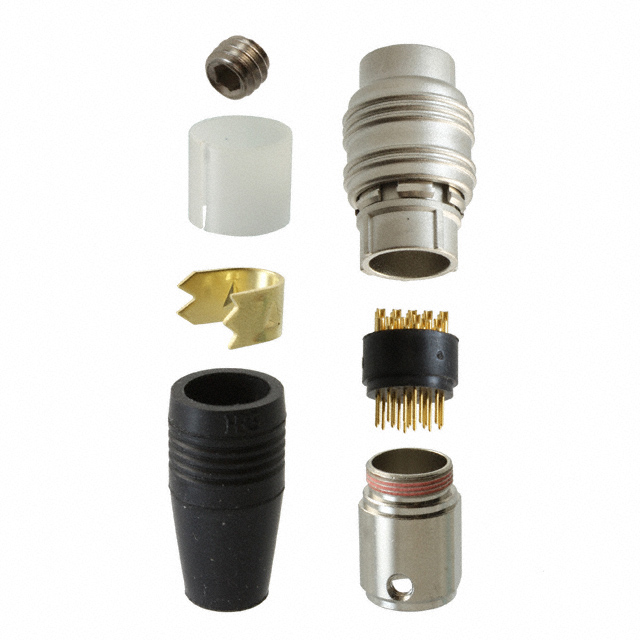

 Hirose Electric Co Ltd | 30 VAC 42 VDC | Keyed | Phosphor Bronze | Metal | 85 °C | -25 °C | Nickel | 9 | Plug Male Pins | Push-Pull | 8 µin | 0.203 µm | Gold | Black Silver | 20 | Zinc Alloy | Industrial | Polyphenylene Sulfide (PPS) | UL94 V-0 | Free Hanging (In-Line) | Brass Nickel | Backshell Clamp Strain Relief | ||||||||

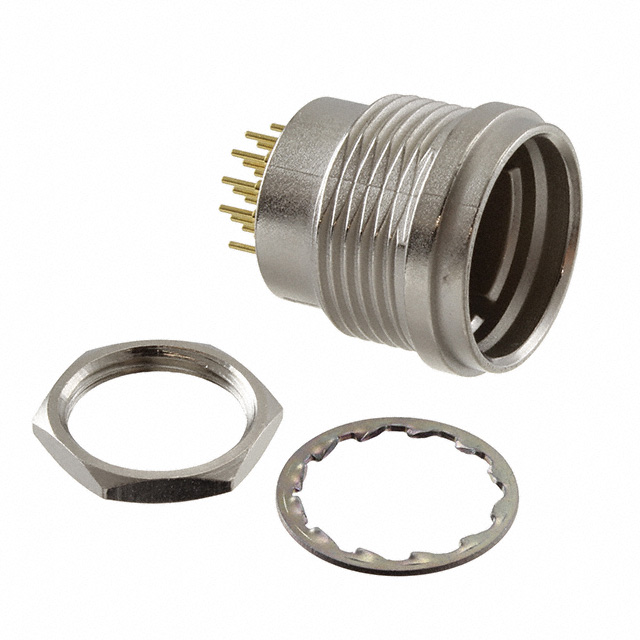

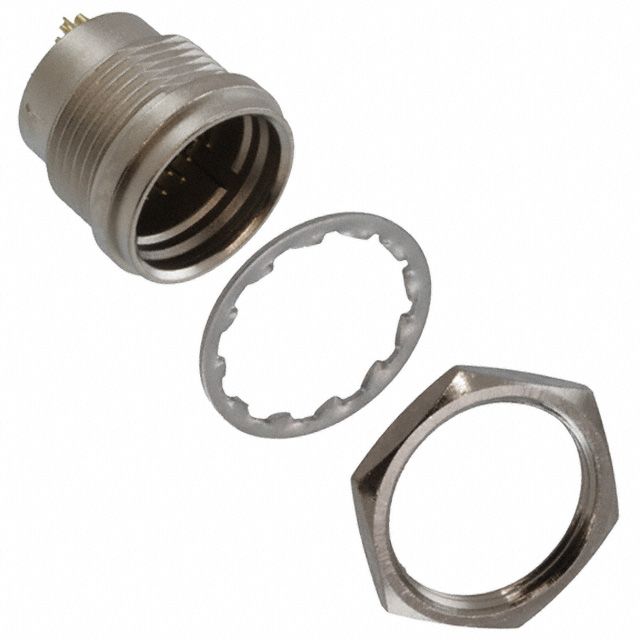

 Hirose Electric Co Ltd | 30 VAC 42 VDC | Keyed | Bulkhead - Rear Side Nut | Phosphor Bronze | Metal | 85 °C | -25 °C | Nickel | 9 | Receptacle Male Pins | Push-Pull | 8 µin | 0.203 µm | Gold | Silver | 20 | Zinc Alloy | Industrial | Polyphenylene Sulfide (PPS) | UL94 V-0 | Panel Mount | |||||||||

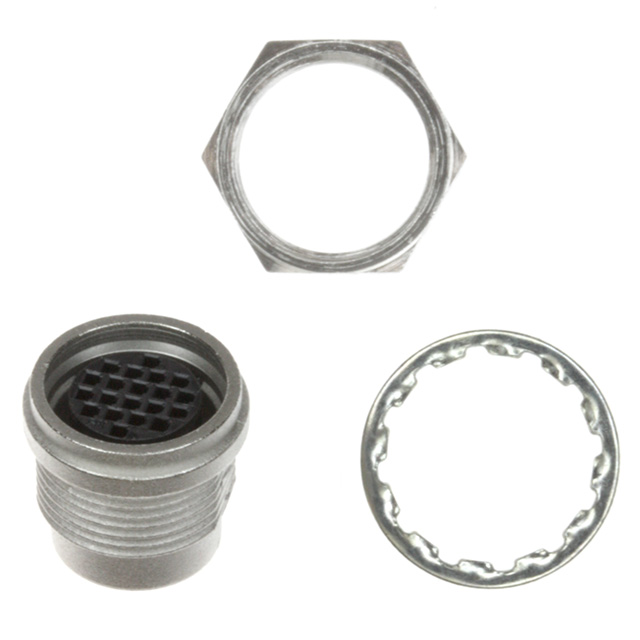

 Hirose Electric Co Ltd | Keyed | Bulkhead - Rear Side Nut | 85 °C | -25 °C | Nickel | 9 | Receptacle Housing | Push-Pull | 20 | Zinc Alloy | Polyphenylene Sulfide (PPS) | UL94 V-0 | Panel Mount | Contacts Not Included | Crimp | Silver | Unshielded | For Female Sockets | Circular | |||||||||||

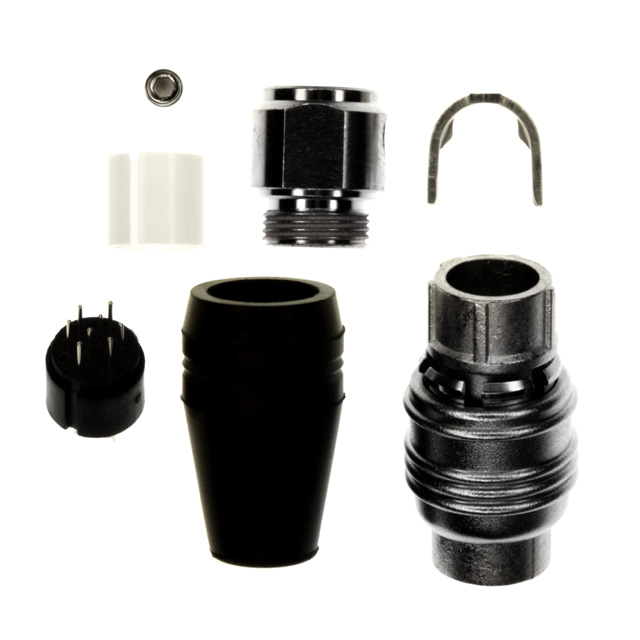

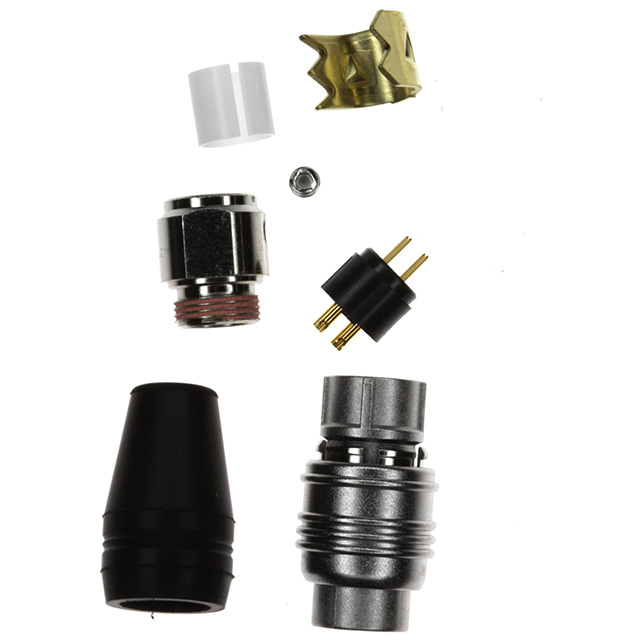

 Hirose Electric Co Ltd | 30 VAC 42 VDC | Keyed | Phosphor Bronze | Metal | 85 °C | -25 °C | Nickel | 7 | Plug Male Pins | Push-Pull | 8 µin | 0.203 µm | Gold | Black Silver | 4 | Zinc Alloy | Industrial | Polyphenylene Sulfide (PPS) | UL94 V-0 | Free Hanging (In-Line) | Brass Nickel | Backshell Clamp Strain Relief |
