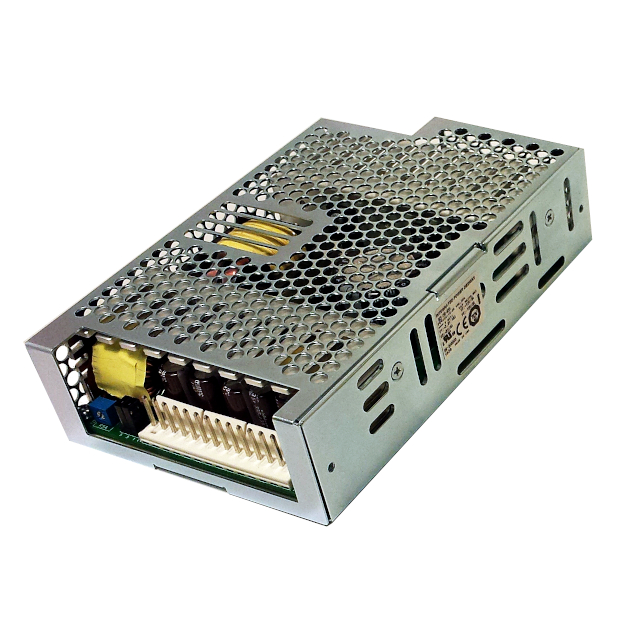

1010839 Series
Manufacturer: Integrated Power Designs
Beta
⌘K
DC/DC CNVT 3.5V 5.2V 12.5V 13.3V
| Part | Power (Watts) | Number of Outputs | Applications | Mounting Type | Standard Number | Current - Output (Max) | Voltage - Output 4 | Voltage - Input (Max) [Max] | Voltage - Output 2 | Voltage - Output 3 | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Output 1 | Voltage - Input (Min) [Min] | Approval Agency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | 134 W | 4 | ITE (Commercial) Medical | Chassis Mount | 60601-1; 62368-1 | 1 A 3 A 9 A 10 A | 13.3 V | 72 V | 5.2 V | 12.5 V | 70 °C | 0 °C | Enclosed | 3.5 V | 36 V | CE cURus TUV UKCA | 100.5 mm | 156.8 mm | 1.48 " | 6.25 " | 37.6 mm | 3.96 in |
