E.FL-R Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

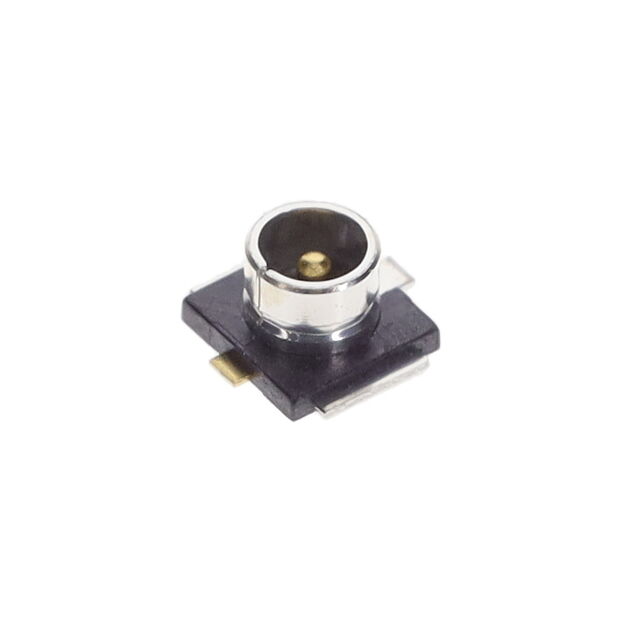

CONN E.FL RCPT SMD STR
| Part | Dielectric Material | Mating Cycles | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Body Finish | Fastening Type | Shield Termination | Number of Ports | Mounting Type | Center Contact Material | Frequency - Max [Max] | Housing Color | Contact Termination | Impedance | Connector Style | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Polybutylene Terephthalate (PBT) | 50 | Gold | 90 °C | -40 C | Phosphor Bronze | Gold | Snap-On | Solder | 1 | Surface Mount | Phosphor Bronze | 2 GHz | Gold | Solder | 50 Ohms | E.FL | Receptacle |
 Hirose Electric Co Ltd | Liquid Crystal Polymer (LCP) | 50 | Gold | 90 °C | -40 C | Phosphor Bronze | Silver | Snap-On | Solder | 1 | Surface Mount | Brass | 2 GHz | Silver | Solder | 50 Ohms | E.FL | Receptacle Male Pin |
