LF10WBPD Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONNECTOR
| Part | Number of Positions | Shell Finish | Connector Type | Primary Material | Voltage Rating | Contact Finish - Mating | Color | Fastening Type | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Current Rating (Amps) | Shielding | Ingress Protection | Shell Size - Insert [custom] | Backshell Material, Plating | Contact Material | Mounting Type | Features | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Shell Material | Cable Opening | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric Co Ltd | |||||||||||||||||||||||||||

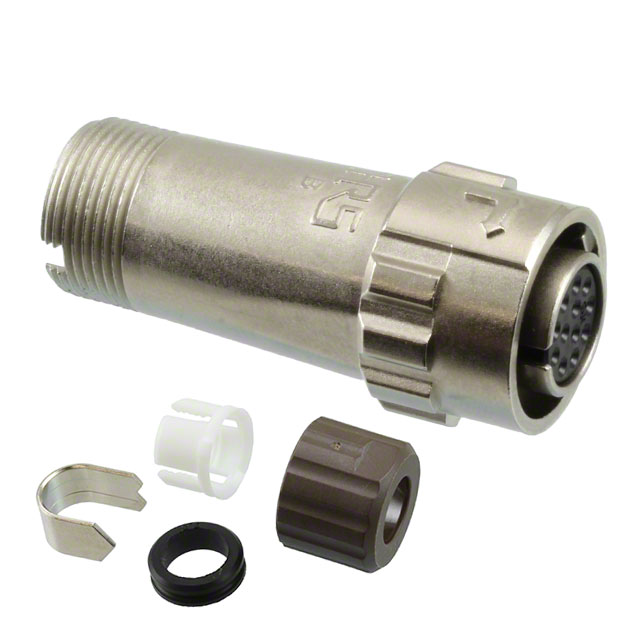

 Hirose Electric Co Ltd | 12 | Nickel | Plug Female Sockets | Metal | 30 VAC 42 VDC | Gold | Brown Silver | Bayonet Lock | Polyphenylene Sulfide (PPS) | 85 °C | -25 °C | Keyed | 2 A | Shielded | IP67/IP68 | 10 | Nickel Zinc Alloy | Phosphor Bronze | Free Hanging (In-Line) | Backshell Clamp Coupling Nut Strain Relief | UL94 V-0 | 8 µin | 0.203 µm | Industrial Telecommunications | Zinc Alloy | ||
Hirose Electric Co Ltd | 12 | Nickel | Plug Male Pins | Metal | 30 VAC 42 VDC | Gold | Brown Silver | Bayonet Lock | Polyphenylene Sulfide (PPS) | 85 °C | -25 °C | Keyed | 2 A | Shielded | IP67/IP68 | 10 | Nickel Zinc Alloy | Copper Alloy | Free Hanging (In-Line) | Backshell Cable Clamp Coupling Nut Strain Relief | UL94 V-0 | Industrial Telecommunications | Zinc Alloy | 0.287 in | 7.3 mm | ||

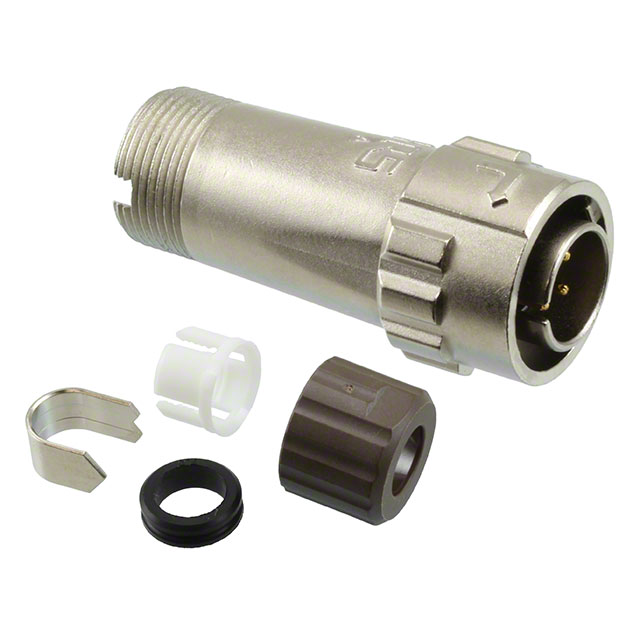

 Hirose Electric Co Ltd | 4 | Nickel | Plug Male Pins | Metal | 125 VAC | Gold | Brown Silver | Bayonet Lock | Polyphenylene Sulfide (PPS) | 85 °C | -25 °C | Keyed | 10 A | Shielded | IP67/IP68 | 10 | Nickel Zinc Alloy | Copper Alloy | Free Hanging (In-Line) | Backshell Cable Clamp Coupling Nut Strain Relief | UL94 V-0 | 7.87 Áin | 0.2 Ám | Industrial Telecommunications | Zinc Alloy | 0.287 in | 7.3 mm |
 Hirose Electric Co Ltd | 4 | Nickel | Plug Male Pins | Metal | 125 VAC | Gold | Brown Silver | Bayonet Lock | Polyphenylene Sulfide (PPS) | 85 °C | -25 °C | Keyed | 10 A | Shielded | IP67/IP68 | 10 | Nickel Zinc Alloy | Copper Alloy | Free Hanging (In-Line) | Backshell Clamp Coupling Nut Strain Relief | UL94 V-0 | 8 µin | 0.203 µm | Industrial Telecommunications | Zinc Alloy |
