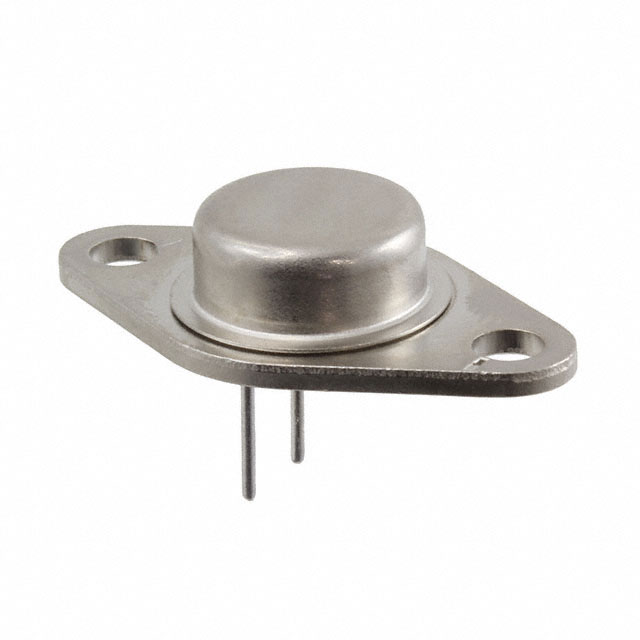

2N6317-Transistor Series

Catalog

POWER BJT TO-66 ROHS COMPLIANT: YES

Part	Voltage - Collector Emitter Breakdown (Max)	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Package / Case	Vce Saturation (Max) @ Ib, Ic	Mounting Type	Transistor Type	Current - Collector (Ic) (Max) [Max]
Microchip Technology 2N6317	60 V	500 çA	90 W	25 hFE	TO-213AA TO-66-2	2 V	Through Hole	PNP	7 A

Catalog

Key Features

- Hermetically sealed

- Complimentary pairing with the NPN 2N6315 and 2N6316

- RoHS compliant versions available

- Convenient package

- Mechanically rugged

- Commercial, industrial, and military uses.

Description

This family of 2N6317 and 2N6318 PNP Transistors are an excellent choice for un-tuned amplifier applications. They are also ideal for general purpose power switch and amplifier applications. Microchip also offers numerous other products to meet higher and lower power voltage regulation applications.
