GSID150 Series

Manufacturer: SemiQ

Catalog

IGBT MOD 1200V 285A 1087W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Mounting Type	Configuration	Input	NTC Thermistor	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Input Capacitance (Cies) @ Vce	Package / Case	Vce(on) (Max) @ Vge, Ic [Max]

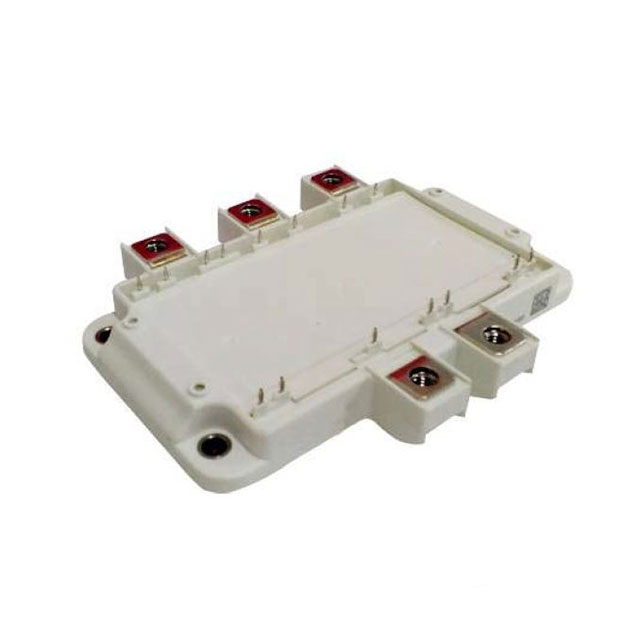

SemiQ GSID150A120S5C1	-40 °C	150 °C	285 A	2.1 V	Chassis Mount	Three Phase Inverter	Standard		1 mA	1087 W	Module	1200 V	21.2 nF	Module

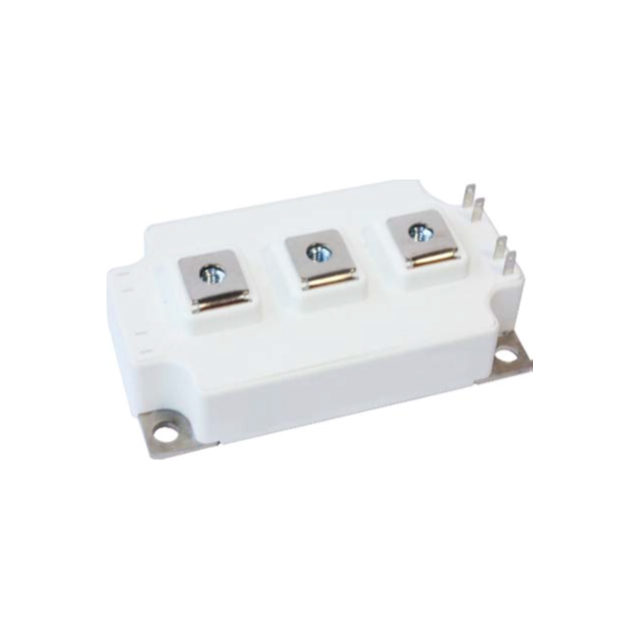

SemiQ GSID150A120S3B1	-40 C	150 °C			Chassis Mount	2 Independent	Standard		1 mA	940 W	D3	1200 V	14 nF	D-3 Module	2 V
