MIC4608 Series

Catalog

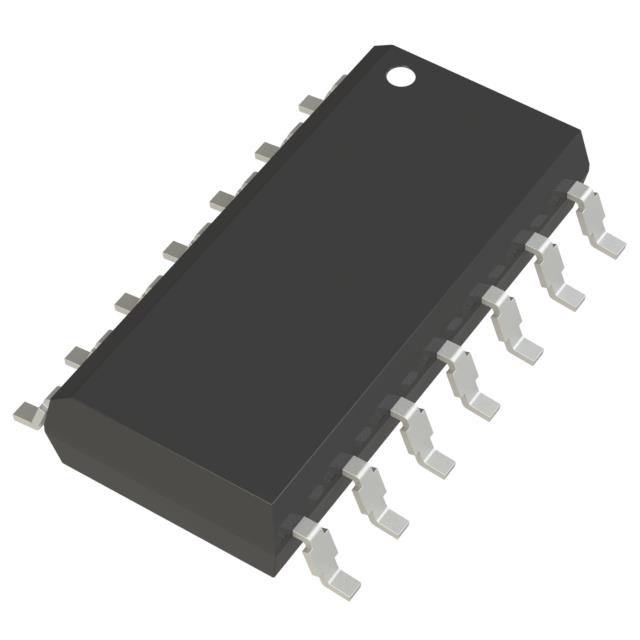

IC GATE DRVR HALF-BRIDGE 14SOIC

Part	Gate Type	Channel Type	Package Width	Package Name	Package Length	Mounting Type	Driven Configuration	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Input Type	Logic Voltage - VIL	Logic Voltage - VIH	High Side Voltage - Max (Bootstrap)	Rise Time (Typ)	Fall Time (Typ)	Current - Peak Output (Sink)	Current - Peak Output (Source)	Number of Drivers	Gate Channel
Microchip Technology MIC4608YM-T5	IGBT MOSFET N-Channel MOSFET	Independent	3.9 mm	14-SOIC	0.154 in	Surface Mount	Half-Bridge	125 °C	-40 °C	10 VDC	20 V	Non-Inverting	0.8 V	2.2 V	600 V	31 ns	31 ns	1 A	1 A	2	N-Channel
Microchip Technology MIC4608YM	IGBT MOSFET N-Channel MOSFET	Independent	3.9 mm	14-SOIC	0.154 in	Surface Mount	Half-Bridge	125 °C	-40 °C	10 VDC	20 V	Non-Inverting	0.8 V	2.2 V	600 V	31 ns	31 ns	1 A	1 A	2	N-Channel
Microchip Technology MIC4608YM-TR	IGBT MOSFET N-Channel MOSFET	Independent	3.9 mm	14-SOIC	0.154 in	Surface Mount	Half-Bridge	125 °C	-40 °C	10 VDC	20 V	Non-Inverting	0.8 V	2.2 V	600 V	31 ns	31 ns	1 A	1 A	2	N-Channel
